• Model NO.：M, PG, NPT, G
• Claw：PA
• Sealing and Sealing Ring：NBR
• Advantage：Free Samples; Special Customized
• Transport Package：Standard Export Package
• Specification：36*26*19
• Trademark：Jixiang
• Origin：Zhejiang
• HS Code：8547901000
• Production Capacity：1000000piece,Year

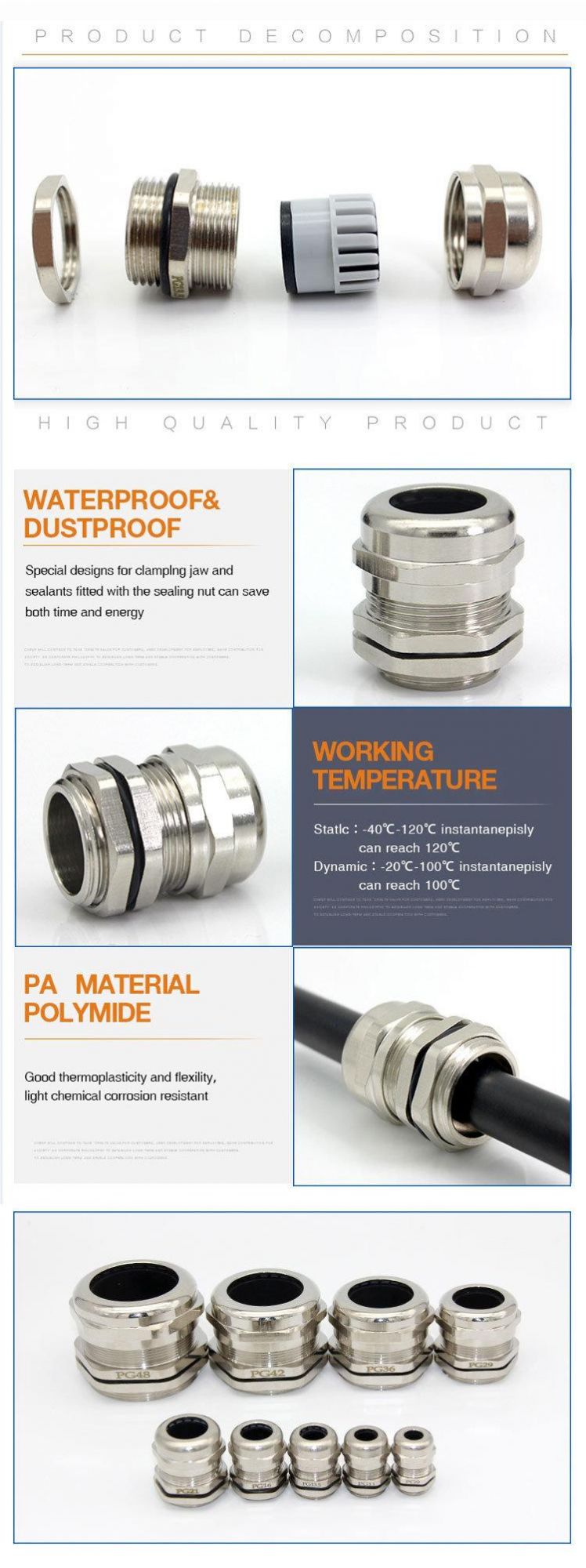

Thread Specification:Metric ThreadMaterial:The joint body parts are made of brass, the clamping part is made of plastic(PA), and the seals and O-ring are made of nitrile rubber (NBR).
 Certificates:CE,IP68,ISO9001,TUVProtection Degree:In the specific cable range, the using of O-ring helps tighten head so that to reach IP68-10 bar.Operating temperature:Static: -40 ºC to 100 ºC, short time up to 120 ºC. Dynamic: -20 ºC to 80 ºC, short time up to 100 ºCThread length:The short thin thread is suitable for holes in thin board openings or devices with internal thread, while the long thread is available fro thick board. Thread extension can be customized.
 Features:The cable gland is a product of large scope, strong tensile strength, waterproof, dustproof, salt, acid, alcohol, grease and common solvents resistant.Function:Metal Cable Gland is cable supporting products, connector cable  can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
