• Transport Package：Ctns
• Specification：Normal
• Trademark：OEM
• Origin：China
• HS Code：3926909090
• Production Capacity：10000,Day

Basic Info.

Transport Package Ctns Specification Normal Trademark OEM Origin China HS Code 3926909090 Production Capacity 10000/Day

Product Description

Product Introduction:

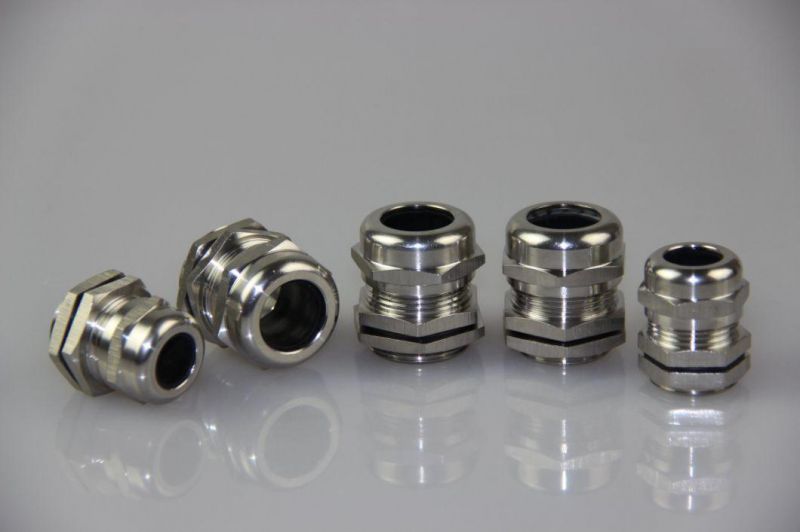

Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals: CE, RoHS, REACH
Protection Degree: IP68
Temperature Resistance: -40°C to 100°C, short time to 120°C
Function: Extremely easy installation, simply insert insert cable through the assemled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt, acid-base, alcohol, oil and common solvent.

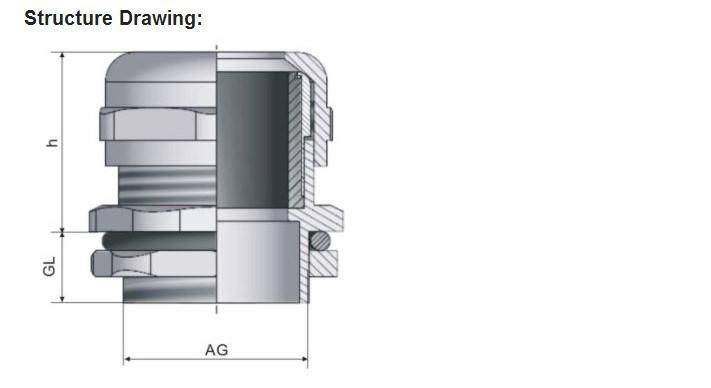

Type	ITEM.NO.	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	B1 (mm)	Cable range (mm)
M12×1.5	PG-07	12	8.1	9	5	15	14	6.4	3.5--6
M16×1.5	PG-09	16	11	9	5	15	16	8.6	4--8
M18×1.5	PG-11	17.9	13	9	5	18	18	10.7	5--10
M20×1.5	PG-13.5	20.2	15	9	5	20	19	13.3	6--12
M22×1.5	PG-16	22	17	11	5	20	19	14.3	10--14
M24×1.5	PG-19	24	19	11	5	22	21	15.5	12--15
M27×1.5	PG-21	26.9	21.8	11	6	24	22	16.7	13--18
M30×1.5	PG-24	29.8	24	13	7	24	24	19.2	15--22
M30×1.5	PG-25	29.8	24	13	7	24	24	19.2	15--22
M32×1.5	PG-27	29.8	24	13	7	24	24	19.2	15--22
M36×1.5	PG-29	36	28	13	7	25	24	24.8	18--25
M48×1.5	PG-36	45.7	39	15	8	32	27	30.7	22--32
M53×1.5	PG-42	54	46	15	8	33	29	35.6	30--38
M58×1.5	PG-48	59	51	16	8	36	30	41.4	34--44
M70×1.5	PG-63	71	63.5	28	9	45	44	55	42--54
