1-1/2" Rigid/IMC Electrical Conduit Coupling
TOPELE ENTERPRISE CO., LTD.- Color：Silver
- IP Rating：IP67
- Surface Treatment：Galvanised
- Application：to Couple Two Ends of IMC or Rigid Conduits
- Material：Steel
- Certification：UL No.E506418
Base Info
- Transport Package：Carton Box + Packing Belt
- Specification：1,2"-4"
- Trademark：TOPELE
- Origin：China
- HS Code：7307990000
- Production Capacity：100000 PCS Per Week
Description
Basic Info.
Transport Package Carton Box + Packing Belt Specification 1/2"-4" Trademark TOPELE Origin China HS Code 7307990000 Production Capacity 100000 PCS Per WeekProduct Description

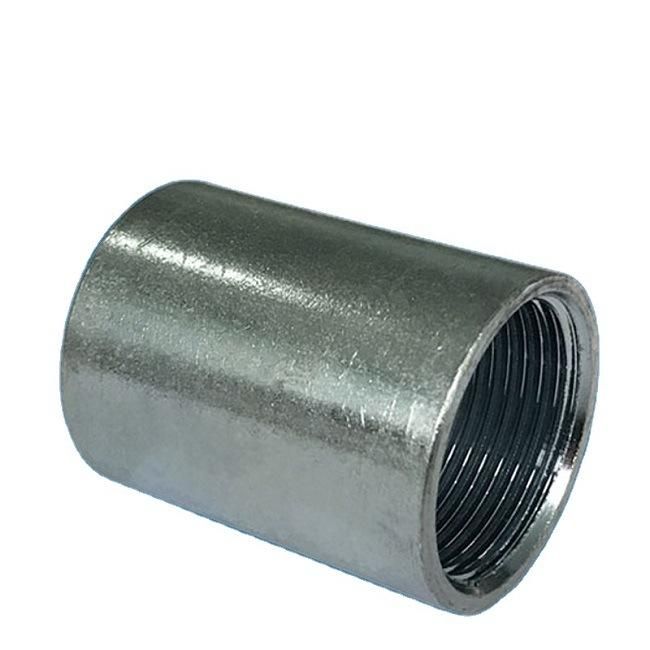

1-1/2" Rigid/IMC Electrical Conduit Coupling
Basic details:
Material: | Carbon Steel |
Surface Treatment: | Electro-Galvanized (EG)/ Hot Dipped Galvanized(HDG) |
Size: | 1/2" to 6" |
Threaed Standard: | NPT |
Usage: | For joining two threaded RIGID or IMC Conduit together |
Brand Name: | TOPELE |
Certification: | UL NO.E506418 |
Specifications:
Size | Thickness | Heigth |
1/2" | 3.0mm | 40mm |
3/4" | 3.5mm | 42mm |
1" | 4.0mm | 50mm |
1-1/4" | 4.0mm | 52mm |
1-1/2" | 4.0mm | 52mm |
2" | 4.5mm | 60mm |
2-1/2" | 6.0mm | 80mm |
3" | 5.5mm | 85mm |
4" | 6.0mm | 89mm |
| 5'' | 6.5mm | 98mm |
6" | 7.0mm | 108mm |
TOPELE threaded coupling is used to join two ends of Rigid/IMC conduit. It can also be used with chase nipples and connectors to bond threaded conduits to electrical junction boxes or enclosures.
