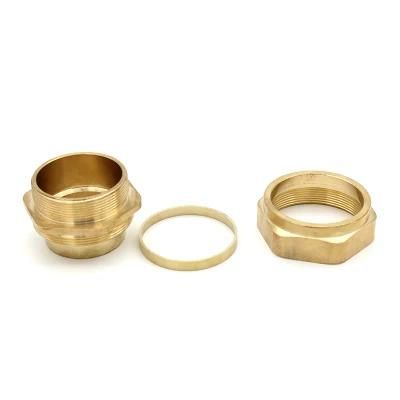

Single Compression Cable Gland with Earth Tag Brass Cable Gland A2f Series
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE
- Surface Treatment：Electroplating
- Color：Metallic Color
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：M32
- Application：Distribution Box
- Claw：PA
- Sealing and Sealing Ring：O-Ring Nitrile Ru
- Transport Package：Standard Export Carton
- Specification：36*26*19
- Trademark：JXLJQ
- Origin：Zhejiang, China
- HS Code：8547901000
- Production Capacity：1000000PCS,Month
Description
Overview
Product DescriptionEntry Thread
Size(M) Cable Dia Thread Length(L) Entry Hole
Size Hexagon
Dimensions
(H) Weight
(g) Length
(L) Metric NPT OUTE "A" Metric NPT Metric NPT JX-A2F-16A M16/M20 1/2" 3-7.5 15 15 17 21 22 H24*26 75/95 31 JX-A2F-16B M16/M20 1/2" 6.1-10 15 15 17 21 22 H24*26 75/95 31 JX-A2F-20A M20 1/2" 3/4" 10.1-13 15 15 16 21 22 27 H27*29 95 33 JX-A2F-20B M20 1/2" 3/4" 13.1-15 15 15 16 21 22 27 H27*29 85 33 JX-A2F-25A M25 3/4" 1" 14-17.5 15 16 18 26 27 34 H32*34 125 34 JX-A2F-25B M25 3/4" 1" 16.1-19.5 15 16 18 26 27 34 H32*34 115 34 JX-A2F-32A M32 1" 1-1/4" 18.1-22 15 18 19 33 34 43 H39*41.5 195 38 JX-A2F-32B M32 1" 1-1/4" 21-26 15 18 19 33 34 43 H39*41.5 175 38 JX-A2F-40A M40 1-1/4" 1-1/2" 24-28 15 19 21 41 43 50 H48*51 300 40 JX-A2F-40B M40 1-1/4" 1-1/2" 27-32 15 19 21 41 43 50 H48*51 265 40 JX-A2F-50A M50 1-1/2" 2" 32.1-34 15 21 24 51 50 62 H58*62 425 42 JX-A2F-50B M50 1-1/2" 2" 34.1-40 15 21 24 51 50 62 H58*62 360 42 JX-A2F-63A M63 2" 2-1/2" 38-44 15 24 27 64 62 62 H73*78 680 46 JX-A2F-63B M63 2" 2-1/2" 43-50 15 24 27 64 62 74 H73*78 575 46 JX-A2F-63C M63 2" 2-1/2" 49-54 15 24 27 64 62 74 H73*78 575 46 JX-A2F-75A M75 2-1/2" 3" 52-56 15 27 30 76 74 74 H85*90 875 52 JX-A2F-75B M75 2-1/2" 3" 55-60 15 27 30 76 74 74 H85*90 860 52 JX-A2F-75C M75 2-1/2" 3" 59-62 15 27 30 76 74 90 H85*90 750 52 JX-A2F-75D M75 2-1/2" 3" 62.1-66 15 27 30 76 74 90 H85*90 725 52 JX-A2F-90A M90 3" 3-1/2" 63-70 20 30 32 91 90 102 H100*106 1690 60 JX-A2F-90B M90 3" 3-1/2" 68-76 20 30 32 91 90 102 H100*106 1480 60 JX-A2F-100A M100 3-1/2" 4" 76.1-81 20 32 100 102 116 H112*120 2250 69 JX-A2F-100B M100 3-1/2" 4" 81.1-85 20 32 100 102 116 H112*120 2005 69
Code
Size(M)
Size
Dimensions
(H)
(g)
(L)
Q: Are you trading company or manufacture?
A: We are manufacturer and have focus on cable glands for over 10 years.
Our advantage are lower prices and the ability to provide customized services compared to trading companies.
Q: What about the lead time for mass production?
A: Your goods can be delivered in 3-7 days if it is the standard models and in stock.
For special model or large order, you can negotiate the delivery date with us.
Q: Can you provide the free samples?
A: Yes, we can offer the samples for free charge, meanwhile, the cost of freight is on your account.
Q: Can I have a visit to your factory before the order?
A: Yes, welcome to our factory! You also can visit our factory by video for inconvenient time.
