Yhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable Connector

Honle Group Co., Ltd.
  • Certification：CCC
  • Color：Black
  • IP Rating：IP68
  • Usage：Electric Wire
  • Material：PP
  • Type：Heat Shrinkable

Base Info

  • Model NO.：YHJ-615-15KV
  • Transport Package：Carton
  • Specification：290*253mm
  • Trademark：HONLE
  • Origin：Zehjiang, China
  • Production Capacity：5000PCS

Description

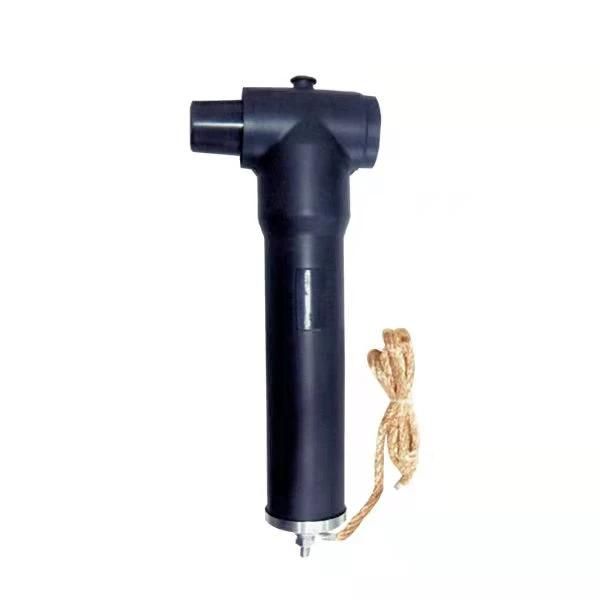

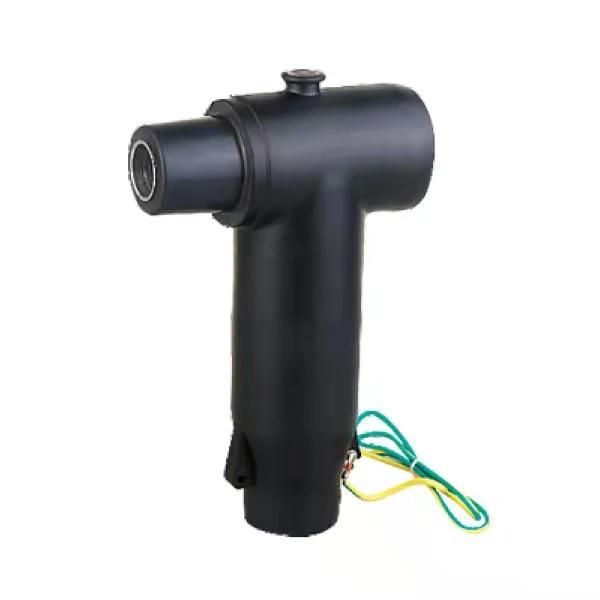

YHJ-615-15kv Touchable rear joint



This touchable rear joint adopts versatile design that can be connected with YOJ - 6 1 5 front joint .


It  is applicable for major network of 1 0 KV ring main unit and cable distribution box , or ring system of  cubical substation , used for connecting incoming and outgoing cables and realize multi - circuit  extension .

Rated current of the touchable rear joint is 6 3 0 A , is applicable for XLPE power cables of  sectional area 3 5 - 4 0 0 mm 2.Yhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable Connector

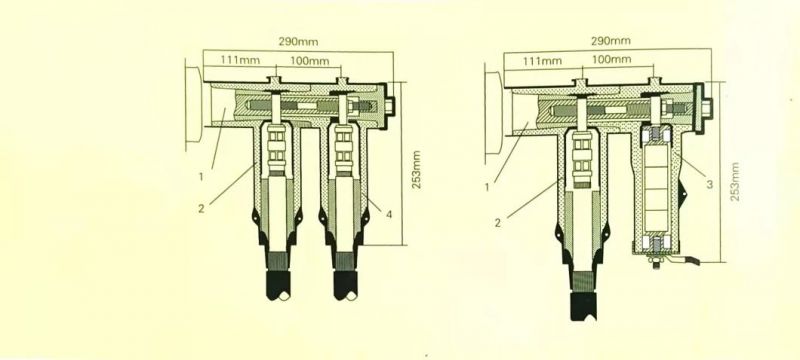

DEMENSIONS
European standard sleeve of 630 A

YQJ - 6 1 5 front joint

BL - 1 7 rear connection type lightning arrester

YJH - 6 1 5 rear jointYhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable ConnectorYGHB-17

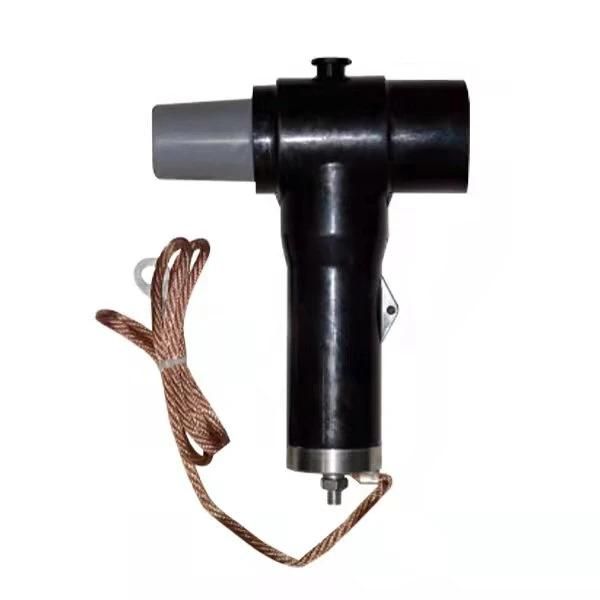

Rear connection type lighting arresterYhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable ConnectorProduct overview

Rear connection type lightning arrester can be installed on the 10 KV touchable front / rear joint  directly to provide overvoltage protection for electric equipment .

Rear connection type lightning arrester enjoys full insulation and omniseal structure .

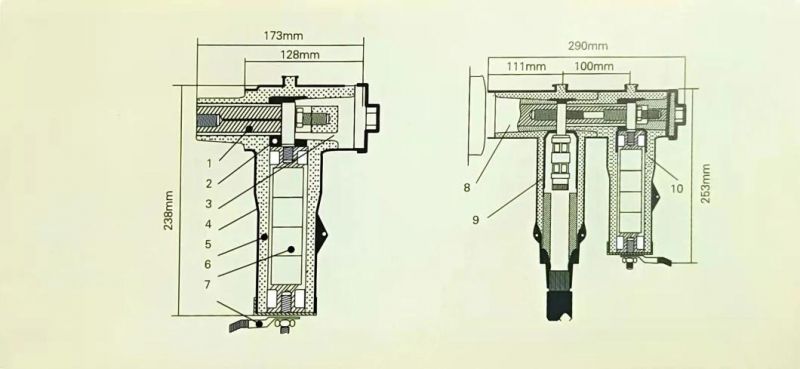

DIMENSIONSYhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable Connector
1.Transitional connecting screw rod

2.Internal voltage - sharing layer

3. Insulationplug

4. External shielding layer

5. Insulation layer

6. Zinc oxide valve block

7. Ground wire of 2 0 mm

8. European standard sleeve of 6 3 0 A

9. YQJ - 6 1 5 front joint

10. YGHB - 1 7 rear connection type lightning arrester
Yhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable ConnectorYhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable ConnectorYhj-615-15kv Cable Contact Connector Touchable Rear Joint Tee Connector Elbow Separable Connector
