Heat Shrinkable Braided Sleeve
Union Polymer Material Co., Ltd.- Certification:ISO
- Color:Orange
- IP Rating:IP50
- Usage:Electric Wire
- Material:Pet
- Type:Braided Sleeve
Base Info
- Model NO.:TT26
- Temperature:-50c-150c
- Melting Point:250c+,-10c
- Transport Package:Carton
- Specification:8-25mm
- Trademark:UPM
- Origin:Dalian China
- HS Code:8547200000
- Production Capacity:200000
Description
Technical Parameters
Material
PET/PE
Operating temperature
-50ºC-150ºC
Shrink temperature
110ºC-185ºC
Storage temperature
≤60
Color
Black orange

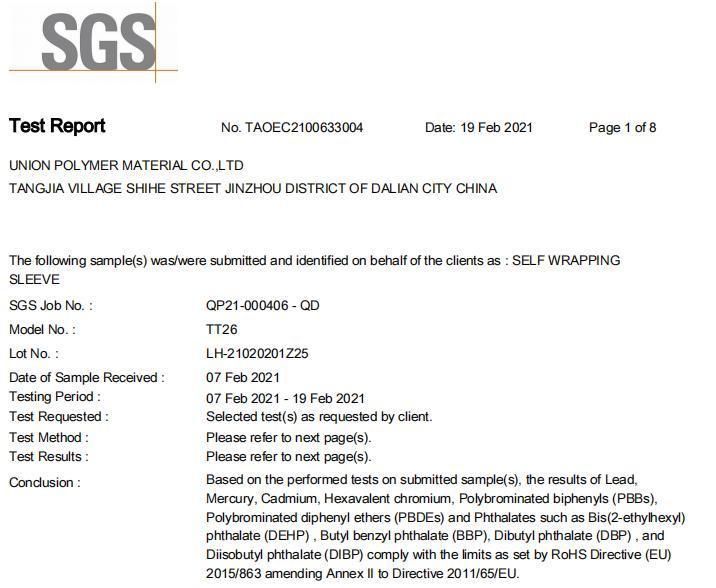

Certification
RoHS
Using tool
Heat oven heat tunel
Heat gun
Product number | ID before shrink(D) | ID after shrink(d) | Flat width(W) | Scope of protection | Packing |
LLNM-HS- | mm | mm | mm | mm | m/roll |
006 | 6 | 3 | 12+2/-1 | 4-5 | 500 |
008 | 8 | 4 | 15+2/-1 | 5-7 | 400 |
010 | 10 | 5 | 19+2/-1 | 6-9 | 400 |
012 | 12 | 6 | 22+3/-2 | 7-11 | 300 |
020 | 20 | 10 | 35+3/-2 | 11-18 | 200 |
025 | 25 | 12.5 | 43+3/-2 | 13.5-23 | 150 |
030 | 30 | 15 | 50+5/-3 | 16-28 | 100 |
034 | 34 | 17 | 57+5/-3 | 18-30 | 100 |
040 | 40 | 20 | 66+5/-3 | 21-35 | 100 |
050 | 50 | 25 | 82+5/-3 | 26-45 | 100 |
060 | 60 | 30 | 97+8/-5 | 31-55 | 50 |
070 | 70 | 35 | 115+8/-5 | 36-65 | 50 |
080 | 80 | 40 | 130+8/-5 | 41-75 | 50 |
090 | 90 | 45 | 143+8/-5 | 46-82 | 50 |
100 | 100 | 50 | 160+8/-5 | 51-90 | 50 |
Remark: 1,The inner diameter refers to the round diameter of the casing, not the folded diameter. 2,Special packaging, length, special color, etc., can be customized. 3,Please refer to the product specification acknowledgement for detailed product parameters.
