Preformed Guy Dead Grip Ends Clamp Made in Qingdao
Qingdao Powtech Electronics Co., Ltd.- Name：Preformed Guy Dead Grip Ends Clamp
- Color Code：Red,Green,Yellow,blue and Ect
- Transport Package：Cartons
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
Base Info
- Model NO.：NL-3,8
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. NL-3/8 Production Capacity 10000PCS/MonthProduct Description

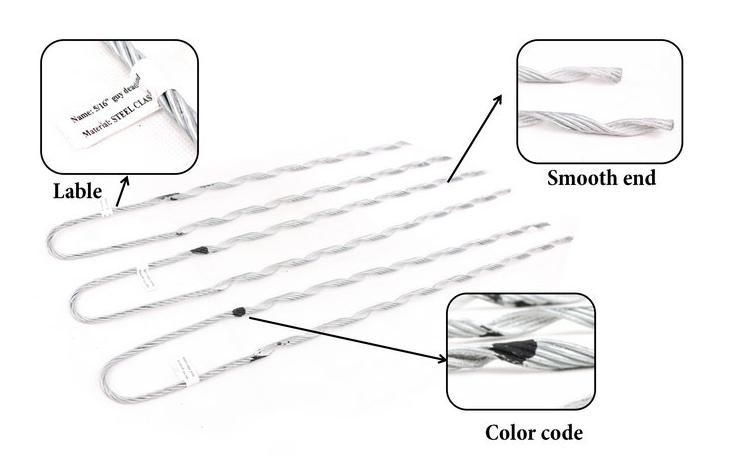

Preformed Guy dead grip ends with Factory direct sellingProduct Description:
Description:
Preformed dead ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The preformed dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.
Technical Data:
Cat. No. | Guy Wire (mm) | Applicable conductor size (Guy strand, mm2) | Length(mm ) | Weight (kg) | Color Code |
NL-25/G | 6.60 | 25 | 635 | 0.2 | Yellow |
NL-35/G | 7.65~7.95 | 35 | 711 | 0.3 | Black |
NL-50/G | 8.95~9.30 | 50 | 901 | 0.5 | Orange |
NL-70/G | 10.82~11.10 | 70 | 1016 | 0.8 | Green |
NL-95/G | 12.50 | 95 | 1333 | 1.7 | Orange |
NL-100/G | 13.00 | 100 | 1333 | 1.7 | Blue |
NL-120/G | 14.00 | 120 | 1460 | 2.2 | Yellow |
