• Model NO.：BYT-2516
• OEM：OEM
• Feature 1：Special Glue Used for Wiring Duct.
• Feature 2：Different Width Can Be Made
• Feature 3：Compartment Trunking
• Glue Color：White , Blue, Red and So on.
• Transport Package：Polyabge or Carton.According to Customers′ Request
• Specification：from 10x10mm to 200x150mm
• Trademark：N,M
• Origin：China
• HS Code：39259000
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. BYT-2516 OEM OEM Feature 1 Special Glue Used for Wiring Duct. Feature 2 Different Width Can Be Made Feature 3 Compartment Trunking Glue Color White , Blue, Red and So on. Transport Package Polyabge or Carton.According to Customers′ Request Specification from 10x10mm to 200x150mm Trademark N/M Origin China HS Code 39259000 Production Capacity 500000PCS/Month

Product Description

25x16mm Chile/Bolivia/Peru/Colombia PVC trunking with blue tape
PVC Trunking with blue tape / Electrical Cable Trunking / Trunking with Adhesive
Excellent quality, Preponderant price, perfect service
Customers' design and logo are welcome




Detail Description:

1. Name: 25X16mm Chile/Bolivia/Peru/Colombia PVC Trunking with Blue Tapepvc Trunking with Blue Tape / Electrical Cable Trunking / Trunking with Adhesive
2. Demetions:

Item No.	Size (WXH)	Thickness	Item No.	Size (WXH)	Thickness
BYT-1010	10 X 10	0.55/0.6	BYT5010	50 X 10	1.1
BYT-1208	12 X 8	0.7	BYT-5025	50 X 25	0.75/1.0/1.15/1.4
BYT-1212	12 X 12	0.6	BYT-5035	50 X 35	1.1
BYT-1407	14 X 7	0.55	BYT-5050	50 X 50	1.1/1.25/1.45
BYT-1510	15 X 10	0.5/0.6/0.7/0.75	BYT-5530	55 X 30	1.25
BYT-1616	16 X 16	0.55/0.65/0.75/0.85/1.0	BYT-6022	59 X 22	0.78/0.85/1.0/1.2
BYT-1809	18 X 9	0.6/0.7/0.8	BYT-6040	60 X 40	1.08/1.2/1.3/1.4/1.5/1.7
BYT-2010	20 X 10	0.5/0.6/0.7/0.8/0.9	BYT-6060	60 X 60	1.2/1.3/1.6
BYT-2020	20 X 20	0.8/0.9/1.0/1.1/1.3	BYT-7530	76 X 31	1.3
BYT-2313	23 X 13	0.55/0.6	BYT-7550	75 X 50	1.1/1.2/1.45/1.7/1.9
BYT-2414	24 X 14	0.55/0.63/0.7/0.83	BYT-7575	75 X 75	1.3/1.45/1.6/1.75
BYT-2516	25 X 16	0.53/0.6/0.7/0.8/0.9/1.0/1.1/1.2	BYT-8040	80 X 40	1.2/1.5
BYT-2525	25 X 25	0.75/0.85/0.95/1.2	BYT-8050	80 X 50	1.25/1.55/1.7
BYT-2813	28.5 X 13	0.55/0.65/0.9	BYT-8060	80 X 60	1.4
BYT-3010	30 X 10	0.8	BYT-8080	80 X 80	1.6
BYT-3013	30 X 13	0.6/0.7/0.8	BYT-10027	99 X 27	1.1/1.2/1.4
BYT-3015	30 X 15	0.65/0.75/0.8/0.9	BYT-10040	100 X 40	1.3/1.4/1.5/1.7
BYT-3030	30 X 30	1.1	BYT-10050	100 X 50	1.35/1.7
BYT-3616	36 X 16	0.65/0.8/1.0/1.25	BYT-10060	100 X 60	1.4/1.6/1.8
BYT-3817	38 X 17	0.66	BYT-10075	100 X 75	1.5/1.65/1.8
BYT4010	40 X 10	0.8	BYT-100100	100 X 100	1.6/2.0/2.2
BYT-4016	40 X 16	0.6/0.7/0.8/0.95/1.2	BYT-12080	120 X 80	2.0/2.3
BYT-4020	39 X 19	0.65/0.75/0.85/0.95/1.15	BYT-15050	150 X 50	2.3
BYT-4025	40 X 25	0.68/0.75/0.85/0.95/1.2/1.3/1.4	BYT-150100	150 X 100	2.0/2.4
BYT-4040	40 X 40	0.8/0.95/1.1/1.25/1.3	BYT-200100	200 X 100	2.3/2.4

3. Material: PVC
4. Standard: IEC1084-2-1, IEC61084-2-1
5. Flammability Rating: FV-0; FV-1
6. Application: Home,Hotel,Office,School,Factory and so on. Protect and manage indoor electrical wiring
7. Work Temperature: -40ºC to 65ºC
8. Color : white or other colors upon request
9. Length: 2m,2.9m,4m or according to clients'request.

10. Feature:
A. Non-conductive: Good insulation, able to resist 25kv voltage, assuring a safe system.
B. Fire resistance: Self-extinguishing, do not support combustion.
C. Corrosion resistance: Resistant to acids,bases and salts, assuring a lower maintenance cost and a longer performance life.
D. Impact strength: Resistant to compression and impact, no cracks accur due to screwing.
E. Attracing appearance: Good appearance suitable for indoor installation.
F. Easy installation: Light weight, easy to transport,handle and install.
G. Good breakage resistance: The trunking won't be broken when peg the nail on it.

11. The quotation subjects to our final confirm.
12. Term of payment: 30% deposit, 70% by T/T before shipment Or 100% by L/C at sight.
13. Delivery time: About 20 days after received down payment.

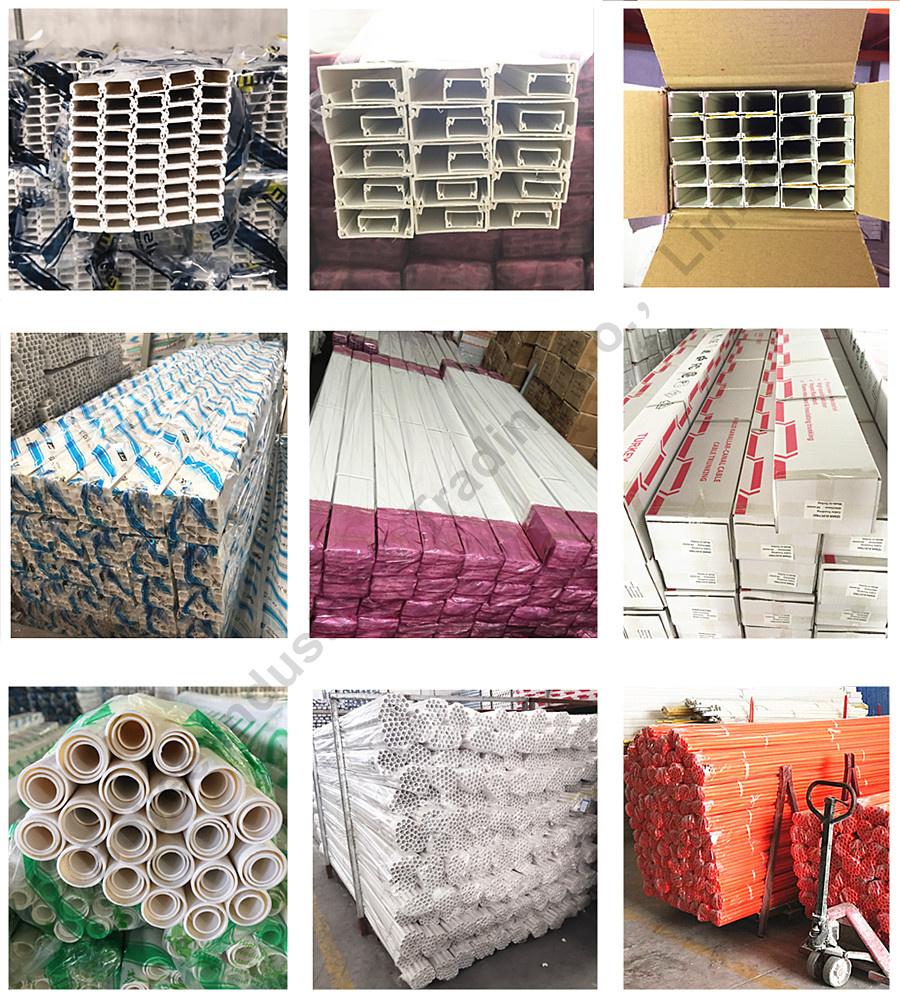

Package Photo:

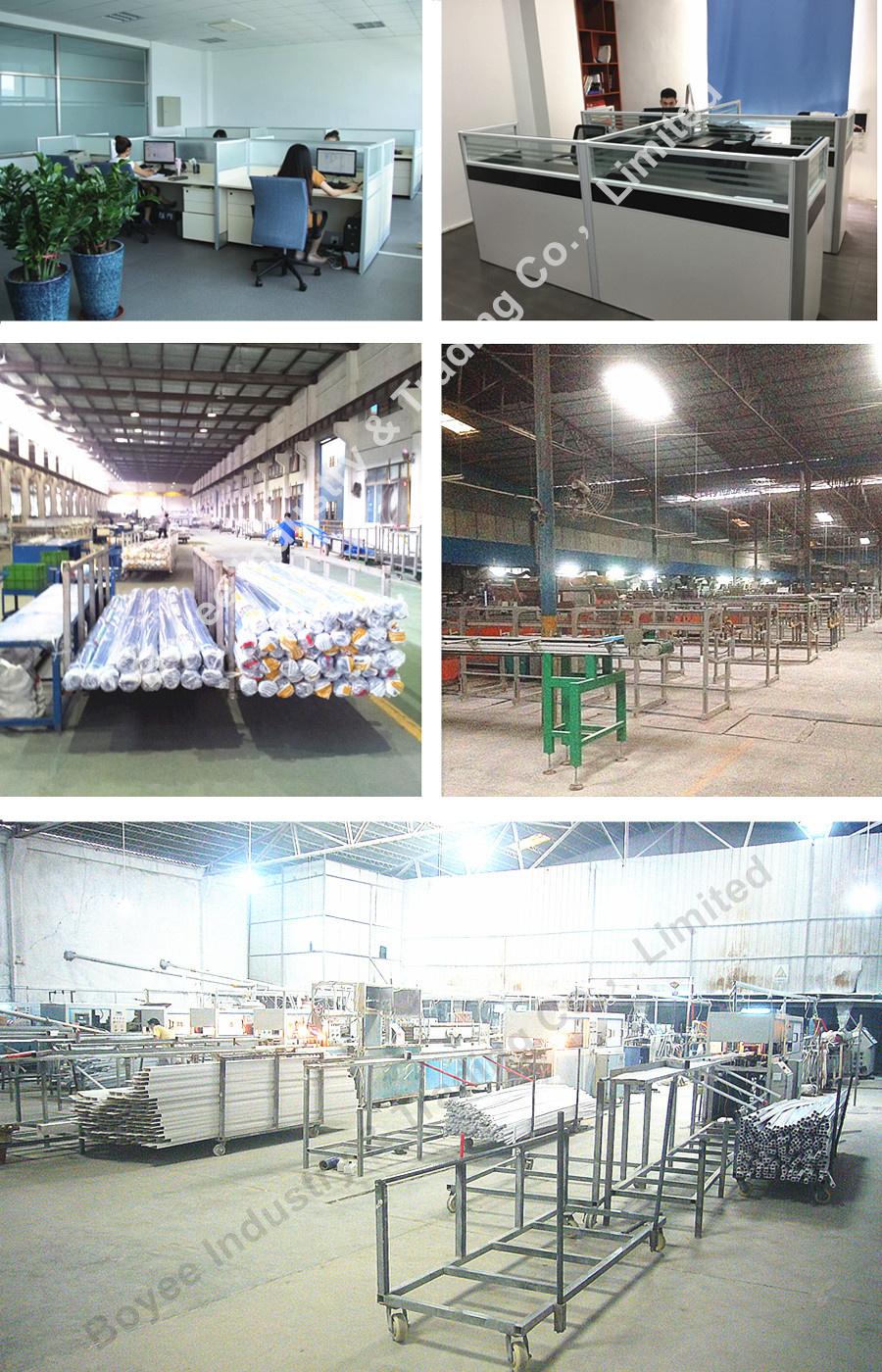

Factory Photos:

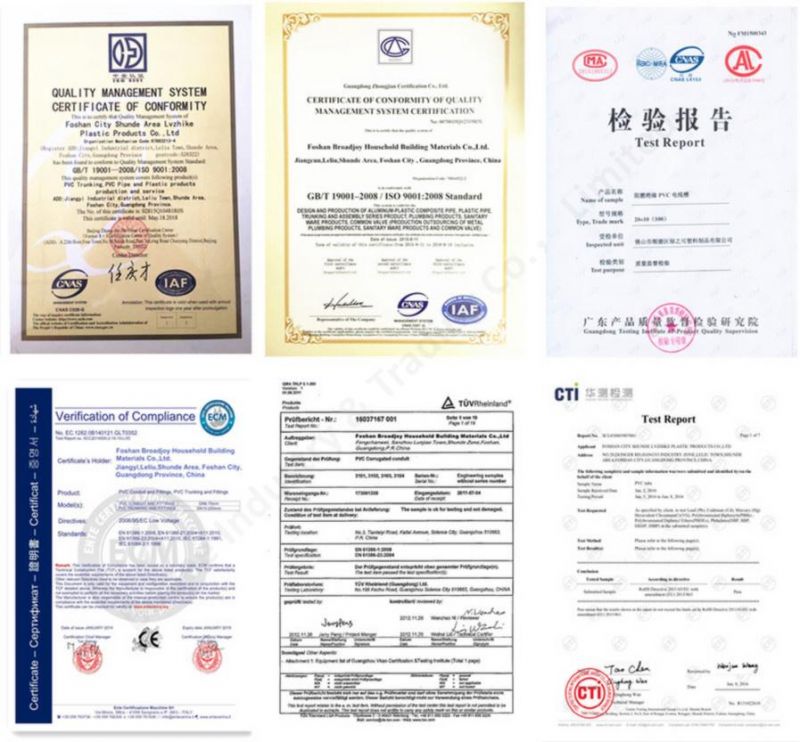

Test Report & Certificate:
