Factory Direct Supply Trough Type Cable Tray

Chongqing Tianbao Conductor Busbar Electrical Co., Ltd.
  • Certification：CCC, ISO
  • Hole：with Hole
  • Feature：Antimagnetic, Easy Installation, Light Weight, Dustproof, Corrosion Resistance
  • Surface Treatment：Hot Galvanizing
  • Material：Stainless Steel
  • Type：Trough

Base Info

  • Model NO.：XQJ-C-01
  • Width：200-800mm
  • Side Rail Height：60-200mm
  • Max. Working Load：50-150kg
  • Standard Length：6m
  • Transport Package：Ply Wood Case
  • Specification：ISO9001
  • Trademark：Tianbao
  • Origin：Chongqing, China
  • HS Code：76109000
  • Production Capacity：10000 Mters Per Month

Description


ModelSpec(A×B)Weight(kg)XQJ-C-01 -150×257.95-2100×5014.7-3150×7520.3-4200×10036.41-5250×12540.81-6300×15047.47-7400×20079.2-8500×20090.01-9600×200101.68-10800×200125.13
Remark:
       1.h=60,100 is single row connect hole, h=150 is double row connect holes.
       2.The horizontal elbow is calculated 0.8 times of the weight per meter.
       3.The horizontal triple is calculated 1.2 times of the weight per meter.
       4.Reference by JB/T10216-2000

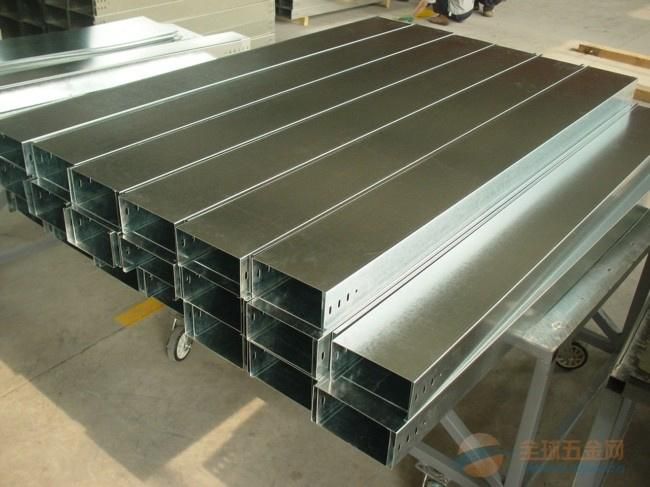

 Factory Direct Supply Trough Type Cable Tray

Main parts of XQJ Trunking Cable Tray:
1.Straight segments
2.Horizontal elbows(Various shapes including tees and crosses.)
3.Supporting arm
4.Hanger bracket
5.Connection accessories
