• Model NO.：AQXY
• Span：100-200m
• Suitable Cable：ADSS
• Maximum Tension Strength：≥20kn
• Slip Strength：≥5kn
• Name：ADSS Spiral Suspension Device
• Transport Package：Wooden Case
• Specification：100-200m span
• Trademark：Powtech
• Origin：China
• HS Code：85447000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. AQXY Span 100-200m Suitable Cable ADSS Maximum Tension Strength ≥20kn Slip Strength ≥5kn Name ADSS Spiral Suspension Device Transport Package Wooden Case Specification 100-200m span Trademark Powtech Origin China HS Code 85447000 Production Capacity 10000PCS/Month

Product Description

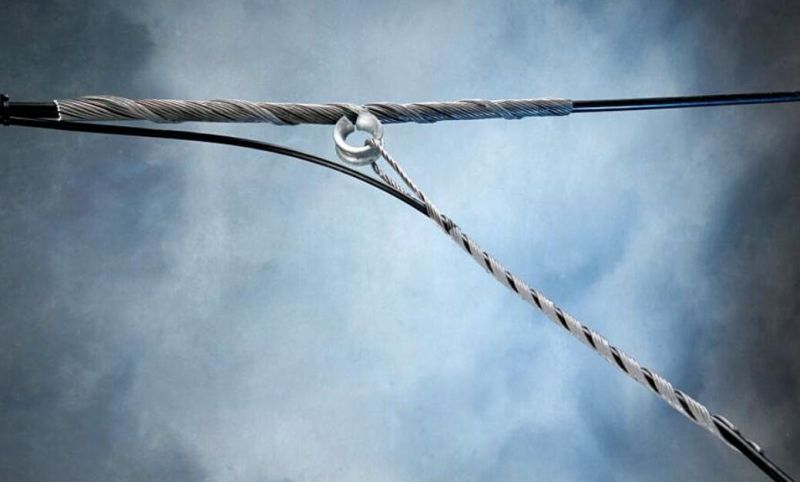

ADSS Spiral Suspension clamp short span


Configuration:
1. O-shaped ring
2. Reinforcing rod
3. Dead-end rod

Features:
The simple suspension sets are designed to connect ADSS cable to pole/tower in straight line. They feature in handiness, ease with certain load capacity to resist moving.

Application:
(1) The span should be less than 200m
(2) The poles/towers with corner angle less than 15degree
(3) It's mainly designed for ADSS cable which are constructed on the same poles with 10KV electric power for the city zones.

Technical Data Sheet:
Maximum Tension Strength: ≥20kN
Slip strength: ≥5kN
Recommended span length: 100~200m

Model	Cable Diameter(mm)	Preformed Dead End Length(mm)	Reinforcing Rods Length(mm)
AQXY-100-* *	9.4~15.0	800	1000
AQXY-100-* *	15.1~18.5	800	1200
AQXY-200-* *	9.4~15.0	1000	1200
