• Model NO.：PG7
• Main Material：Nickel-Plated Brass
• Claw：Nylon
• Seal & O Ring：NBR
• Thread Length：Standard & Customization
• Other Size：Available
• Transport Package：100 PCS Per Bag
• Specification：PG7-PG63
• Trademark：JXLJQ
• Origin：Zhejiang Province, China
• HS Code：854720000
• Production Capacity：10000 PCS,Month

Basic Info.

Model NO. PG7 Main Material Nickel-Plated Brass Claw Nylon Seal & O Ring NBR Thread Length Standard & Customization Other Size Available Transport Package 100 PCS Per Bag Specification PG7-PG63 Trademark JXLJQ Origin Zhejiang Province, China HS Code 854720000 Production Capacity 10000 PCS/Month

Product Description

Product Description:

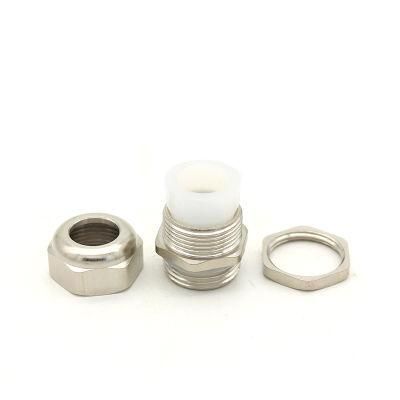

Product Name	Waterproof Brass Cable Gland
Material	Nickel-plated Brass
Size	PG7-PG63
Operating Temperature	-40°C to 100°C
Grade	IP68

Product Show:


Product Code	Thread AG	Cable range (mm)	Thread O.D  (mm)	Mounting Hole Diamter (mm)	Thread Length (mm)	Spanner size  (mm)
JX-PG7-NP	PG7	6.5-3	12.5	12.5-12.7	7	14
JX-PG9-NP	PG9	4-8	15.2	15.2-15.4	8	18
JX-PG11-NP	PG11	5-10	18.6	18.6-18.8	8	20/21
JX-PG13.5-NP	PG13.5	6-12	20.4	20.4-20.6	8	22
JX-PG16-NP	PG16	10-14	22.5	22.5-22.7	9	24
JX-PG19-NP	PG19	10-14	25	25-25.2	9	24/27
JX-PG21-NP	PG21	13-18	28.3	28.3-28.5	9	30/32
JX-PG25-NP	PG25	22-15	32	32-32.2	10	35
JX-PG29-NP	PG29	25-18	37	37-37.2	11	40
JX-PG36-NP	PG36	33-25	47	47-47.2	12	50
JX-PG42-NP	PG42	38-32	54	54-54.2	13	57
JX-PG48-NP	PG48	44-37	59.3	59.3-59.5	14	64
JX-PG63-NP	PG63	52-42	72	72-72.2	15	78

FAQ:Q: Are you trading company or manufacturer ?A: We are cable gland manufacturer, we have decade years experience in this field.Q: How long is your delivery time?A: Generally, the lead time of our standard cable gland should be 5-10 working days. Q: Do you provide samples ? is it free or extra ?A: It's ok for us provide sample for test.
We could offer free standard cable glands but we do not pay the cost of freight.Q: What is your terms of payment ?A: Payment<=2000USD, 100% in advance.
Payment>=2000USD, 30% T/T in advance ,balance before shippment.


 Any question about the cable glands, kindly feel free to inquire!!
