• Model NO.：DM0325
• Elongation：>300%
• Elongation After Aging：>200%
• Tensile Strength：>10.4 MPa
• Dielectric Strength：>15 Kv,mm
• Water Absorption：<0.2%
• Shrink Ratio：3:1, 4:1, 6:1
• Wall Thickness：Normal, Thick
• Shrink Temperature：125 Deg.C
• Temperature：-45 to 125 Deg.C
• Feature：Flame Retardant
• Sample：Free
• Packing：1.22m,PC
• Adhesive：Hot Melt
• Number of Wall：Dual Wall
• Transport Package：Exporting Carton
• Specification：Dia.: 3.2mm to 125mm
• Trademark：Maxwel
• Origin：China
• HS Code：39173100
• Production Capacity：100000 Meters,Week

Overview Product Description
General Information

The environmentally friendly double-wall (dual wall) tube is composed of two layers
Outer Layer: Soft flame-retardant and insulated polyolefin
Inner Layer: Hot-melt adhesive

Function: Sealing, waterproof, anti-corrosion, air leakage and insulation protection. The high-magnification shrinkage characteristic can meet the protection of more variable diameter components.

Characteristic
- 3:1 shrink ratio
- Low longitudinal shrinkage
- Flame retardant (out jacket only)
- Super sealing against water, moisture or other contaminates
- Continuous operating temperature : -45ºC-125ºC
- Shrink Temperature:125ºC
- Meet RoHs

Specification

SizeAs suppliedAfter Recovery(mm)Standard package(m/spool)mmInner Diameter(mm)Inner DiameterTotal Wall ThicknessWall thickness of adhesive3.2≥3.2≤10.95±0.080.35±0.082004.8≥4.8≤1.61.1±0.080.4±0.081006.4≥6.4≤2.21.2±0.080.45±0.081007.9≥7.9≤2.71.35±0.080.5±0.081009.5≥9.5≤3.21.45±0.080.5±0.085012.7≥12.7≤4.21.7±0.080.5±0.081.22m/pc15≥15≤5.21.8±0.10.55±0.11.22m/pc19.1≥19.1≤6.32±0.10.55±0.11.22m/pc25.4≥25.4≤8.52.1±0.10.55±0.11.22m/pc30≥30≤10.22.2±0.10.6±0.11.22m/pc39≥39≤13.52.4±0.10.6±0.11.22m/pc50≥50≤172.7±0.10.7±0.11.22m/pc64≥64≤213±0.150.7±0.11.22m/pc75≥75≤253±0.21±0.151.22m/pc90≥90≤303±0.21±0.151.22m/pc100≥100≤343±0.21±0.151.22m/pc125≥125≤423±0.21±0.151.22m/pc
Technical Data
For Out Polyolefin LayerCompany Profile

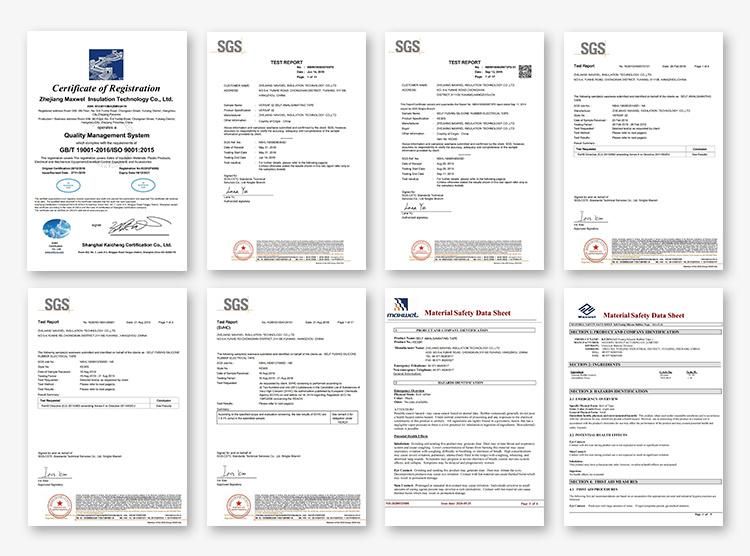

Certifications
