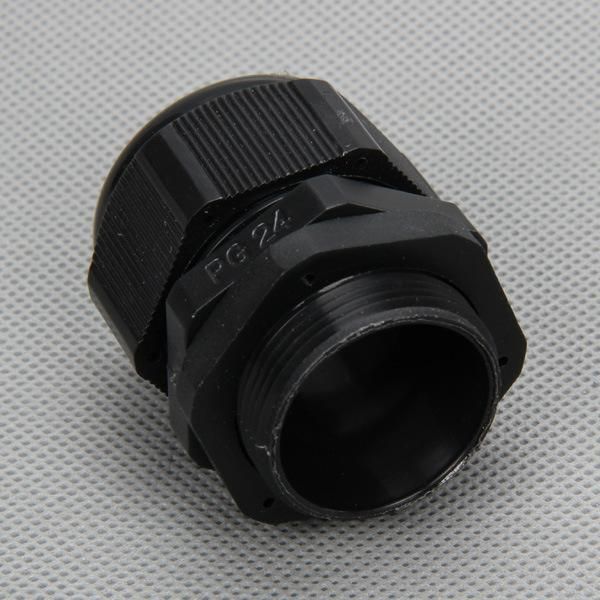

Nylon Cable Glands (PG)
Changhong Plastics Group Imperial Plastics Co., Ltd.- Material：Nylon PA66
- Type：Cable Gland
- Type of Gland：Pg
- Size：Pg7-Pg42
- Transport Package：Plastic Bags, Headcards
- Trademark：CHS changhong
Base Info
- Model NO.：PG
- Origin：China
- HS Code：3926909090
Description
Basic Info.
Model NO. PG Origin China HS Code 3926909090Product Description
· Material: Made from UL Nylon 66, 94V-2 and tight ring from rubber.· Feature:
1. Special designation, good strengthsile and none damage to electrical machine.
2. Not need to dismetgrate the fix terminal, cable can be inserted throug directly then tighten easy and save time.
· Application: Used for machinery control box, distribution plate, machine and electrical, etc.
| ITEM.NO. | D1 | D2 | L1 | L2 | L3 | L4 | B1 | Cable range |
| PG-07 | 12.1 | 8.7 | 8.3 | 5 | 15.0 | 13.8 | 6.9 | 3.5-6 |
| PG-09 | 16.2 | 11.1 | 8.7 | 4.6 | 16.1 | 15.7 | 8.9 | 4-8 |
| PG-11 | 18.2 | 13.4 | 8.7 | 5.1 | 18.1 | 17.9 | 11.3 | 5-10 |
| PG-13.5 | 20.1 | 15.5 | 8.7 | 5.0 | 19.2 | 18.3 | 12.8 | 6-12 |
| PG-16 | 22.3 | 17.6 | 11.3 | 5.2 | 20.2 | 18.1 | 13.7 | 10-14 |
| PG-19 | 24.1 | 19.1 | 11.1 | 5.1 | 21.1 | 20.5 | 15.8 | 12-15 |
| PG-21 | 26.7 | 21.4 | 11.1 | 5.1 | 23.0 | 22.0 | 17.4 | 13-18 |
| PG-24 | 30.1 | 24.8 | 12.8 | 5.8 | 23.9 | 23.7 | 23.1 | 15.22 |
| PG-29 | 35.9 | 28.8 | 11.9 | 6.9 | 24.4 | 23.5 | 25.3 | 18-25 |
| PG-36 | 46.4 | 39.1 | 16.0 | 7.8 | 30.7 | 27.3 | 31.9 | 22-32 |
| PG-42 | 53.9 | 46.7 | 15.4 | 7.9 | 33.2 | 28.5 | 37.1 | 30-38 |
| PG-48 | 60.2 | 52.6 | 18.0 | 7.9 | 35.5 | 30.3 | 45.1 | 34-44 |
| PG-63 | 70.6 | 63.9 | 28.9 | 8.9 | 41.4 | 41.3 | 49.3 | 42-54 |
