2u 96 Core Sliding Optical Patch Panel with Sc/Upc
Hangzhou Softel Optic Co., Ltd.- Port Number:48~128
- Type:MDF
- Certificates:Ce, ISO, RoHS
- Condition:New
- Item Name:Optical Fiber Distribution Box
- Wiring Devices:ODF
Base Info
- Model NO.:ODF-F-96

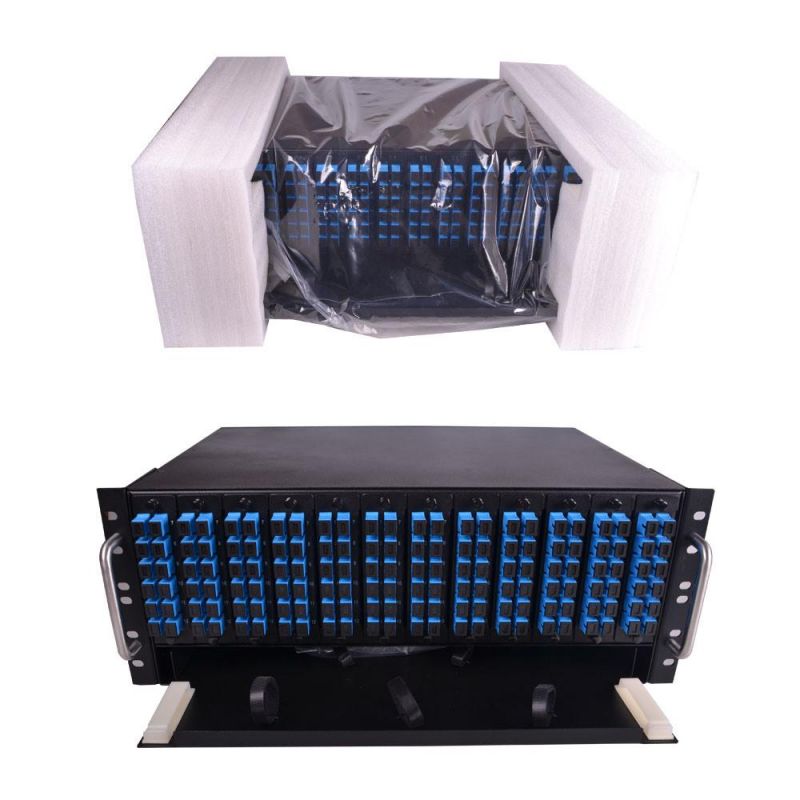

- Transport Package:Standard Export Carton
- Specification:CE, RoHS, ISO9001
- Trademark:SOFTEL
- Origin:China, Mainland
- HS Code:85176229
- Production Capacity:10000PCS
Description
Basic Info.
Model NO. ODF-F-96 Transport Package Standard Export Carton Specification CE, RoHS, ISO9001 Trademark SOFTEL Origin China, Mainland HS Code 85176229 Production Capacity 10000PCSProduct Description
2U 96Core Sliding Optical Patch Panel ODF-F-96Optical Patch Panel Feature
1.1.5mm steel sheet for a strong housing
2. Slim 1 Unit Mounting Height
3. Ball-bearing slid rails with positive stop

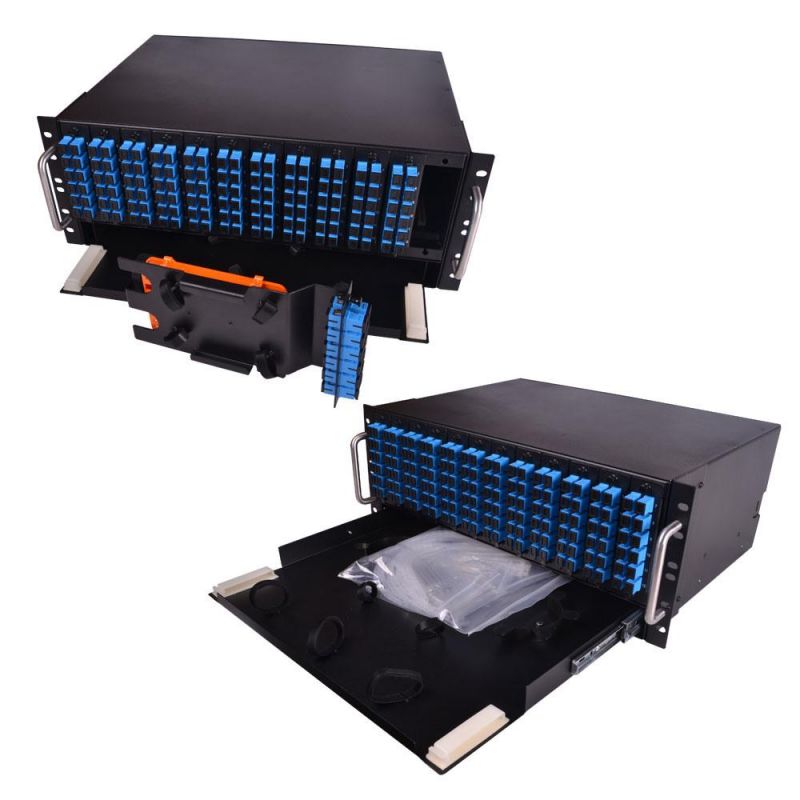

4. Sliding design is easy to work for patching the connectors
5. The hinged front panel is easy to be turned over & be fixed by the snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations

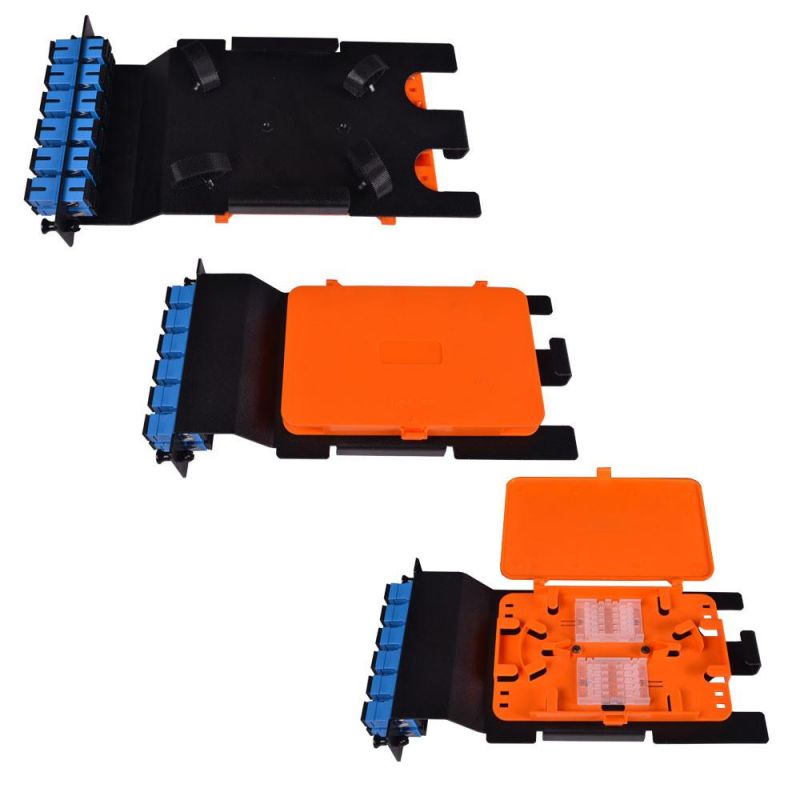

10. High-density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12.4 fiber saddles built-in for 900um tight-buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μ M tight-buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
16. The accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube
Model | Size(mm) | Max. Core Capacity | splice tray | Weight(kg) |
ODF-A | 480x310x43 .5 | 48 LC, 24 SC | 12, 24 | 4.8 |
ODF-B | 4 8 0x310x43 .5 | 48 LC, 24 SC | 12, 24 | 5 |
ODF-C | 485x320x(60-180) | 192LC, 96SC | 12, 24 | / |
ODF-D | 485x270x(43-240) | 192LC, 96SC | 12 core integrated splice tray | / |
ODF-E | 48 5x3 1 0x4 3.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 3.5 |
ODF-F | 4 8 0x310x43 .5 | 72 LC, 36 SC, 24 FC | 12, 24 | 5 |
ODF-G 1U | 480x310x43.5 | 120LC | MPO cassette | / |
ODF-G 4U | 480x310x17.5 | 288LC | MPO cassette, 12, 24 splice tray | / |
