• Transport Package：Standard Export Carton
• Specification：different size
• Trademark：OEM
• Origin：China

Basic Info.

Transport Package Standard Export Carton Specification different size Trademark OEM Origin China

Product Description

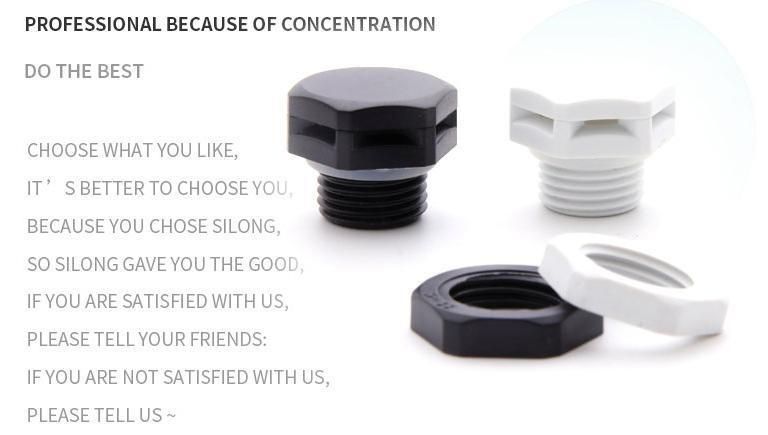

Data sheet of Black Plactic M12 Threaded Vent Valve:
Screw in vents (Screw type vents) are made from over molding of ePTFE membrane and plastic particles in the mold. The design of screw can ensure the vent shave excellent sealing performance and not to separate from the housing in the process of installation and application. The durability design of screw invents can be applied to all kinds of complicated application environment. Creherit excellent process technology ensures the best service life of the vents.


Product Name	Lighting Application Hydrophobic IP 68 Air Permeable Black Plastic M12 Threaded Vent Valve
Material	Plastic PA6+ePTFE Membrane
Port Size	M12*1mm
Color	Black
Air Perm	2300ml/min/cm² (Pressure=70 mbar)
Material of Membrane	ePTFE /(PET)
Character	Waterproof ,Breathable, Oleophobic
IP Rate	IP68
Ring Material	SIL
Mut Material	Nickel Plated Brass
