1ge+1fe+WiFi+CATV FTTH ONU Dual Mode Xpon ONU
Hangzhou Softel Optic Co., Ltd.- Product：1ge+1fe+WiFi+CATV Xpon ONU
- Wavelength：Tx1310, Rx 1490, CATV 1550
- Optic Connector：Sc,APC
- Power Supply：DC 12V,0.5A Adapter
- Power Consumption：<6W
- Dimension：140mm*116mm*34mm
Base Info
- Model NO.：ONT-2GF-RFW

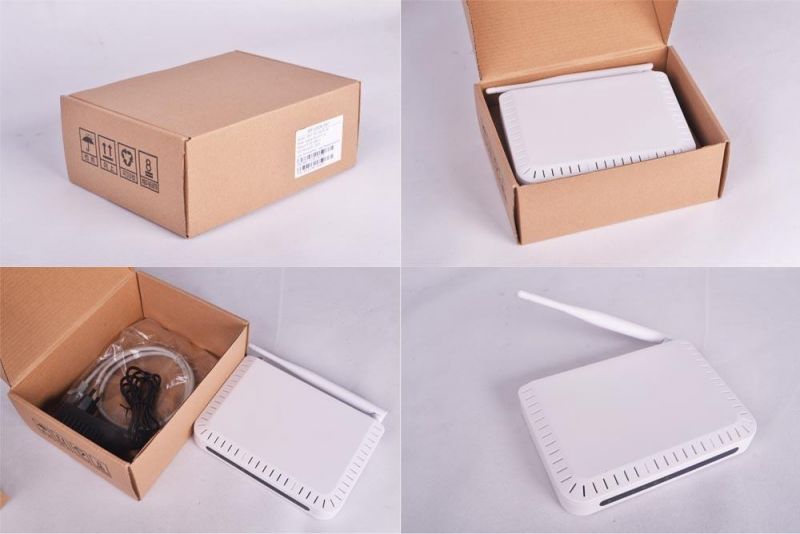

- Transport Package：Paper Box
- Specification：size
- Trademark：Softel
- Origin：China
- HS Code：85176229
- Production Capacity：1000 Set Per Week
Description
Items
Unit
Specifications
PON standard.
EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface
SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM
Speed
Gbps
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength
nm
Tx1310, Rx 1490, CATV 1550
Interface
data
1FE 10/100Mbps
1GE 10/100/1000Mbps
Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Wireless
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna
Indicator
LED
PWR, PON, LOS, WiFi, GE, FE, CATV
Operating condition
ºC
Operating temp: -5 ~ +55
Storing condition
ºC
Storing temp: -30 ~ +60
Humidity
%
10~90(non-condensing)
Power supply
V
DC 12V,0.5A adapter
Power consumption
W
≤6
Dimension
mm
140mm×116mm×34mm(L×W×H)
Net weight
Kg
0.3
