Cheap Price PVC Bird Flight Diverter
Qingdao Powtech Electronics Co., Ltd.- Name：Bird Flight Diverter
- Condition：New
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：OPTELEC
- Origin：China
Base Info
- Model NO.：BFD
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. BFD Production Capacity 10000PCS/MonthProduct Description

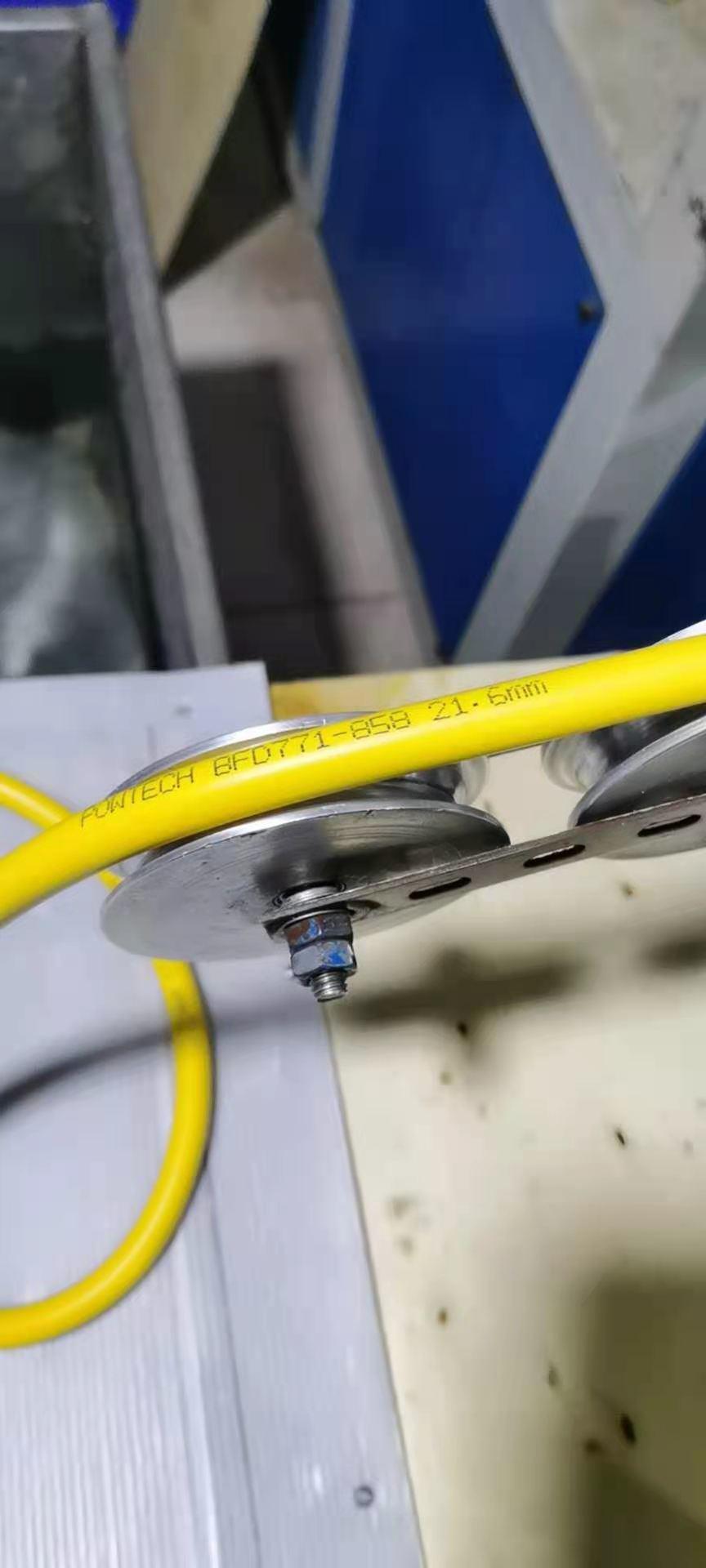

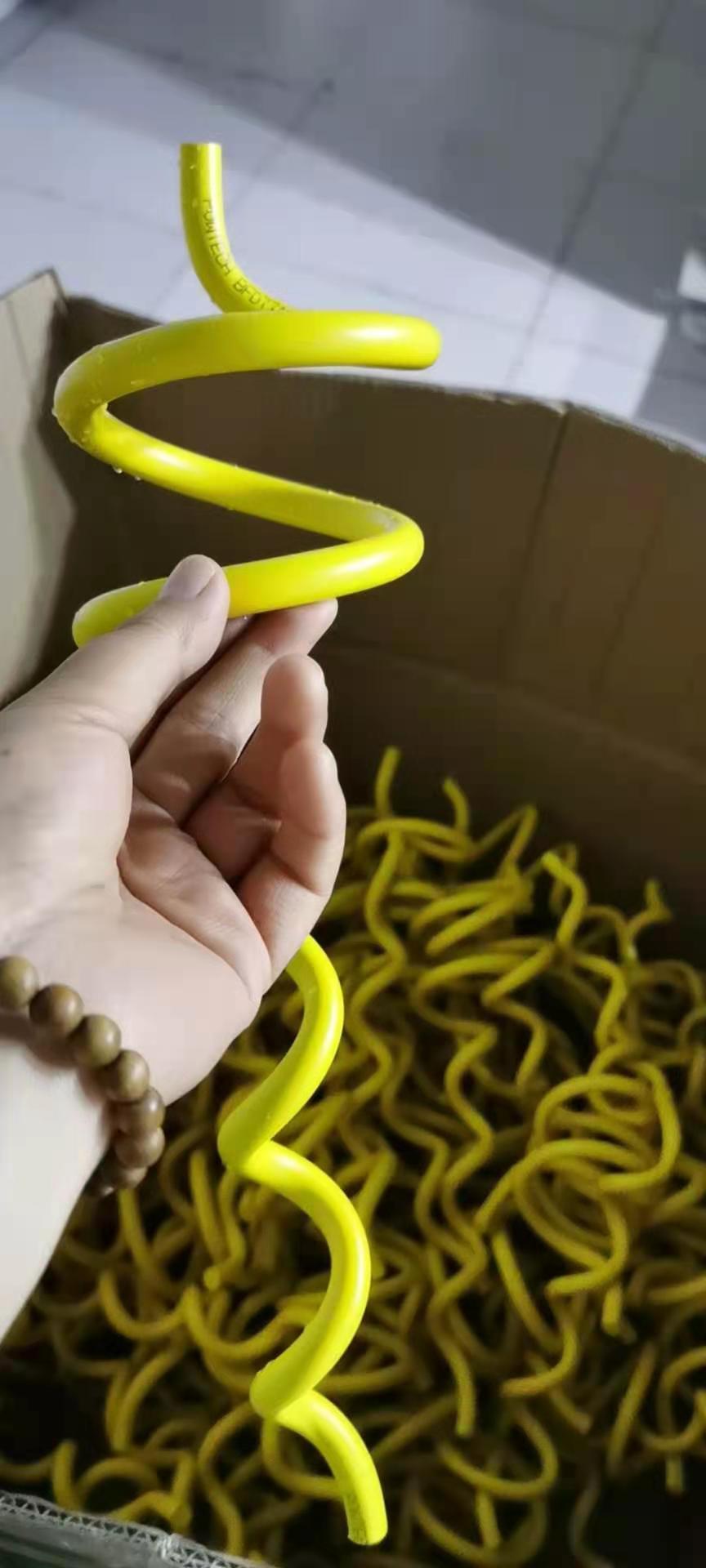

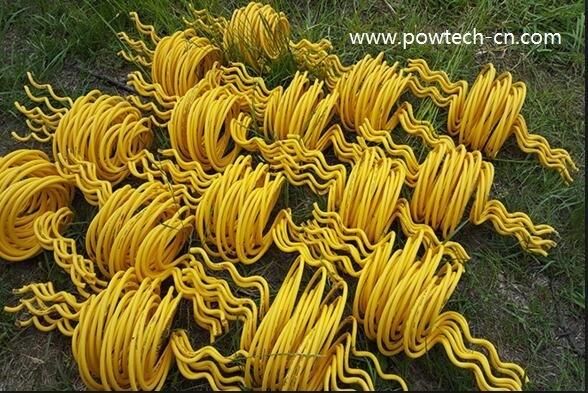

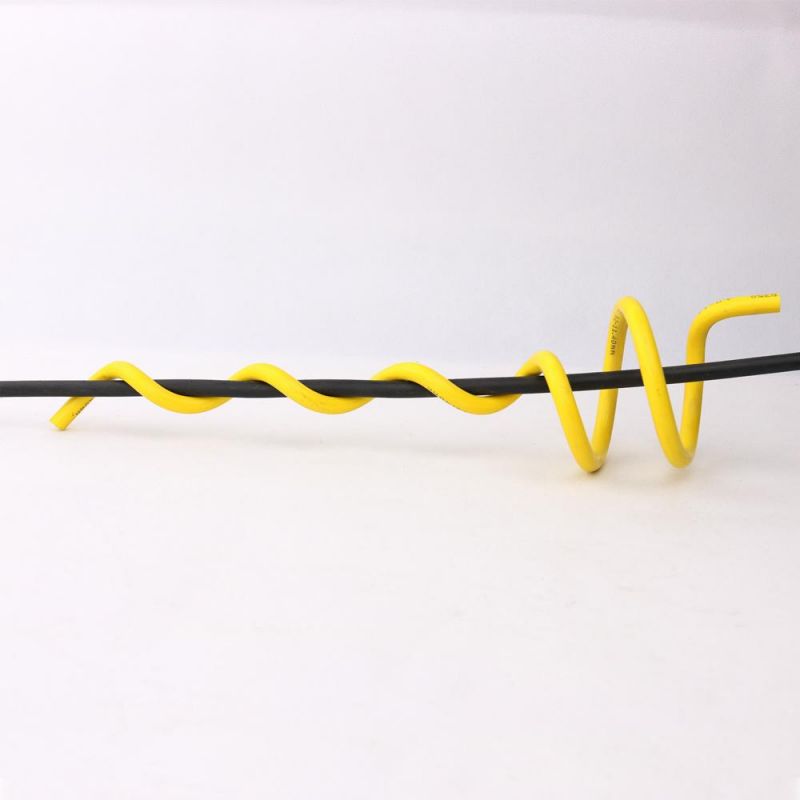

PVC Bird Flight Diverter
Description:
The Bird Diverter is designed to make overhead lines visible to birds and provides an economic means of reducing the hazard to both lines and birds.For low and medium voltage construction, it is applied to the phase conductors(bare or jacketed).For high voltages, it is used on the earth wire.
Features:
1.Light weight
2.Long service life
3.Material: gray or yellow PVC with UV protection
Technical Data :
| Model | Min(mm) | Max(mm) | Length(mm) | Rod dia(mm) |
| BFD175-249 | 4.44 | 6.4 | 400 | 9.5 |
| BFD250-349 | 6.35 | 8.9 | 400 | 9.5 |
| BFD350-449 | 8.9 | 11.4 | 400 | 9.5 |
| BFD450-599 | 11.43 | 15.21 | 400 | 9.5 |
| BFD600-770 | 15.2 | 19.56 | 400 | 9.5 |
| BFD771-858 | 19.56 | 21.79 | 400 | 12.7 |
| BFD859-942 | 21.80 | 23.92 | 400 | 12.7 |

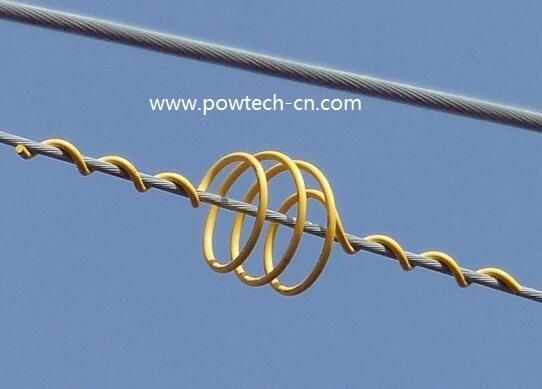

Appliacation:
