Topele UL Listed High Quality Galvanized IMC Conduit

TOPELE ENTERPRISE CO., LTD.
  • Color：Silver
  • IP Rating：IP67
  • Surface Treatment：Galvanised
  • Application：Protect Electrical Wires and Cables
  • Material：Steel

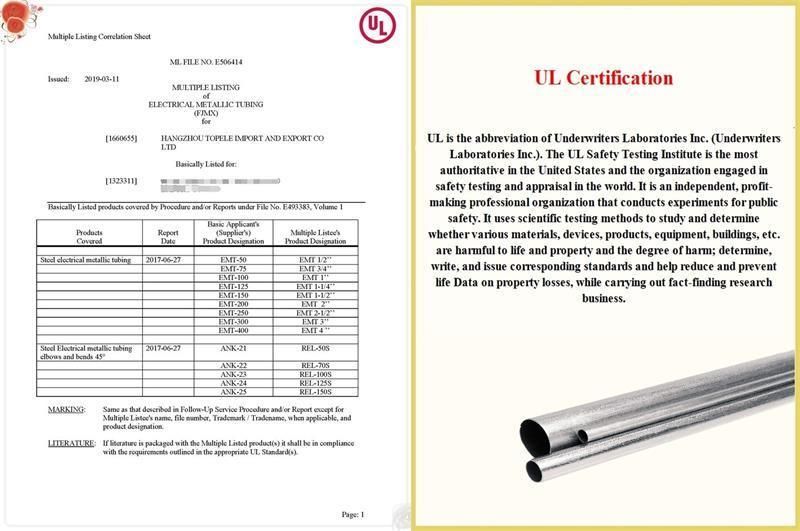

  • Certification：UL No.E506417

Base Info

  • Model NO.：IMC Conduit
  • Standard：UL 1242 ,ANSI C80.6
  • Transport Package：Woven Bag with Bundle
  • Trademark：TOPELE
  • Origin：China
  • Production Capacity：100 Ton,Per Month

Description

Trade SizeMetric DesignatorThreads InchOutside DiameterThickness ALengthInchInchmmInchmmFeetMeter1/2''1614.00.81520.700.0701.79103.053/4''2114.01.02826.100.0751.90103.051''2711.51.29132.800.0852.16103.051-1/4''3511.51.63841.600.0852.16103.051-1/2''4111.51.88247.800.0902.29103.052''5311.52.35859.900.0952.41103.052-1/2''638.02.85872.600.1403.56103.053''788.03.47688.300.1403.56103.054''1038.04.465113.400.1403.56103.05

Tolerances:Length+-0.25''(6.35mm),Outside Diameter 1/2'' through 1- 2'' +-0.005''(0.38mm),2'' through  4'' +-1%.
Note:If you need different thickness or length,please contact .


Galvanized rigid steel conduit is the heaviest weight and and thickest wall of electrical conduits, for the applications that need superior protection, strength, safety and ductility. GRC can be used indoors, outdoors, underground, concealed and exposed.It  is manufactured from high-quality flat-rolled steel utilizing an Electric Resistance Welding process followed by hot-dipped galvanizing. The finished product has strong and smooth welds and a tightly-adhering, uniform zinc coating.

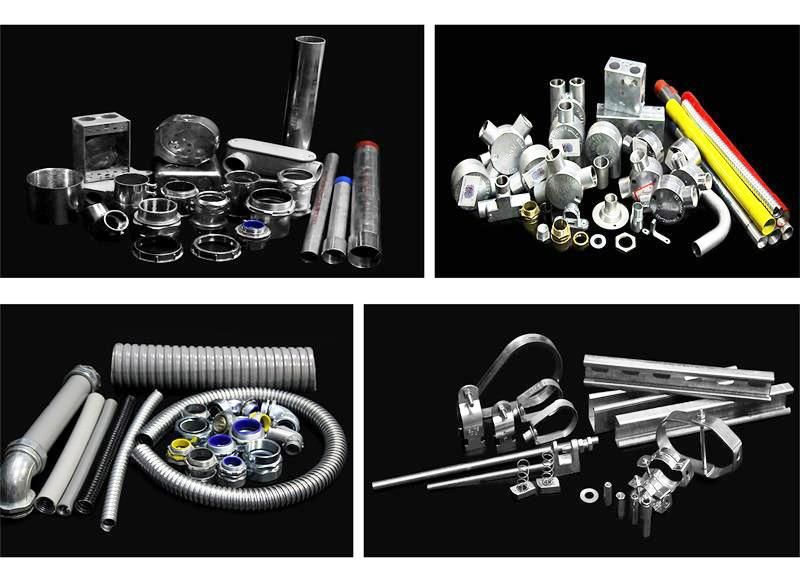

A series of products:
