• Type：Malleable Iron Box
• Finish：Hot DIP Galvanized
• Transport Package：10PCS, Box, 10 Box, Carton
• Specification：20mm, 25mm
• Trademark：TOPELE, OEM
• Origin：China
• HS Code：7307110000
• Production Capacity：500000

Basic Info.

Type Malleable Iron Box Finish Hot DIP Galvanized Transport Package 10PCS/ Box, 10 Box/ Carton Specification 20mm, 25mm Trademark TOPELE/ OEM Origin China HS Code 7307110000 Production Capacity 500000

Product Description

hot dip galvanized gi conduit fitting circular junction box  terminal one way


Description:

BS4568/BS31 Conduit Malleable iron circular Junction Box  Terminal 1 way ,Through 2 Way, Angle 2 way , Tee 3 way, Intersection 4 way, Back outlet , Branch two way U way, Branch Three way Y way, Twin Through way H way .



Marking: TOPELE, as customer request, can open mold as customer own brand.



Material: Malleable iron/ Aluminun/ steel

Standard: BS4568/BS31

Size: 20mm, 25mm,32mm, 3/4", 1"



Note:



1.With tapped hole in base for earthing screw.

2.Supplied with covers and fixing screws.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish galvanized;





Other Junction Boxes:



20mm 25mm 32mm BS4568 malleable iron Circular Box



One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, branch two way box (U), branch three way box (Y), twin through way box (H) available



We also provide different material circular box , both steel , malleable iron , aluminum die cast are available .

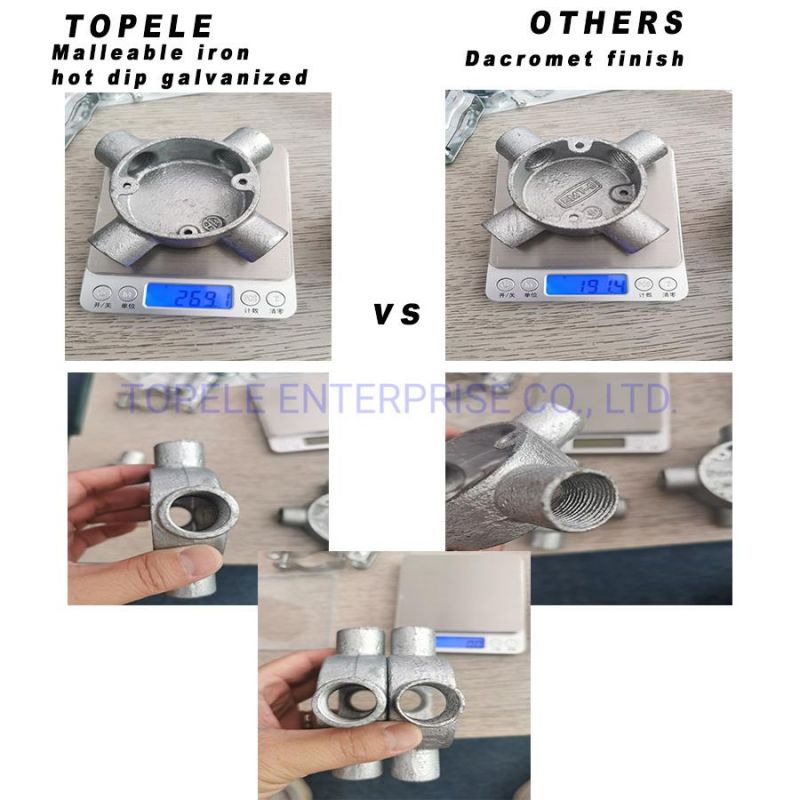

Different Quality with other supplier

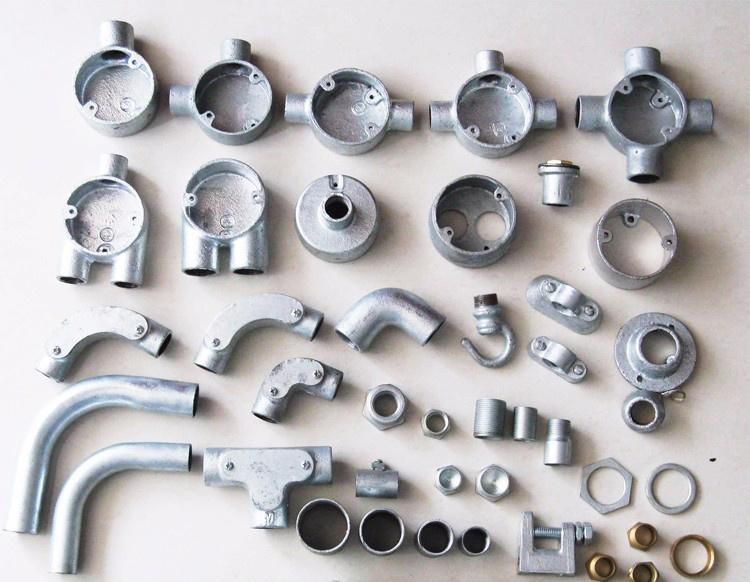

BS4568 conduit accessories
