New UL Ce Professional Factory Price 2 New UL Ce Cable Gland M63X1.5
Wenzhou Zhechi Electric Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Surface Treatment：Polishing
- Color：Black,Gray,Other Color Available Upon Request
- IP Rating：IP68
- Material：Nylon
- Type：Straight Head
Base Info
- MOQ：1000PCS
- Fire Proof Level：UL94V-2
- Cable Range：14-20mm
- Thread O.D：30
- Feature：Seal Part Hold Cable Firmly
- Thread Length：15mm
- Transport Package：Common Packing: Inner Plastic Bag + Export Carto
- Specification：PG9, PG11, M8*1.25
- Trademark：ZC
- Origin：China
- HS Code：39174000
- Production Capacity：500000PCS,Year

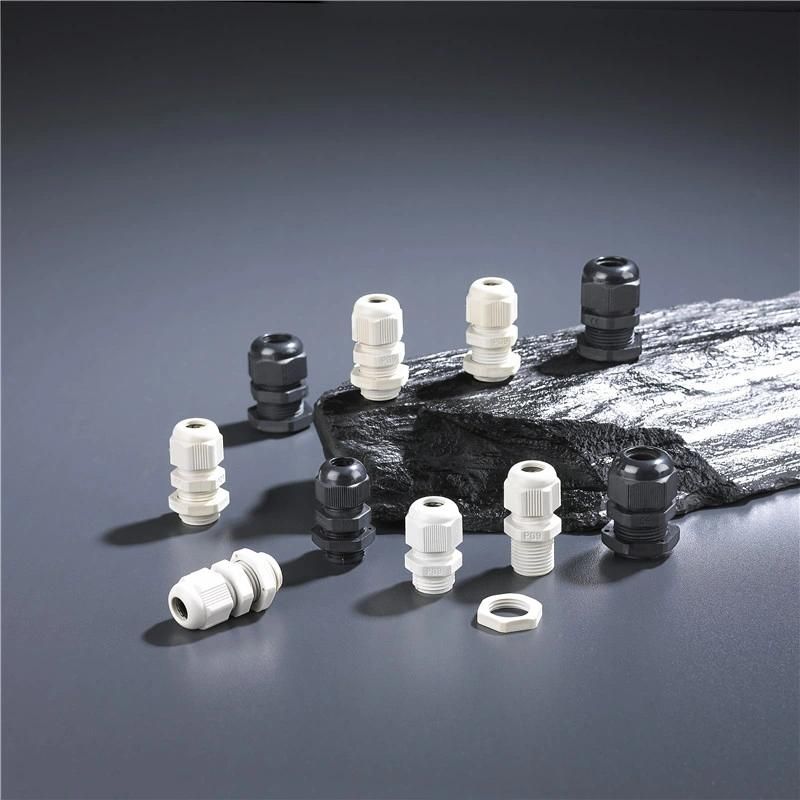

Description
Basic Info.
MOQ 1000PCS Fire Proof Level UL94V-2 Cable Range 14-20mm Thread O.D 30 Feature Seal Part Hold Cable Firmly Thread Length 15mm Transport Package Common Packing: Inner Plastic Bag + Export Carto Specification PG9, PG11, M8*1.25 Trademark ZC Origin China HS Code 39174000 Production Capacity 500000PCS/YearProduct Description
Product Description
Thread:PG,Metric,G,and NPT thread.

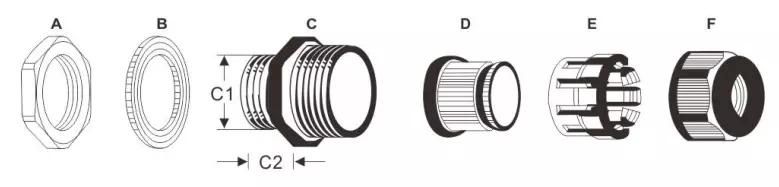

Materials:UL approved Nylon PA66(Flammability UL 94v-2) for A.C.E parts,(Accept to make flammability UL 94V-0);EPDM rubber for B.D parts,(Also accept to make supper rubber:resist high temperature rubber,resist strong acid/alkali,etc).
Protection degree:IP68
Working temperature:-40ºC to 100ºC
Features:The claws and seals of excellent design,sealing nut have a "click" sound and re-open,can hold cable firmly and have wider cable range.Rwsistant to salt water,weak acid,alcohol,oil,grease and common solvency.
Colours:Black(RAL9005),gray(RAL7035),other color available upon request
Production Paraneter
| Product Model | Applicable to cable | Thread diameter | Thread length | Wrench diameter |
| PG 7 | 3-6.5 | 12.5 | 8 | 16 |
| PG 9 | 4-8 | 15.2 | 8 | 19 |
| PG 11 | 5-10 | 18.6 | 8 | 22 |
| PG13 .5 | 6-12 | 20.4 | 10 | 24 |
| PG 16 | 10-14 | 22.5 | 10 | 27 |
| PG19 | 12-16 | 24 | 10 | 27 |
| PG21 | 13-18 | 28.3 | 10 | 33 |
Specification:
