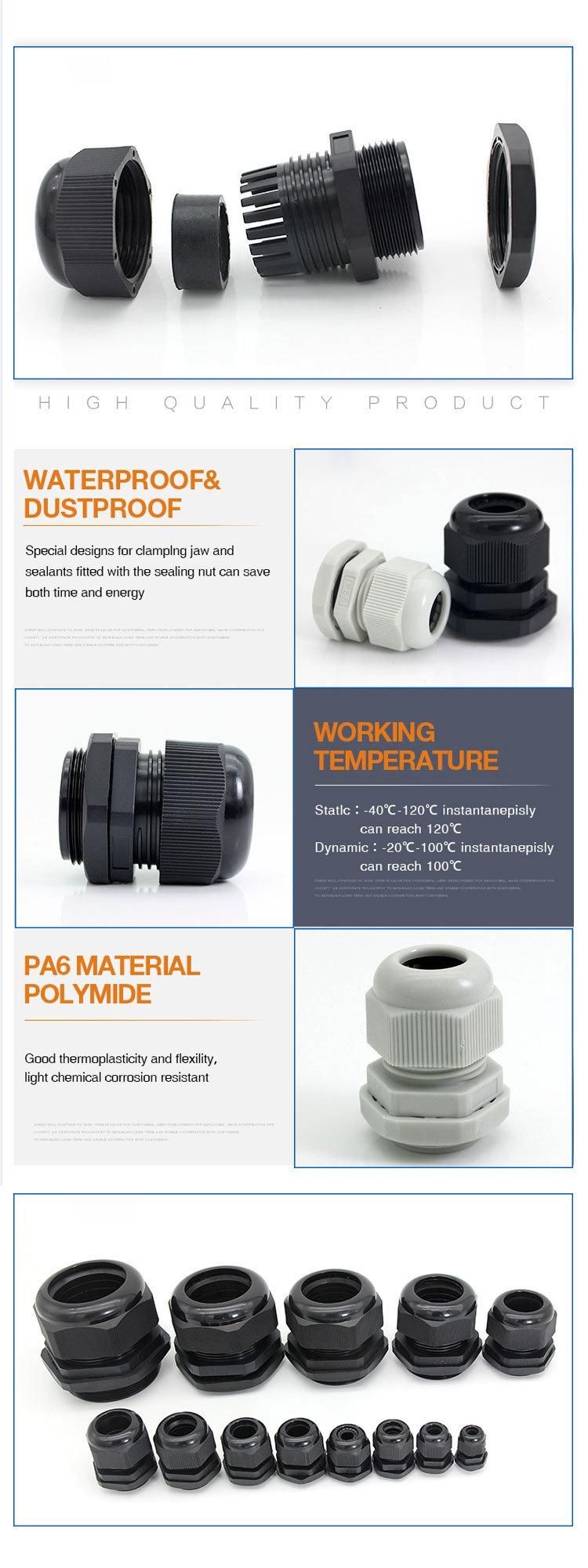

PP/PVC Nylon Cable Gland Pg9 Cheap Good Quality IP68
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE, Reach
- Surface Treatment：Baking Paint
- Color：White
- IP Rating：IP68
- Material：Nylon
- Type：Straight Head
Base Info
- Model NO.：PG9
- Samples：Free
- Transport Package：Export Carton
- Specification：pg9
- Trademark：JXLJQ
- Origin：Zhejiang Province, China
- HS Code：33039649
- Production Capacity：80000 PCS,Year
Description
Nylon Cable Gland--PG threadProduct Code Thread AG Cable range
(mm) Thread O.D
(mm) Thread length
GL(mm) Spanner Size
(mm) JX-NLPG7A PG7 3-6.5 12.5 9 18/16 JX-NLPG7B PG7 2-5 12.5 9 18/16 JX-NLPG9A PG9 4-8 15.2 9 22/19 JX-NLPG9B PG9 2-6 15.2 9 22/19 JX-NLPG11A PG11 5-10 18.6 9 24/22 JX-NLPG11B PG11 3-7 18.6 9 24/22 JX-NLPG13.5A PG13.5 6-12 20.4 9 27/24 JX-NLPG13.5B PG13.5 5-9 20.4 9 27/24 JX-NLPG16A PG16 10-14 22.5 10 30/27 JX-NLPG16B PG16 7-12 22.5 10 30/27 JX-NLPG19A PG19 12-16 24 10 30/28 JX-NLPG19B PG19 10-13 24 10 30/28 JX-NLPG21A PG21 13-18 28.3 12 36/33 JX-NLPG21B PG21 9-16 28.3 12 36/33 JX-NLPG25A PG25 16-21 30 12 37/35 JX-NLPG25B PG25 13-18 30 12 37/35 JX-NLPG29A PG29 18-25 37 12 45/42 JX-NLPG29B PG29 13-20 37 12 45/42 JX-NLPG36A PG36 22-32 47 17 58/52 JX-NLPG36B PG36 20-26 47 17 58/52 JX-NLPG42A PG42 32-38 54 19 65/60 JX-NLPG42B PG42 25-31 54 19 65/60 JX-NLPG48A PG48 37-44 59.3 19 70/69 JX-NLPG48B PG48 25-36 59.3 19 70/69 JX-NLPG63A PG63 42-50 71 27 83/75 JX-NLPG63B PG63 32-40 71 27 83/75
Welcome to send inquiry to us..(We provide customization service)
(mm)
(mm)
GL(mm)
(mm)
Welcome to send inquiry to us..(We provide customization service)
