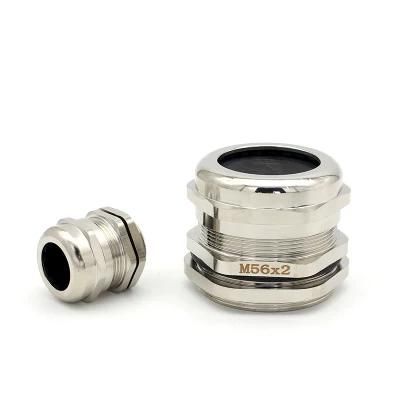

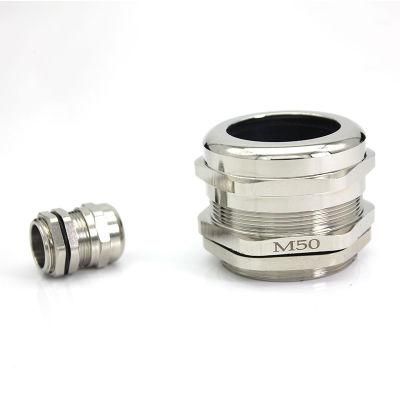

Brass Double-Locked Cable Gland M20 Waterproof Cable Gland with Locknut
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP68
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：Metric Thread,PG Thread
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
Product Code
Thread O.D
Panel Mounting Hole (mm)
Cable range (mm)
Body Height (mm)
Thread length GL(mm)
Spanner Size (mm)
JX-M12A-DL
12
12-12.3
3-6.5
25
5
14
JX-M12B-DL
12
12-12.3
4-8
27
6
17
JX-M14-DL
14
14-14.3
4-8
27
6
17
JX-M16A-DL
16
16-16.3
4-8
27
6
17
JX-M16B-DL
16
16-16.3
5-10
29
6
20
JX-M18-DL
18
18-18.3
5-10
29
6
20
JX-M20A-DL
20
20-20.3
6-12
31
6.5
22
JX-M20B-DL
20
20-20.3
10-14
31
6.5
24
JX-M22-DL
22
22-22.3
10-14
31
6.5
24
JX-M24-DL
24
24-24.3
10-14
31
6.5
24/27
JX-M25-DL
25
25-25.3
13-18
37
7
30
JX-M27-DL
27
27-27.3
13-18
37
7
30
JX-M28-DL
28
28-28.3
13-18
37
7
30
JX-M30-DL
30
30-30.3
13-18
37
8
30/32
JX-M32-DL
32
32-32.3
18-25
42
8
40
JX-M33-DL
33
33-33.3
18-25
42
8
40
JX-M36-DL
36
36-36.3
18-25
42
8
40
JX-M37-DL
37
37-37.3
18-25
42
8
40
JX-M40-DL
40
40-40.3
22-32
48
8
50
JX-M42-DL
42
42-42.3
22-32
48
8
50
JX-M47-DL
47
47-47.3
22-32
48
8
50
JX-M48-DL
48
48-48.3
22-32
48
8
50/52
JX-M50-DL
50
50-50.3
32-38
50
9
57
JX-M54-DL
54
54-54.3
32-38
50
9
57
JX-M56-DL
56
56-56.3
32-38
50
9
57/59
JX-M60-DL
60
60-60.3
37-44
51
10
64
JX-M63-DL
63
63-63.3
37-44
51
10
64/68
JX-M64-DL
64
64-64.3
37-44
51
10
64
JX-PG7-DL
12.5
12.5-12.8
3-6.5
25
5
14
JX-PG9-DL
15.2
15.2-15.5
4-8
27
6
17
JX-PG11-DL
18.6
18.6-18.9
5-10
29
6
20
JX-PG13.5-DL
20.4
20.4-20.7
6-12
31
6.5
22
JX-PG16-DL
22.5
22.5-22.8
10-14
31
6.5
24
JX-PG21-DL
28.3
28.3-28.6
13-18
37
7
30
JX-PG29-DL
37
37-37.3
18-25
42
8
40
JX-PG36-DL
47
47-47.3
22-32
48
8
50
JX-PG42-DL
54
54-54.3
32-38
50
9
57
JX-PG48-DL
59.3
59.3-59.6
37-44
51
10
64
