• Model NO.：LT-GHST
• Raw Material：Radiation Cross-Linked Polyolefin
• Shrink Ratio：Mini 2.5: 1
• Operation Temperature：-55 ° C to 125 ° C
• Package：50~100 Meters Per Roll
• Transport Package：Carton
• Specification：UL 224 Vw-1c-UL CSA C 22.2 Oft
• Trademark：LONTOM
• Origin：Shanghai, China
• HS Code：39173200
• Production Capacity：100, 000, 000 Meters Yearly

Basic Info.

Model NO. LT-GHST Raw Material Radiation Cross-Linked Polyolefin Shrink Ratio Mini 2.5: 1 Operation Temperature -55 ° C to 125 ° C Package 50~100 Meters Per Roll Transport Package Carton Specification UL 224 Vw-1c-UL CSA C 22.2 Oft Trademark LONTOM Origin Shanghai, China HS Code 39173200 Production Capacity 100, 000, 000 Meters Yearly

Product Description

Heat Shrink Tubing For Gas Hose
1. Bright yellow color

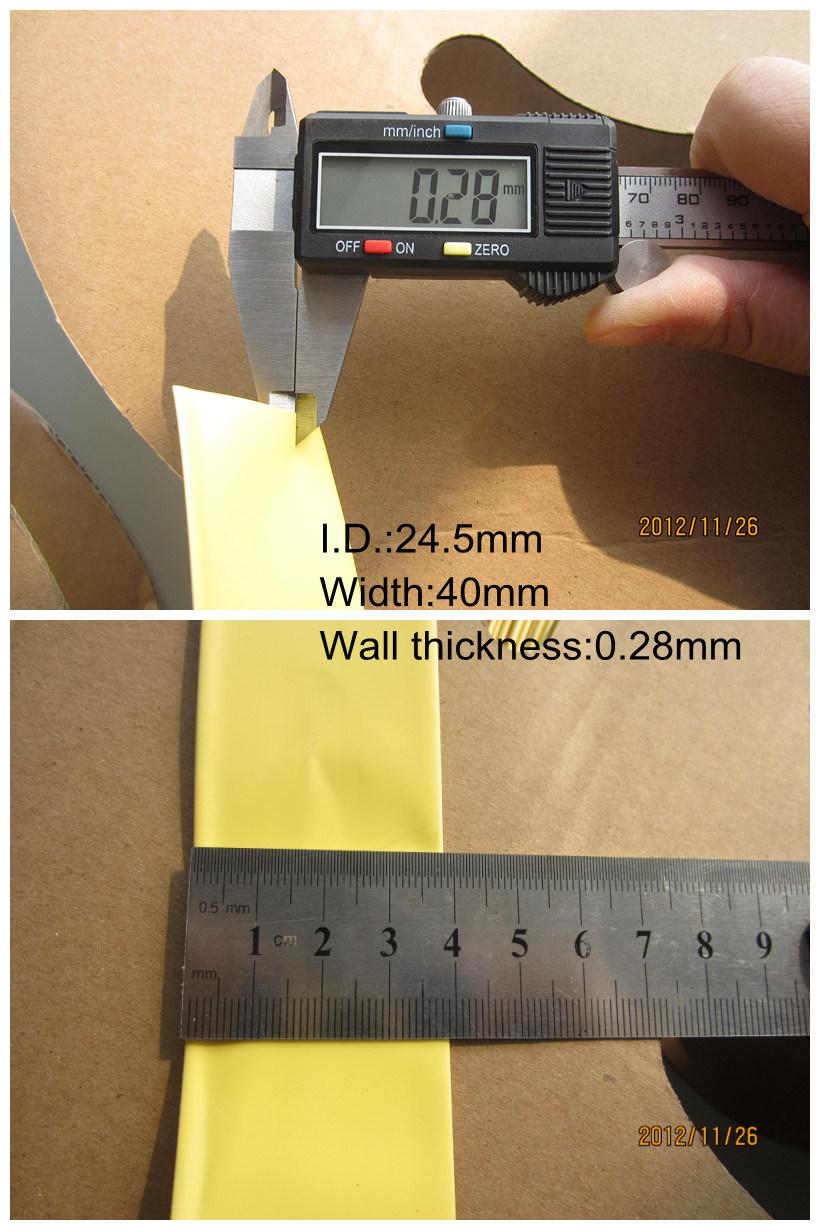

2. I. D.: 24.5mm~77.0mm
3. Flexible marker shrink tubing
4. Shrink ratio: 2.5: 1

LT-GHST is flexible heat shrinkable tube, which special designed for the protecting and marking the flexible gas hose.



Main Properties:
1. Radiation cross-linked polyolefin

2. Shrink ratio: Mini 2.5: 1

3. Shrink at Temperature 90° C, Full recovery at 110° C

4. Standard Color Yellow (other color can be available after requested)

5. Operation Temperature -55ºC to 125 ºC

6. VW-1

7. UV, RoHS, Halogen Free

Application:

Protecting & marking gas hose

Size	Before Shrinking I. D. (mm)	After Recovery I. D. (mm)	After Recovery Wall Thickness(mm)
24.5/9.5	≥ 24.5	≤ 9.5	0.7
27.0/12.7	≥ 27.0	≤ 12.7	0.63
31.0/12.7	≥ 31.0	≤ 12.7	0.7
40.0/19.0	≥ 40.0	≤ 19.0	0.7
51.0/25.4	≥ 51.0	≤ 25.4	0.7
65.0/32.5	≥ 65.0	≤ 32.5	0.7
77.0/38.0	≥ 77.0	≤ 38.0	0.7
