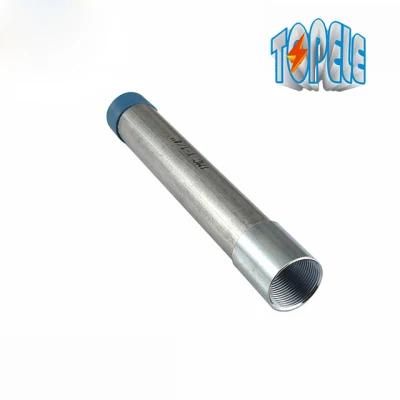

Galvanized Steel Rigid Conduit IMC Pipe Electrical Metal Conduit with UL Certificated
HANGZHOU ANAKO IMPORT AND EXPORT CO., LTD.- Color：White
- IP Rating：IP68
- Surface Treatment：Galvanised
- Application：Underground
- Material：Metallic
- Certification：UL
Base Info
- Model NO.：ANK
- Transport Package：Package
- Specification：1,2"-6"; 1,2"-4"
- Origin：China
Description
RMC RIGID METAL CONDUITSize outside Diameter Inside Diameter Wall Thickness Length in. mm in. mm in. mm in. mm 1/2" 0.840 21.34 0.632 16.50 0.104 2.64 10 3050 3/4" 1.050 26.67 0.836 21.23 0.107 2.72 10 3050 1" 1.315 33.40 1.063 27.00 0.126 3.20 10 3050 1-1/4" 1.660 42.16 1.394 35.41 0.133 3.38 10 3050 1-1/2" 1.900 48.26 1.624 41.25 0.138 3.51 10 3050 2" 2.375 60.33 2.083 52.91 0.146 3.71 10 3050 2-1/2" 2.875 73.03 2.489 63.22 0.193 4.90 10 3050 3" 3.500 88.90 3.090 78.49 0.205 5.21 10 3050 3-1/2" 4.000 101.60 3.570 90.68 0.215 5.46 10 3050 4" 4.500 114.30 4.050 102.87 0.225 5.72 10 3050 5" 5.563 141.30 5.073 128.85 0.245 6.22 10 3050 6" 6.626 168.30 6.094 154.78 0.266 6.76 10 3050 Size Outside Diameter Minimum wall thickness Length without coupling Nominal Minimum Maxmum in. in. mm in. mm in. mm in. mm in. mm 1/2" 0.815 20.7 0.810 20.6 0.820 20.8 0.070 1.78 9"-11-1/4" 3029.0 3/4" 1.029 26.1 1.024 26.0 1.034 26.3 0.075 1.91 9"-11-1/4" 3029.0 1" 1.290 32.8 1.285 32.6 1.295 32.9 0.085 2.16 9"-11" 3022.6 1-1/4" 1.638 41.6 1.630 41.4 1.645 41.8 0.085 2.16 9"-11" 3022.6 1-1/2" 1.883 47.8 1.875 47.6 1.890 48.0 0.090 2.29 9"-11" 3022.6 2" 2.360 59.9 2.352 59.7 2.367 60.1 0.095 2.41 9"-11" 3022.6 2-1/2" 2.857 72.6 2.847 72.3 2.867 72.8 0.140 3.56 9"-10-1/2" 3099.9 3" 3.476 88.3 3.466 88.0 3.486 88.5 0.140 3.56 9"-10-1/2" 3099.9 3-1/2" 3.971 100.9 3.961 100.6 3.981 101.1 0.140 3.56 9"-10-1/4" 3003.6 4" 4.466 113.3 4.456 113.2 4.476 113.7 0.140 3.56 9"-10-1/4" 3003.6
Product material: steel with uniform zinc coating
Color: white
Property: made of the high quality steel, good corrosion resistance, suitable for the mechanical equipment in wet, harsh environment;
Application: common in commercial and industrial buildings, such as traffic system engineering and chemical industries
Usage: protect wire installation
How to use: conduits are connected with each other, and to equip with clamp piping system fittings
COMPANY PROFILE
Specificalized in EMT, RMC, IMC Conduit&Fittings as well as Fiexible Conduit&Fittings.
Located in Hangzhou, Zhejiang, our company have our own professional factory which was established in 1994 and have a lot of experience about this industry. Therefore, we could guarantee products at a competitive price and high quality.

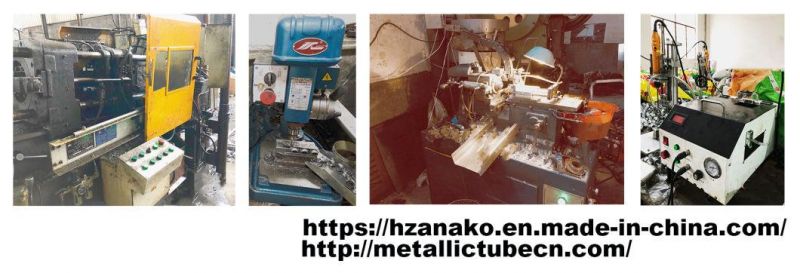

Production
At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.
we are eager to look forward to hearing from you soon.
Our Service
1)Excellent Quality: The material we use into products has good quality. Meanwhile, we pay the most attention to the quality of products and package.
2)Suitable Price: Due to the professional factory, we could offer you the suitable price as well as endurable products.
3)Convenience For Purchasing: You can find conduit and all the related fittings here. For example, EMT, the related connectors and couplings, starps, beam clamps and so on.
4)Professional Service: We could provide you with detailed information and timely after-sales service.
5)Delivery Time: We can easily control the quality, delivery time, packing details, printings to meet the requirement from our customers.
6)OEM : To bring you with better profits, we can also pack the products with your own brand to avoid the direct price competition.
FAQ
Q: how can I get the price list? Please watch this message seriously
A: You should provide some information about your company first. In request, we will give you the price list in a minute.
Contact Us
Mr. Steven
HANGZHOU ANAKO IMPORT AND EXPORT CO.,LTD.
TEL: +86-0571 82238678
FAX: +86-0571 82238679
CEL: +86 13606710015
Product material: steel with uniform zinc coating
Color: white
Property: made of the high quality steel, good corrosion resistance, suitable for the mechanical equipment in wet, harsh environment;
Application: common in commercial and industrial buildings, such as traffic system engineering and chemical industries
Usage: protect wire installation
How to use: conduits are connected with each other, and to equip with clamp piping system fittings
