UV Black Flame Resistant Plastic Anchor Tension Clamp 16-25mm2 for Aerial Bundle Cable

Yueqing Zhicheng Electrical Equipment Co., Ltd.
  • Certification：RoHS, ISO
  • Material：Plastic
  • Type：Cable Clamp
  • Body Material：Nylon Plus Fiber Glass
  • International Standard：NFC33-041
  • Loading Capacity：800n

Base Info

  • Model NO.：DCR-1
  • Suitable Cable Use：Aerial Bundle Cable
  • Voltage：10kVA
  • Wire Scope：2X4,4X25
  • Customized：Customized
  • Condition：New
  • Flame Retardant：High
  • Transport Package：120pcs,carton
  • Specification：CE
  • Trademark：ZHC
  • Origin：China
  • HS Code：85369090
  • Production Capacity：200000PCS,Month

Description

Basic Info.

Model NO. DCR-1 Suitable Cable Use Aerial Bundle Cable Voltage 10kVA Wire Scope 2X4/4X25 Customized Customized Condition New Flame Retardant High Transport Package 120pcs/carton Specification CE Trademark ZHC Origin China HS Code 85369090 Production Capacity 200000PCS/Month

Product Description

 Anchor Tension Clamp

Material: nylon plus fiber glass, stainless steel

Product property: They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. They are in accordance with NFC 33-041

Similiar Products of  Anchor Tension Clamp
UV Black Flame Resistant Plastic Anchor Tension Clamp 16-25mm2 for Aerial Bundle Cable

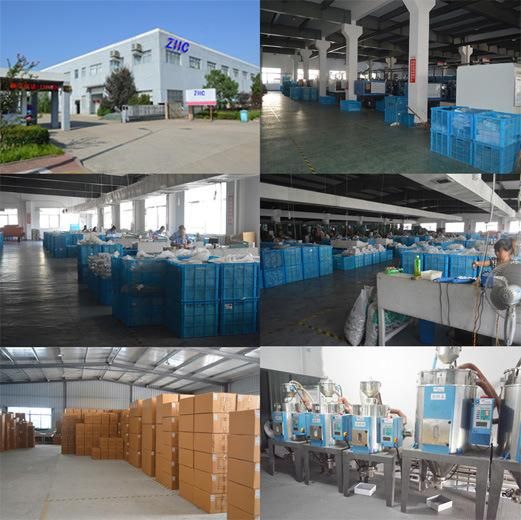

Factory of Anchor Clamp
UV Black Flame Resistant Plastic Anchor Tension Clamp 16-25mm2 for Aerial Bundle Cable
Certificate of Anchor Clamp
UV Black Flame Resistant Plastic Anchor Tension Clamp 16-25mm2 for Aerial Bundle Cable

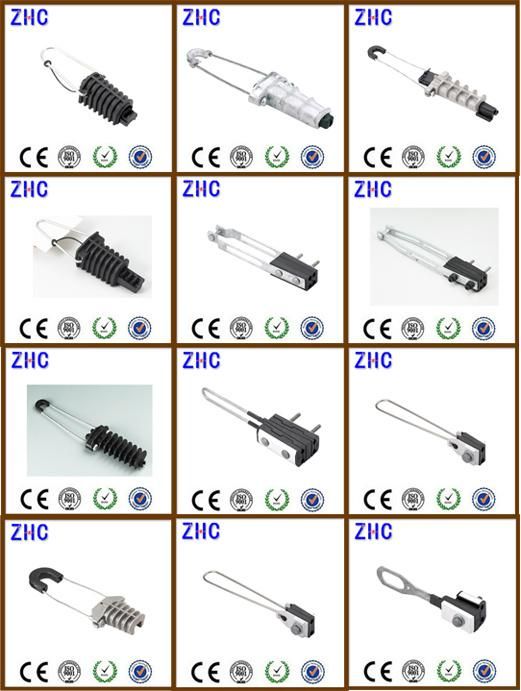

Full Range of  Anchor Tension Clamp
CodeMaterialCross Section (mm2)Breaking LoadStandard
PAM-06Aluminum Alloy16-20mm2800NNFC33041
PAM-07Aluminum Alloy16-25mm2800NNFC33041
PAM-08Aluminum Alloy16-25mm21KNNFC33041
DR1500Aluminum Alloy54.6-70mm21.5KNNFC33041
DR1600Aluminum Alloy54.6-70mm21.2KNNFC33041
JBG-1Aluminum Alloy54.6-70mm21.2KNNFC33041
STANylon + Fibre glass1x10/1x16 mm2300NNFC33041
STBNylon + Fibre glass2x16/2x25mm2300NNFC33041
STCNylon + Fibre glass4x16/4x25mm2300NNFC33041
STDNylon + Fibre glass1x16/1x70mm2300NNFC33041
LA1Nylon + Fibre glass4x16/4x25mm2300NNFC33041
LA2Nylon + Fibre glass2x6/ 2x16mm2300NNFC33041
DCR-1Nylon + Fibre glass2x4/4x25mm2300NNFC33041
DCR-2Nylon + Fibre glass2x4/4x25mm2300NNFC33041
2.1Nylon + Fibre glass16-25mm2300NNFC33041
PA1500Nylon + Fibre glass25-50mm2800NNFC33041
PA2000Nylon + Fibre glass54.6-70mm2800NNFC33041
NES-B1Mild Steel4x16-50mm21.5KNNFC33041
NES-B2Mild Steel4x25-120mm21.5KNNFC33041
NES-B3Mild Steel4x25-120mm21.5KNNFC33041
NES-B4Mild Steel4x95-150mm21.5KNNFC33041
ZC116Aluminum Alloy4X25-35mm21.5KNNFC33041
ZC117Aluminum Alloy4x50-120mm21.5KNNFC33041
ZC118Aluminum Alloy4x50-120mm21.5KNNFC33041
ZC157Aluminum Alloy2x16-35mm21.5KNNFC33041
ZC158Aluminum Alloy4x16-35mm21.5KNNFC33041
ZC160Aluminum Alloy2x16-35mm21.5KNNFC33041
ZC161Aluminum Alloy4x16-35mm21.5KNNFC33041
