Base Info
- Model NO.:HT 7-48
- Transport Package:Plastic Bag + Sticker + Exporting Carton,Tray
- Specification:UL 94
- Trademark:HONT
- Origin:Wenzhou, Zhejiang, China
- HS Code:39269090
- Production Capacity:10000000bag,Year
Description
Basic Info.
Model NO. HT 7-48 Transport Package Plastic Bag + Sticker + Exporting Carton/Tray Specification UL 94 Trademark HONT Origin Wenzhou, Zhejiang, China HS Code 39269090 Production Capacity 10000000bag/YearProduct Description

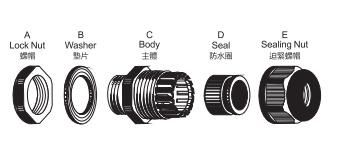

MENTAL CABLE GLAND1.Material:Nickel-plated brass
2.Fixture pack:PA(NYLON),UL94
3.Hermetic seal:NBR,EPDM
4.Protection degree:IP68-10
5.Working temperature:-40ºC to 100ºC. Instantaneous heat resistance up to 120ºC
ITEM NO. | Thread | φ (mm) | H(mm) | GL(mm) | mm |
HT-7 | PG7 | 3-6.5 | 19 | 5 | 14 |
HT-7 | PG7 | 2-5 | 19 | 5 | 14 |
HT-9 | PG9 | 4-8 | 21 | 6 | 17 |
HT-9 | PG9 | 2-6 | 21 | 6 | 17 |
HT-11 | PG11 | 5-10 | 22 | 6 | 20 |
HT-11 | PG11 | 3-7 | 22 | 6 | 20 |
HT-13.5 | PG13.5 | 6-12 | 24 | 6.5 | 22 |
HT-13.5 | PG13.5 | 5-9 | 24 | 6.5 | 22 |
HT-16 | PG16 | 10-14 | 23 | 6.5 | 24 |
HT-16 | PG16 | 7-12 | 23 | 6.5 | 24 |
HT-21 | PG21 | 13-18 | 24 | 7 | 30 |
HT-21 | PG21 | 9-16 | 24 | 7 | 30 |
HT-29 | PG29 | 18-25 | 29 | 8 | 40 |
HT-29 | PG29 | 13-20 | 29 | 8 | 40 |
HT-36 | PG36 | 22-32 | 35 | 8 | 50 |
HT-36 | PG36 | 20-26 | 35 | 8 | 50 |
HT-42 | PG42 | 32-38 | 37 | 9 | 57 |
HT-42 | PG42 | 25-31 | 37 | 9 | 57 |
HT48 | PG48 | 37-44 | 38 | 10 | 64 |
HT48 | PG48 | 29-35 | 38 | 10 | 64 |
FAQ
Q1. What's the MOQ?
USD3000,negotiatable for trial order.
Q2. What's the delivery time for sample order?
The proofing time is 5-7 days.
Q3. What's the delivery time for first order?
Normally 25-30 days,during busy season,it's is 30-45 days accordint to your purchase quantity.
Q4. What's the payment terms?
We accept T/T; L/C,other way please consult by email.
Q5. How to pay for the order?
30% deposit ,70% balance received before B/L.
Q6. Could you offer samples?
Available.
Q7. Can you give the CIF price?
CIF price we will require for the detailed quantity and size.
Q8. What's the package?
Cartoon box.We can follow as your requested if you have special requested in packing.
