• Model NO.：JMA240 (95-240, 95-240)
• ABC Cable Access：Anti-UV Plastic Material
• Teeth Material：Copper,Aluminum
• Fireproof, Waterproof：Yes
• OEM：Accept
• Transport Package：Carton
• Specification：Main: 95-240 Branch: 95-240
• Trademark：JMA
• Origin：China
• HS Code：8536900000
• Production Capacity：5000000PCS,Year

Basic Info.

Model NO. JMA240 (95-240, 95-240) ABC Cable Access Anti-UV Plastic Material Teeth Material Copper/Aluminum Fireproof, Waterproof Yes OEM Accept Transport Package Carton Specification Main: 95-240 Branch: 95-240 Trademark JMA Origin China HS Code 8536900000 Production Capacity 5000000PCS/Year

Product Description

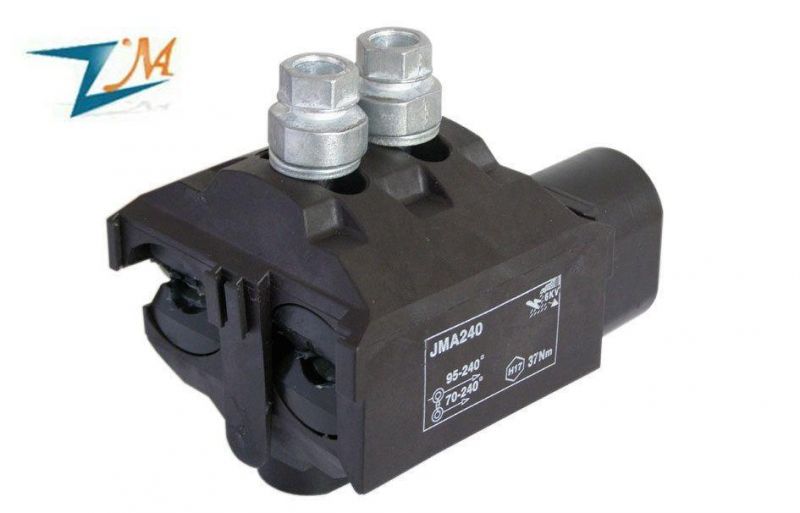

JMA240





Typical  Application:
Overhead low voltage insulated wire (cable) connection
Low-voltage insulation T line access
Building power distribution system cable support
Underground low voltage insulated wire (cable) connection
Street lighting system
Easy To Install:
No need to strip the insulation of the cable to do the cable branch, the connector is completely insulated.
Do not need to cut off the cable, you can branch at any position of the cable.
Easy to install and reliable, just use socket wrench, can be charged to install.
Use Safe:
Joint anti-distortion, shockproof, waterproof, anti-galvanized aging, without maintenance.
Has been successfully used for 30 years.
Cost Savings:
Installation space is minimal, saving bridge and civil costs.
Construction applications, do not need the terminal box, sub-line box, do not need the cable back to the line, save cable investment.
The cable + clamp costs less than other power supply systems.
Standard:
French standard, NFC33020
GB9327.1-88  GB9327.2-88  GB9327.3-88  GB2317-85  GB2123-4
Certified product:
EU CE certification ISO 9001-2008

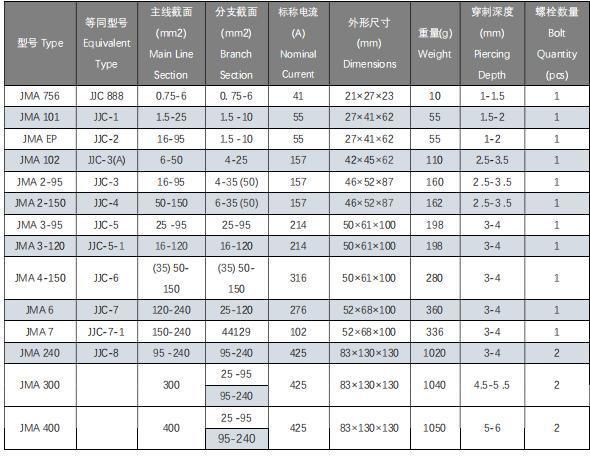

CAT.NO	CONDUCTORS MAIN                mm2	BRANCH	PIERCING DEPTH                      mm2	PATING CURRENT                 A	WEIGHT          G	PACKAGE
JMA240	95-240	95-240	≥3	239	310	60


Business Scope

Business Type	Manufacturer
Location	Chongqing,China
Year Established	2005
Main Product	1.Insulation Piercing Connector
	2.Aerial Network Accessories
	3.Suspension Clamp
	4.Parallel Groove Clamp
	5.Link Fitting
	6.Surge arrester/Insulator/Drop out fuse
	7.Pre-insulated Sleeve,Lug
	8.Bimetal Lugs
	9.Cable Tie
	10.Other ODM Products
Testing Supplier Vertification	Raw material from public company
Quality Management System	Test strictly done by ISO,EN,UL and other relative standard

Why Choose Ziyong Technology
1) Professional operation experience
2)Good quality guarantee (2 years)
3)Free sample are  available and available for quality test
4) Safe packaging and Prompt  delivery
5) All size can be customised
6) Choose our products! You'll get Professional technology support

Quality guaratee
Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI,CE,RoHs




FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.
