Flexible UL Pet Expandable Braided Wire Loom Sleeve
Xiamen QX Trade Co., Ltd.- Certification:CSA, UL, RoHS
- Color:Blue
- IP Rating:IP68
- Usage:Optical Cable, DVI Line, HDMI Cable
- Material:Polyester
- Type:Spiral Wrapping
Base Info
- Model NO.:BS-PET
- Customized:Customized
- Condition:New
- Flame Retardant:Normal
- Available Size:3mm~100mm Flat Width
- Classification:Pet Expandable Braided Wire Loom Sleeve
- Standard Color:Black, Grey
- Melt Point:240±10ºC
- Cutting Tool:Scissor and Hot Knife

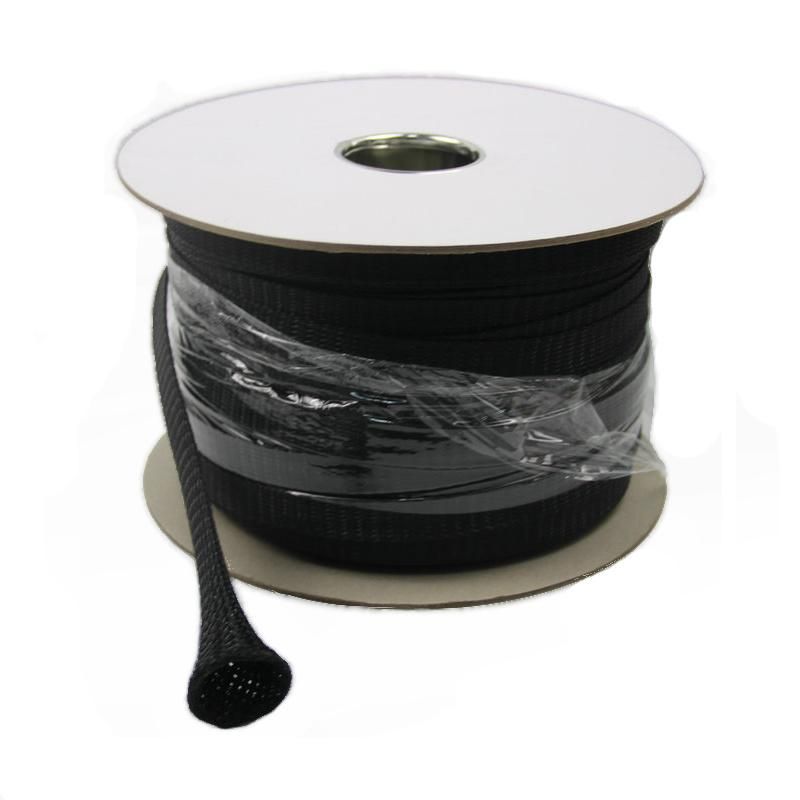

- Transport Package:500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification:3mm to 100mm Flat Width
- Trademark:EKO
- Origin:Fujian, China
- HS Code:4602900000
- Production Capacity:3000000 M,Month Pet Expandable Braided Wire Sleeve
Description
Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife

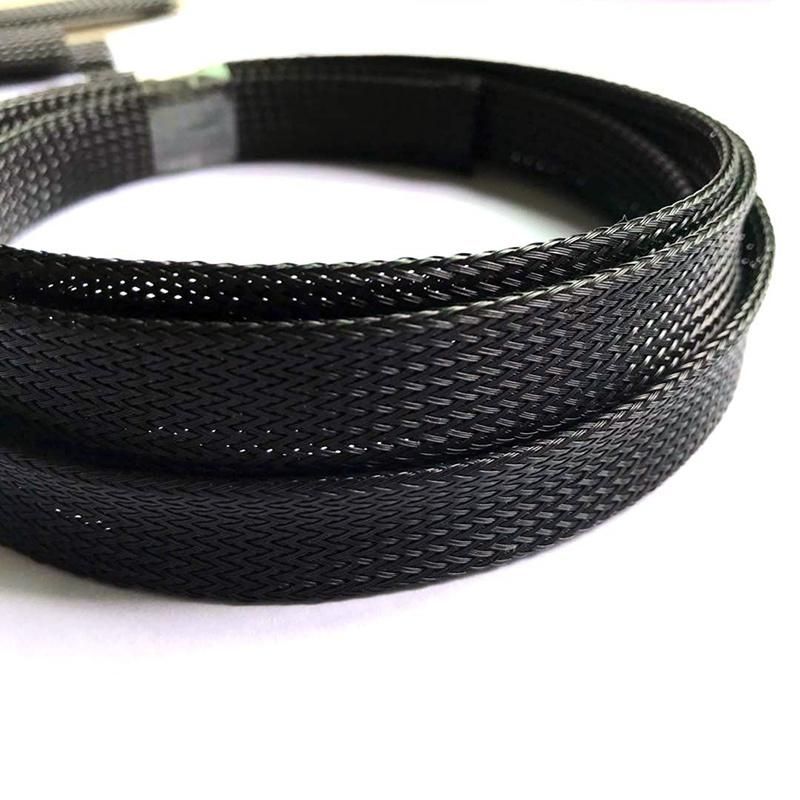

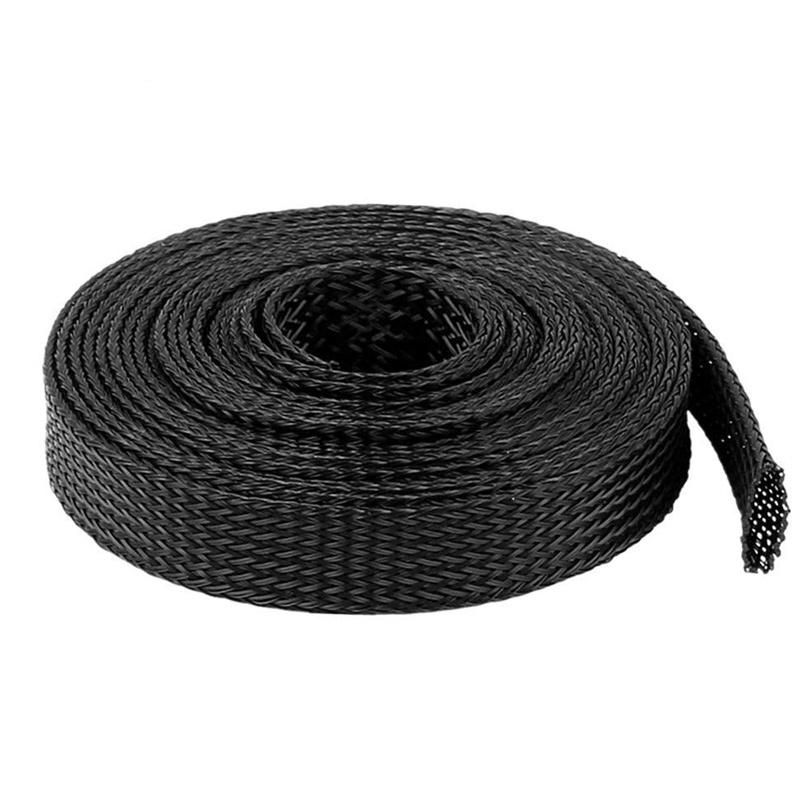

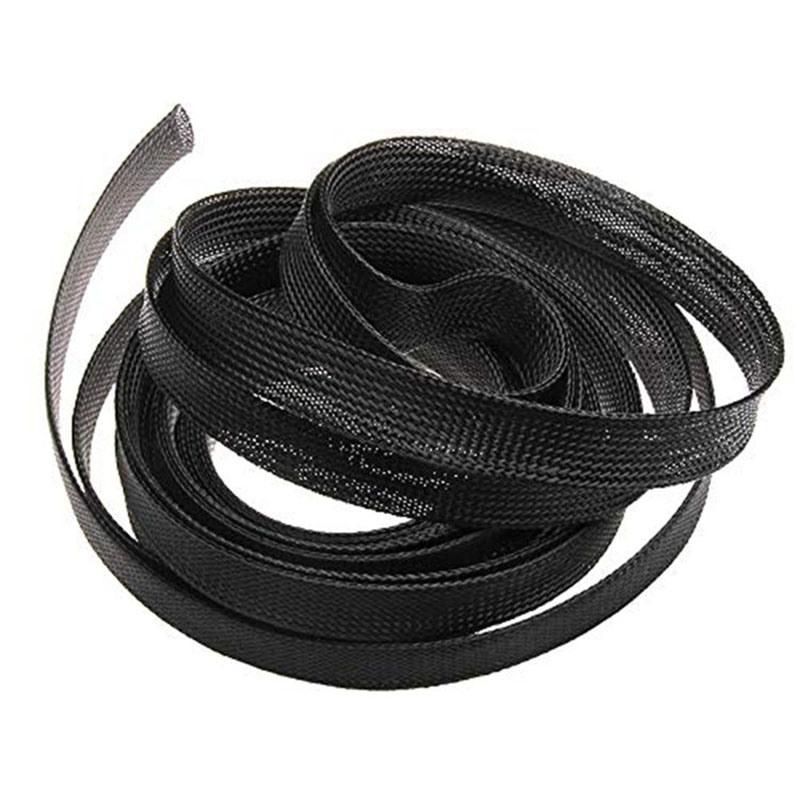

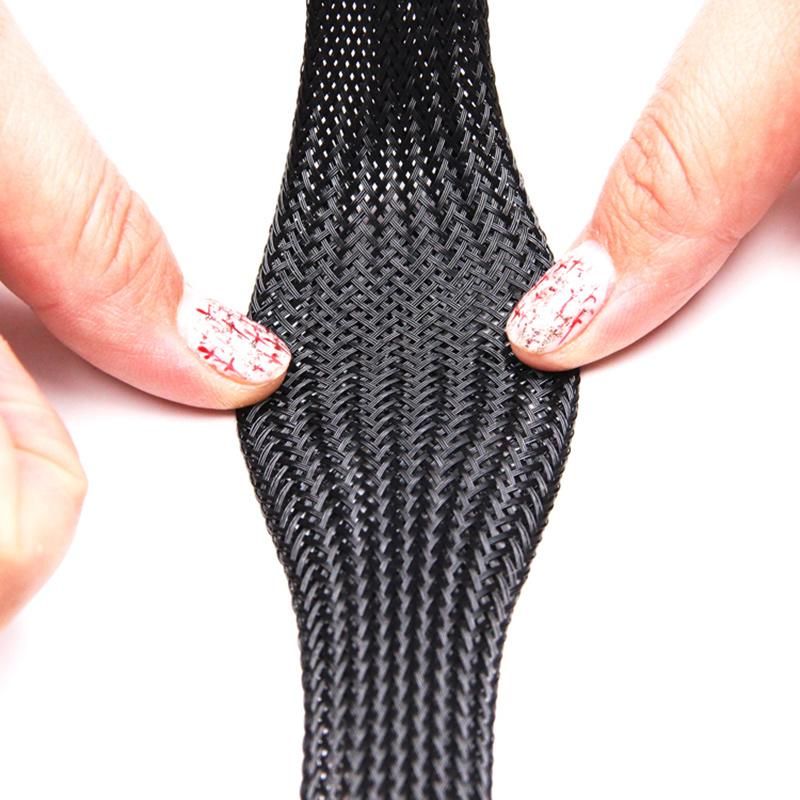

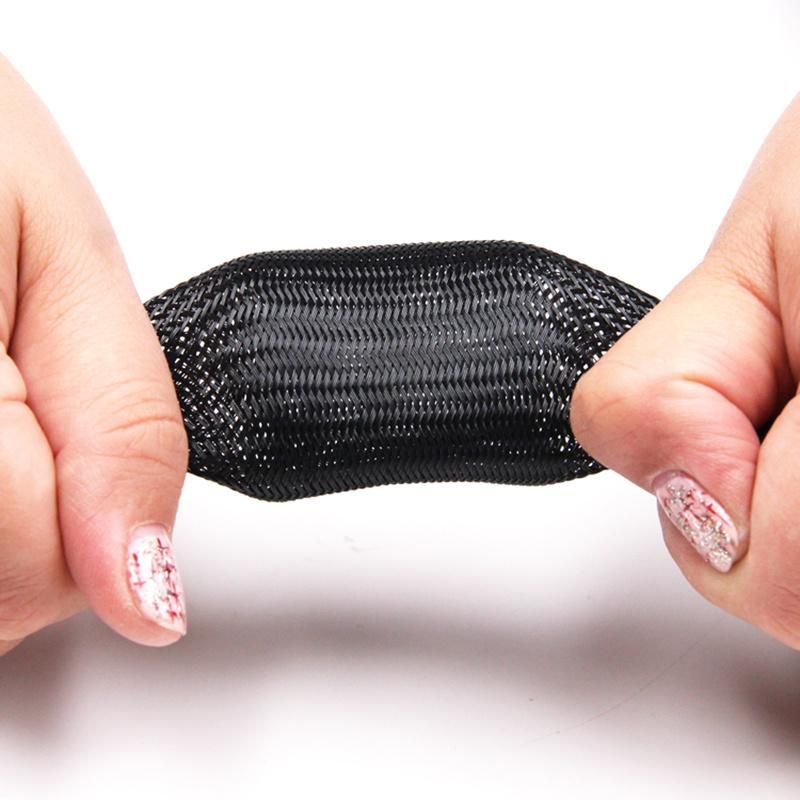

Image details
Application:

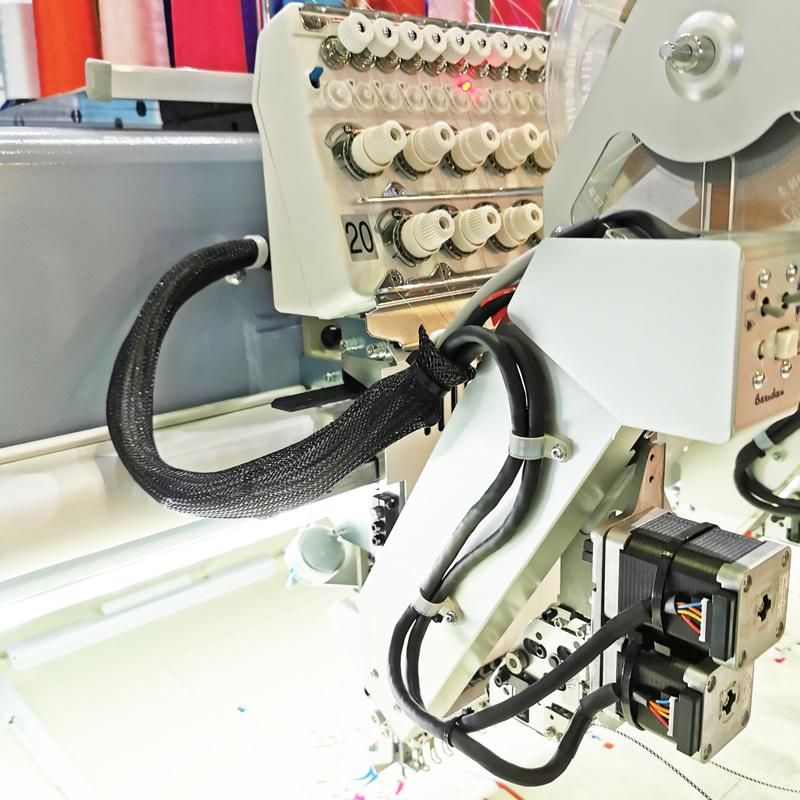

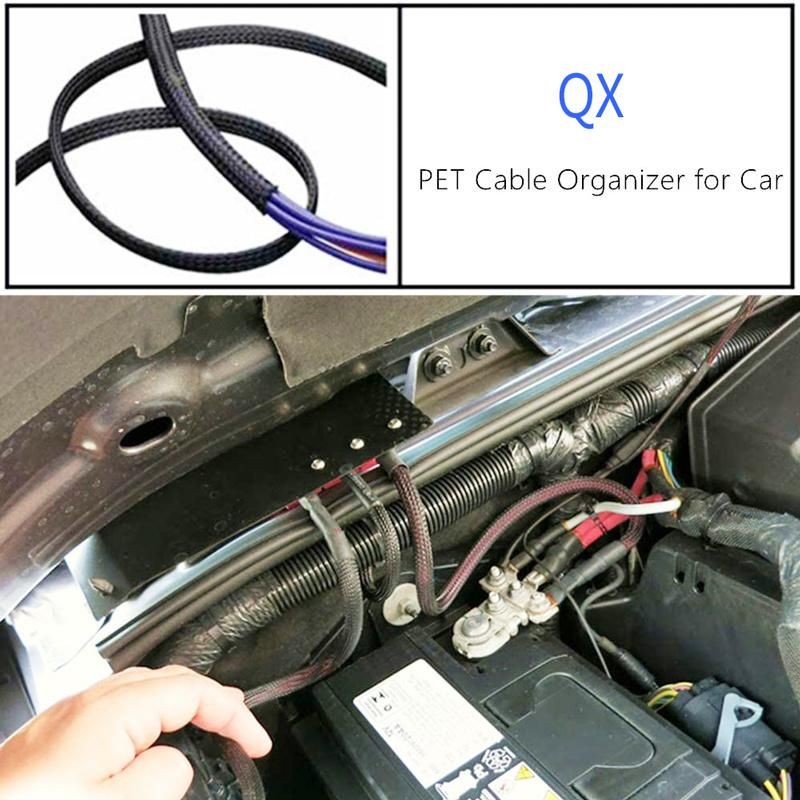

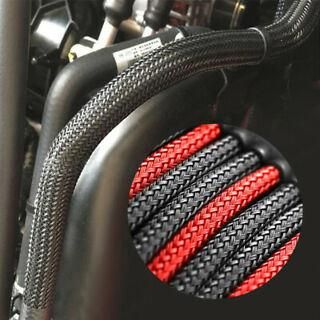

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
Datasheet
Part No
Size Expanded Range(mm) Packing (L) Flat width(mm) Min(I) Max.(O) M/spool BS-PET003 3 1 6 1000 BS-PET006 6 3 9 500 BS-PET008 8 5 16 350 BS-PET010 10 7 19 350 BS-PET012 12 8 24 300 BS-PET016 16 10 27 250 BS-PET019 20 14 30 200 BS-PET025 25 18 35 200 BS-PET032 32 20 50 150 BS-PET038 38 30 60 100 BS-PET045 45 35 75 100 BS-PET050 50 40 80 100 BS-PET064 64 45 105 100 BS-PET076 76 64 120 100
Company Proflie
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
Image details
Application:
It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
