• Model NO.：TK-MPO PANEL
• MPO/MTP Panel：3.5kgs
• Material：1.2mm Cold-Rolled Steel
• Color：Black or Customized
• Material Coating：Powder Coating
• Application：Network Communication
• Transport Package：Carton
• Specification：144 fibers
• Trademark：Takfly
• Origin：China
• HS Code：8538900000
• Production Capacity：1000

Basic Info.

Model NO. TK-MPO PANEL MPO/MTP Panel 3.5kgs Material 1.2mm Cold-Rolled Steel Color Black or Customized Material Coating Powder Coating Application Network Communication Transport Package Carton Specification 144 fibers Trademark Takfly Origin China HS Code 8538900000 Production Capacity 1000

Product Description

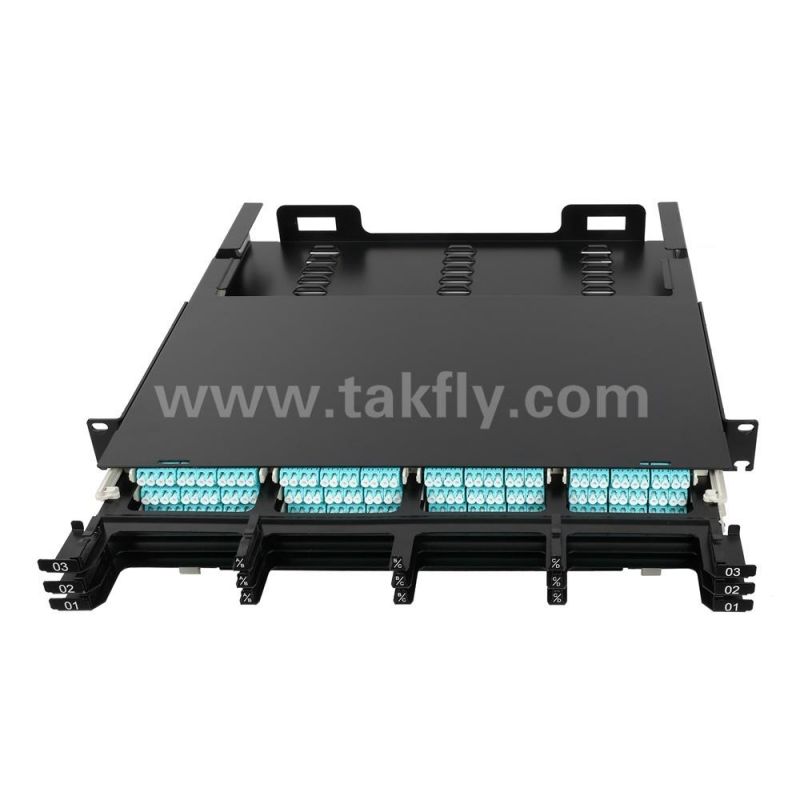

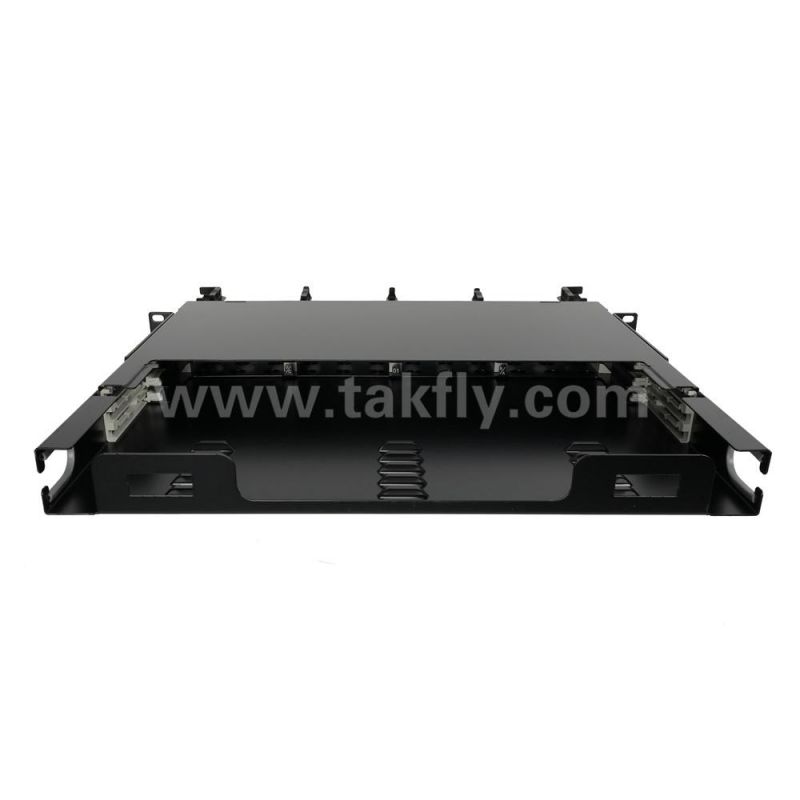

High Density 1U 144fibers MPO/MTP Patch Panel
Description:

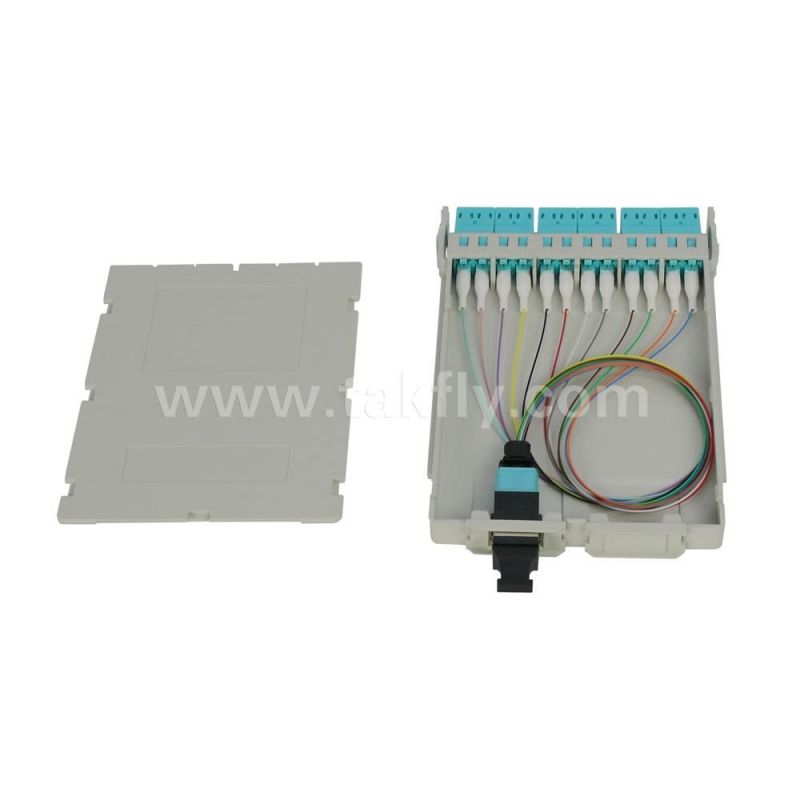

Takfly series rackmounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12 fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.



Features:
Up to 12 Small/MTP modules in 1U Multiple adaptor options available Accepts loose tube, distribution and pre-terminated cables ROHS, REACH SvHC and UL rated Fits standard 19",sliding-type design, convenient for management.


Applications:

• Data center
• Telecommunication networks

Specifications:

U Size	1U (44.2mm)
Number of Ports	12(Max 144core)
Width	482.6mm
Depth	464.9mm
Net Weight	6.8kg
Packaged Weight	8.7kg
Packaged Size	57*56*20cm
Material	1.2mm Cold-rolled steel
Material Coating	Powder coating
Color	Black
Designed in Accordance With	TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1
Compliant to	RoHS, Reach/SVHC

For further information about our High Density 1U 144fibers MPO/MTP Patch Panel, please don't hesitate to send me inquiry!
