Low Voltage ABC Cable Insulation Piercing Connector for Cable Joint
Wenzhou Ziyong Electrical Co., Ltd.- Certification：ISO, CE
- Color：Black,Blue,Red
- Surface Treatment：Galvanised
- Usage：Electrical Appliance
- Material：Plastic
- Type：Ipc
Base Info
- Model NO.：JMA2-95
- ABC Cable Accessory：Anti-UV Plastic Material
- Tooth：Copper,Aluminum
- Waterproof：Yes
- OEM：Accept
- Transport Package：as Your Requested
- Specification：Main: 16-95 Branch: 4-35(50)
- Trademark：JMA
- Origin：China
- HS Code：8538900000
- Production Capacity：5000000PCS,Month
Description

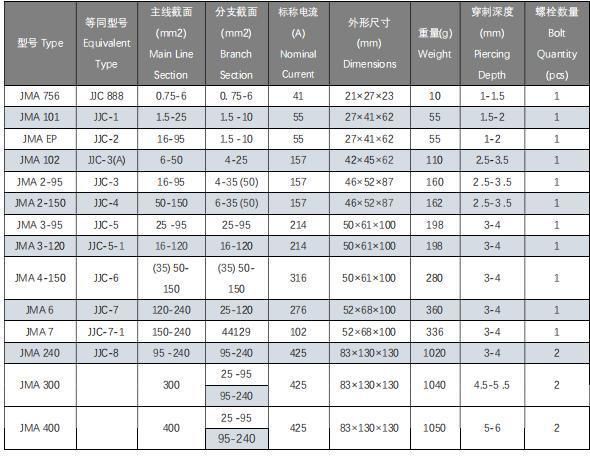

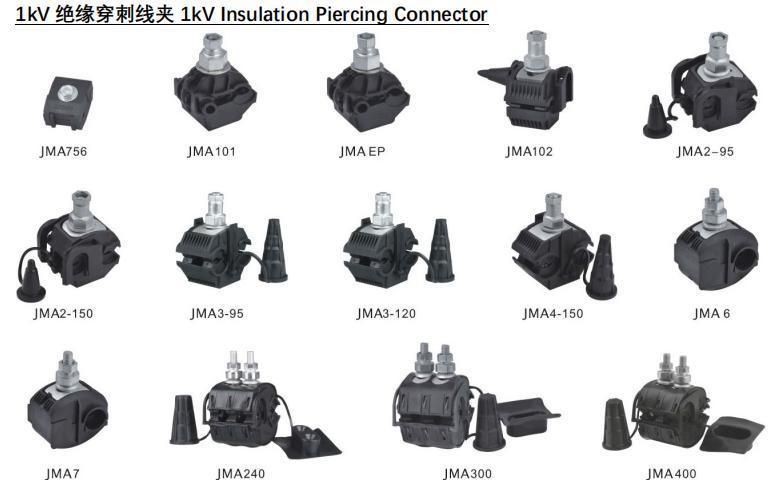

For main to main connectionJMA3-95 25-95 25-95 207 1 210 Co./Al. >=3 JMA4-150 50-150 50-150 239 1 220 Co./Al. >=3 JMA240 95-240 95-240 239 2 310 Co./Al. >=3 JMA-2 35-150 35-150 207 1 180 Co./Al. >=3 For main to service connection JMAEP 4-50 1.5-10 70 1 50 Co./Al. >=3 JMAEP 6-95 1.5-10 70 1 52 Co./Al. >=3 JMA2-95 16-95 4-35(50) 200 1 182 Co./Al. >=3 JMA2-150 50-150 4-35(50) 200 1 188 Co./Al. >=3 JMA2-185 50-185 6-16 200 1 188 Co./Al. >=3 JMA185 50-185 50-150 504 2 350 Co./Al. >=3 JMA6 120-240 16-120 239 1 310 Co./Al. >=3 JMA400 120-400 95-240 679 2 800 Co./Al. >=3 JMA-1 35-70 6-35 200 1 150 Co./Al. >=3
Application
The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.
When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish perfect contact. The bolts are tightened until the heads shear off.
Stripping of insulation is avoided.
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath (EN 50483-4 class 1 )
• Can be installed on line with power.
• Suitable for aluminium and copper conductors
• Shear head forces are adapted to the required contact forces for each application (main, service, lightning),
• Exceeds requirements according to EN 50483-4
• Insulation material made of weather and UV resistant glass fiber reinforced polymer
• Contact plates made of aluminium or copper
• Conductor breaking loads are designed to exceed cable system requirements: 80% for self-supporting system 90 % for insulated neutral conductor and 60 % for phase conductors for system with insulated neutral messenger Standard
Why Choose Ziyong Technology
1) Professional operation experience
2)Good quality guarantee (2 years)
3)Free sample are available and available for quality test

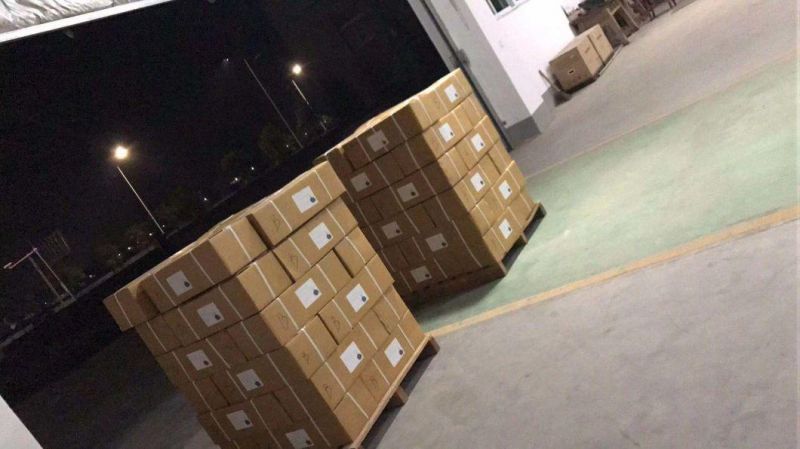

4) Safe packaging and Prompt delivery
5) All size can be customised
6) Choose our products! You'll get Professional technology support
Quality guaratee
Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.
Our products fully comply with well recognized standards such as IEC, BS, ANSI,CE,RoHs
FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.
2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.
3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.
