• Model NO.：BS-SCW
• Transport Package：25 Meter,Spool or 50 Meter,Spool
• Specification：RoHS, UL, CSA
• Trademark：QX
• Origin：Made in China
• HS Code：4602900000
• Production Capacity：100000 Meters,Week

Basic Info.

Model NO. BS-SCW Transport Package 25 Meter/Spool or 50 Meter/Spool Specification RoHS, UL, CSA Trademark QX Origin Made in China HS Code 4602900000 Production Capacity 100000 Meters/Week

Product Description

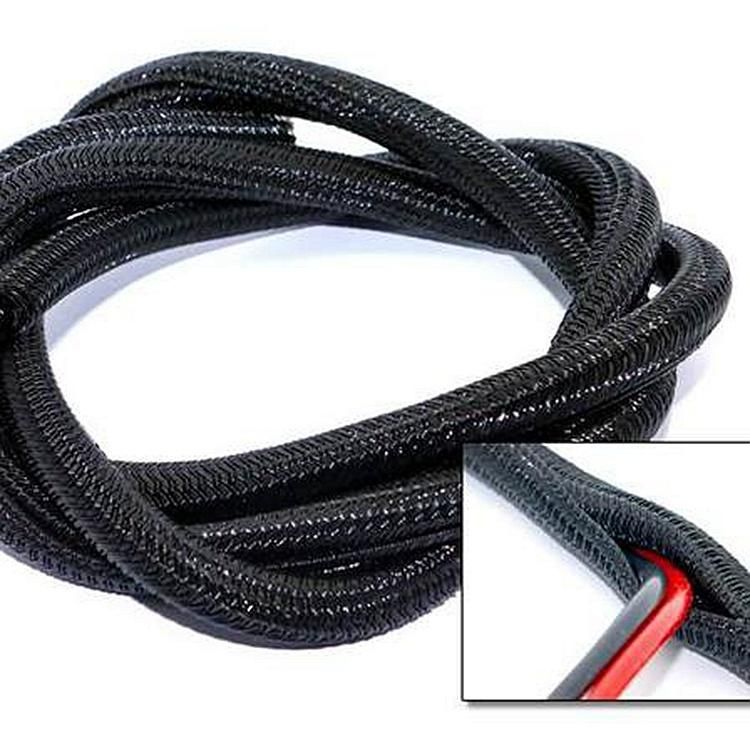

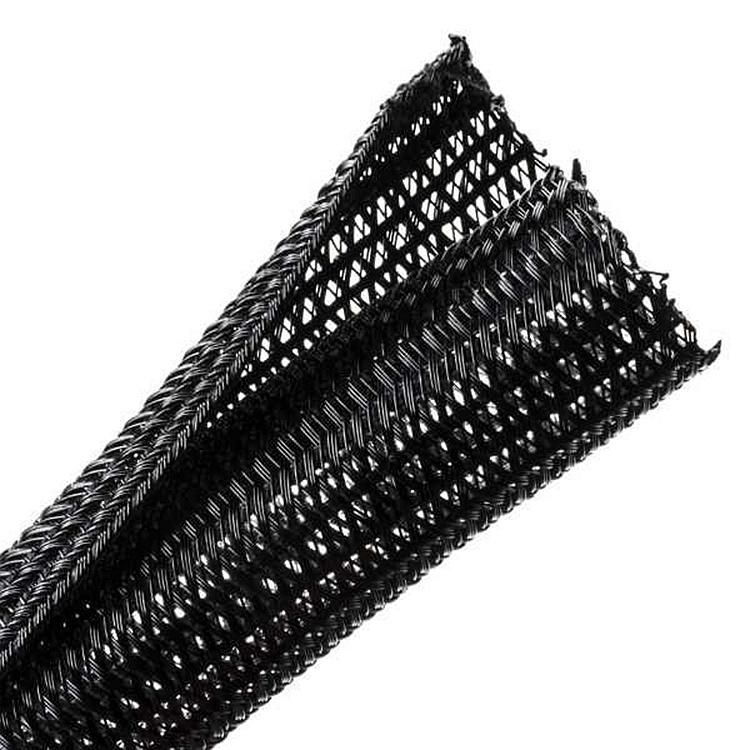

Flame Retardant Semi Rigid Wrappable Split Braided Sleeving

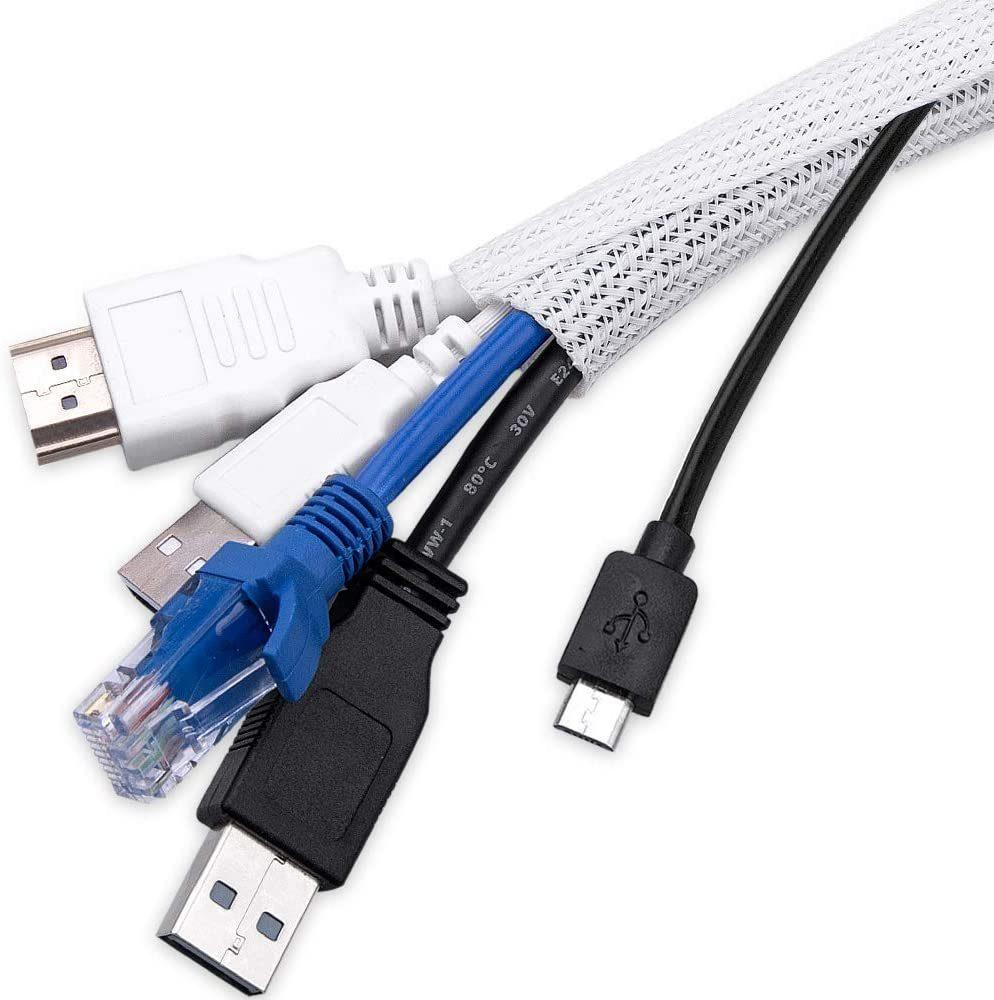

Wrappable split braided tube offers innovative solutions for the protection of breakout areas and provides easy
removal when is necessary an inspection or maintenance of cables.

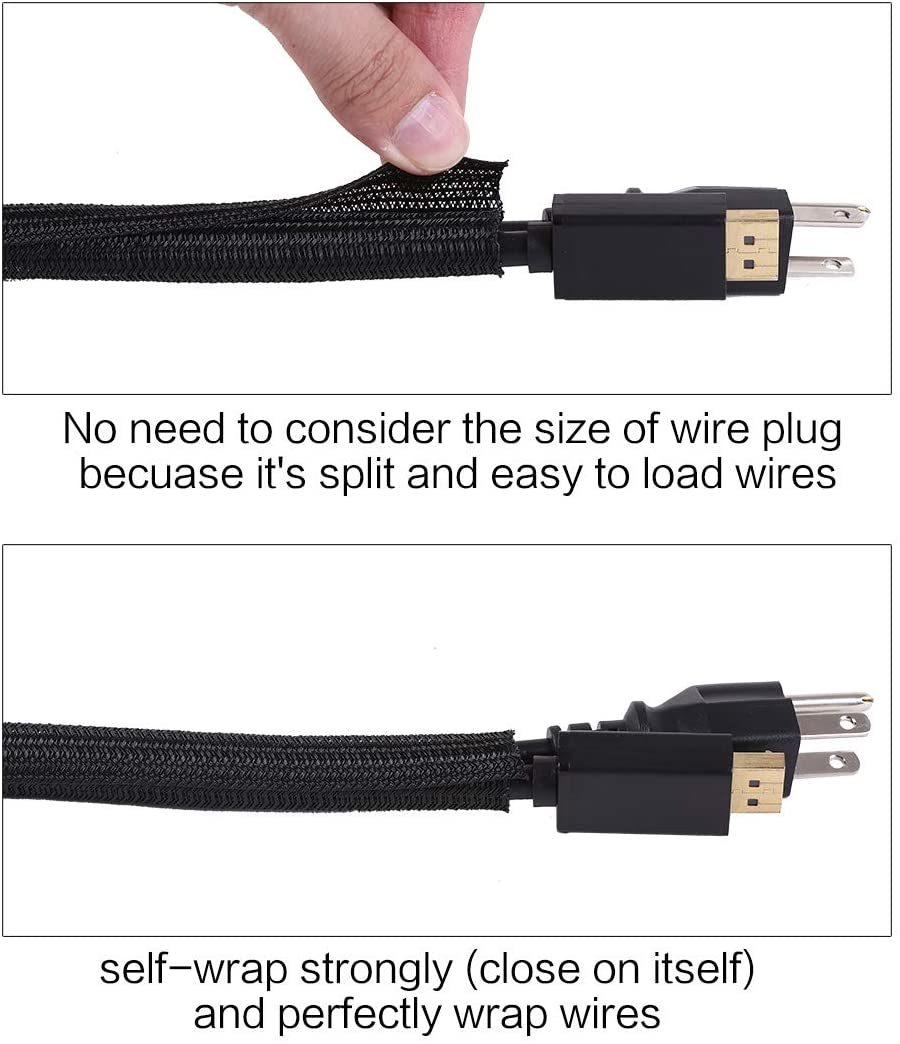

The special open structure allows to be installed after other components, for example copper terminals and
connectors. A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and
flame resistance.


Feature

1. Easy, cost and labor effective installation

2. More flexible than split convoluted or spiral wrap

3.25% edge overlap

4. Cut and abrasion resistant

5. Halogen free

6. Retains shape and rigidity throughout -50º C to 150º C temperature range

7. Melt temp. 250º C


Application

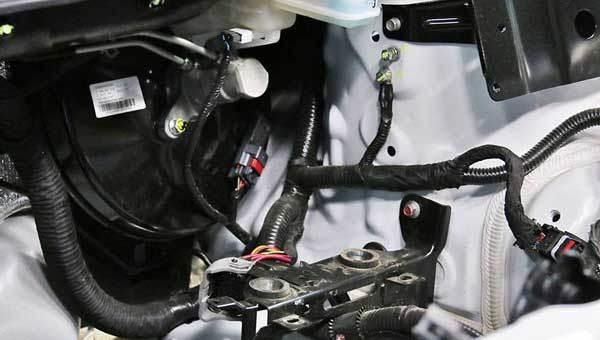

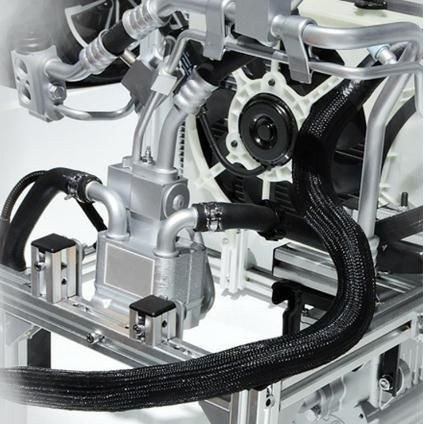

It's ideal for application in wire harness, automatic equipments, railways, general manufacturing industry where
wires and tubes need a tough and durable protection.

Technical data

1. Material: Polyester

2. Operating range: -50C-+150C

3. Melt point: 250+(-)5C

4. Flammability: VW-1

5. Standard colour: Black, Grey

6. Certificate: RoHS, Halogen Free

7. Cutting tool: Hot knife


Datasheet


Part No	ID(mm)	Overlap(%)	Max Bundle Dia(mm)	Packing(L)
BS-SCW006	6	25%	7	100m/spool
BS-SCW009	9	25%	10	100m/spool
BS-SCW013	13	25%	14	50m/spool
BS-SCW016	16	25%	17	25m/spool
BS-SCW019	19	25%	20	25m/spool
BS-SCW025	25	25%	26	25m/spool
BS-SCW032	32	25%	33	25m/spool
BS-SCW038	38	25%	40	25m/spool
BS-SCW050	50	25%	52	25m/spool
