PVC Electrical Black Pipe Conduit
Boyee Industry & Trading Co., Limited- Color：White
- IP Rating：IP68
- Surface Treatment：PVC Smooth
- Application：Underground
- Material：PVC
- Certification：CE
Base Info
- Model NO.：BYRC-20
- Feature 1：Non-Conductive
- Feature 2：Fire Resistance
- Feature 3：Corrosion Resistance
- Feature 4：Impact Strength
- Thickness：Different Thickness Can Be Made
- Transport Package：According to Customers′ Request
- Specification：from 16mm to 63mm
- Trademark：N,M
- Origin：China
- HS Code：39172300
- Production Capacity：500000PCS,Month
Description
Thickness< Medium Duty Medium Duty Heavy Duty BYRC-16 16 0.8/0.9/1.0/1.1/1.2 1.3/1.4 1.5 BYRC-20 20 1.0/1.1/1.2/1.3 1.4/1.5/1.6 1.8 BYRC-25 25 1.1/1.2/1.3/1.4/1.5 1.6/1.7/1.8 1.9/2.0 BYRC-32 32 1.4/1.5/1.6/1.7/1.8 1.9/2.0/2.1 2.2/2.3 BYRC-40 40 1.5/1.7/1.9 2.1 2.3/2.5 BYRC-40 50 2.0 2.2 2.4/2.6/2.8/3.0
3.Material:PVC
4.Flammability Rating:FV-0;FV-1
5.Application:Home,Hotel,Office,School,Factory and so on.Protect and manage indoor electrical wiring
6.Work Temperature:-40ºC to 65ºC
7.Color :White,grey,black,orange or other colors upon request
8.Length:2m,2.9m,4m or according to clients'request
9.Feature:
A.Non-conductive:Good insulation, able to resist 25kv voltage, assuring a safe system.
B.Fire resistance:Self-extinguishing, do not support combustion.
C.Corrosion resistance:Resistant to acids,bases and salts, assuring a lower maintenance cost and a longer performance life.
D.High impact strength:Resistant to compression and impact,suitable to be buried in concrete.
E.Easy to bend:Insect one spring into the pipe, then the pipe can be easily bend without heating.
F.It can be made with two end socket, instead of connector.
10.Package:Regular quantity in one bundle, the pack in a polybags.Or meet the customers' package request.
11.Normal or high quality, meet different market request.
12.The quotation subjects to our final confirm.
13.Term of payment:30% deposit, 70% by T/T before shipment Or 100% by L/C at sight.
14.Delivery time:About 20 days after received down payment.
Package Photo:

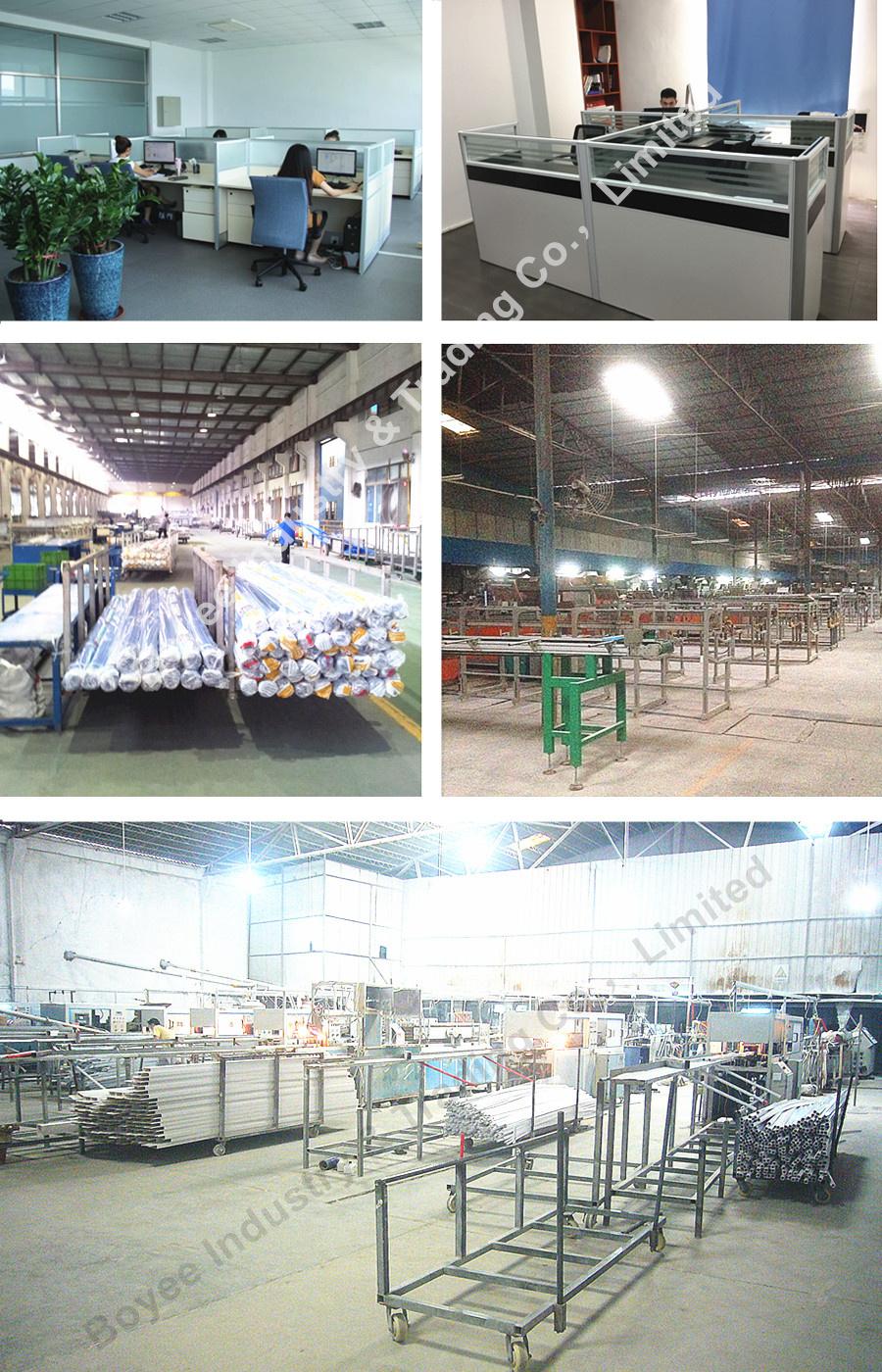

Factory Photos:
Test Report & Certificate:
