• Model NO.：BS-PETM
• Customized：Customized
• Flame Retardant：VW-1
• Available Color：64 Colors
• Classification：Flexible Electrical Insulation Sleeving
• Operating Range：-50c~+15c
• Melt Point：240+-10c
• Cutting Tool：Hot Knife
• Transport Package：Carton

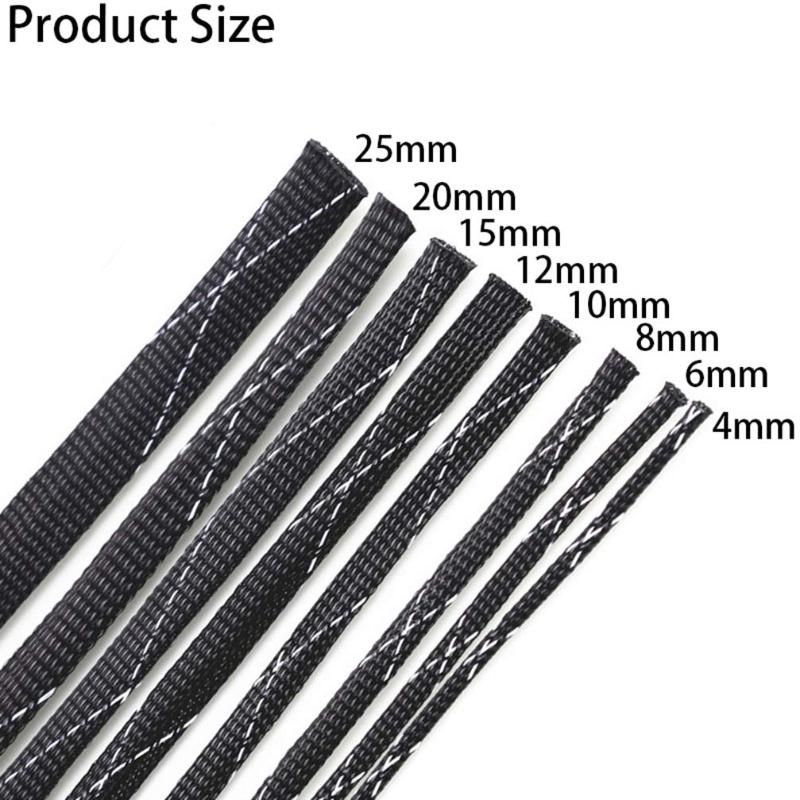

• Specification：3mm to 100mm Flat Width
• Trademark：EKO
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Nominal size(W)Part No.Expanded rangePacking(L)InchmmMin.(I)Max.(O)Standrd spool1/8"3.0BS-PETM0031.06.01000m/roll1/4"6.0BS-PETM0063.09.0500m/roll5/16"8.0BS-PETM0085.016.0300m/roll3/8"10.0BS-PETM0107.019.0300m/roll1/2"12.0BS-PETM012 8.024.0300m/roll5/8"16.0BS-PETM01610.027.0300m/roll3/4"20.0BS-PETM01914.030.0300m/roll1"25.0BS-PETM02518.035.0200m/roll1-1/4"30.0BS-PETM03220.050.0200m/roll1-1/2"40.0BS-PETM03830.060.0100m/roll1-3/4"45.0BS-PETM04535.075.0100m/roll2"50.0BS-PETM05040.080.0100m/roll2-1/2"64.0BS-PETM06445.0105.0100m/roll3"76.0BS-PETM07664.0120.0100m/roll

Advantage

a.  Offering durable abrasion resistance in a wide range of industrial applications.
b.  Offering kink resistance with good strength and flexibility.

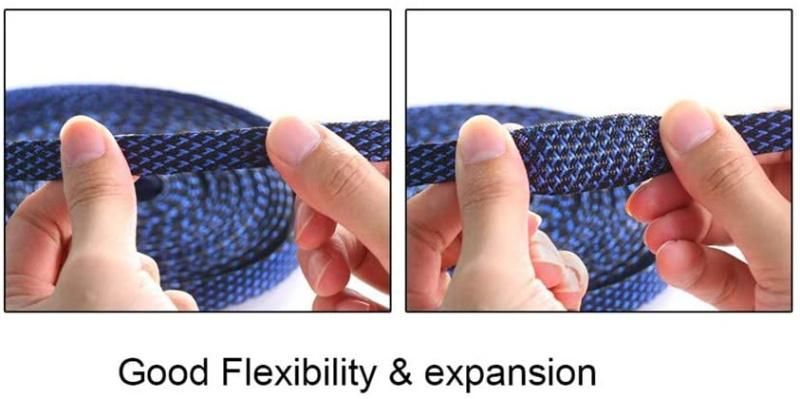

c.  Totally expanded the sleeving can reach at least one point five times than the initial dimension.



Application

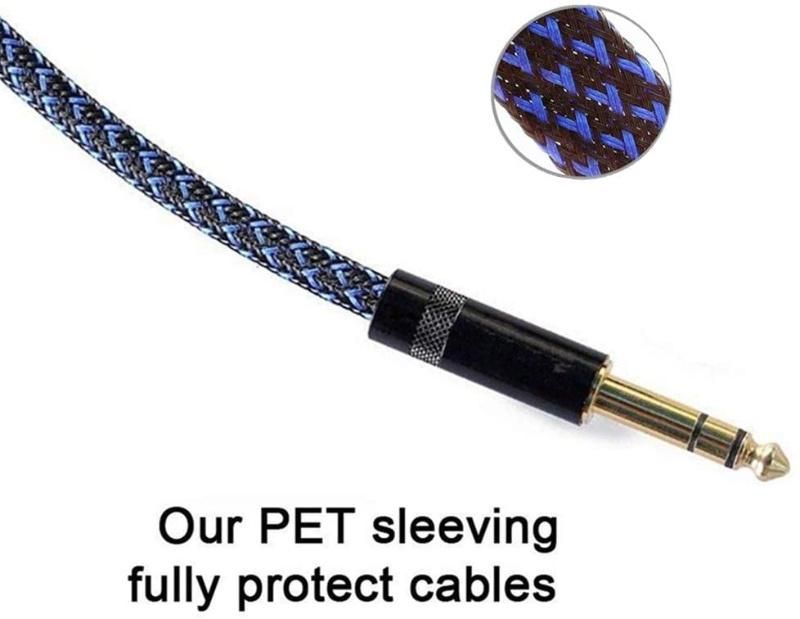

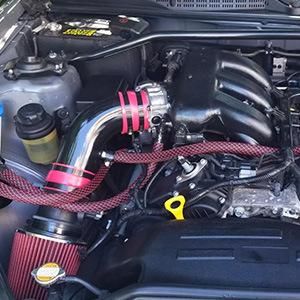

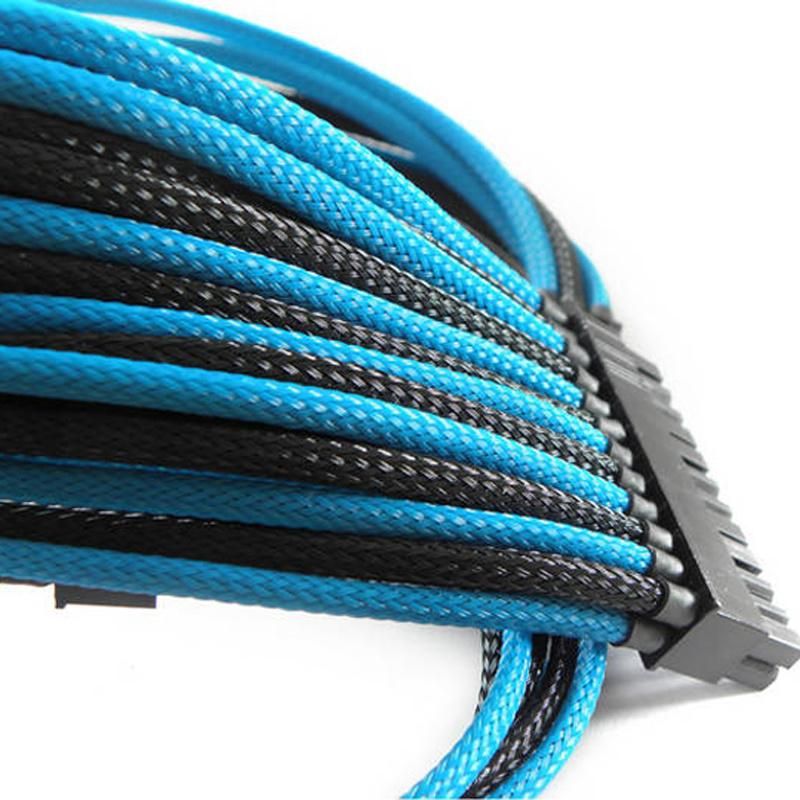

It's used to cover cables, wire harnesses, tubes, industrial hoses,where is required an additional protection. Most commonly used
to protect wire harness, cable assemblies, air conditioned pipes, fluid pipes in automotive, aerospace and military applications.
