• Model NO.：BS-PET003
• Application：Insulators, Electrical Winding Insulation,
• Chemistry：Organic Insulation
• Operating Range：-50ºC ±150ºC
• Melt Point：240ºC±10ºC
• Flammability：VW-1
• Standard Colour：Black and Grey
• Certificate：UL, CSA, RoHS, Pfos, Reach, Halogen Free
• Cutting Tool：Hot Knife
• Application1：Automobile Wires Protection
• Application2：Structured Cabling System
• Application3：a,V Cables & HDMI Cables
• Application4：Industrial Hoses & Tubes Protection
• Size：3mm
• Transport Package：1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm-76mm Flat Width
• Trademark：EKO
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Part No Size Expanded Range(mm) Packing (L)  Flat width(mm) Min(I) Max.(O) M/spool BS-PET003 3 1 6 1000 BS-PET006 6 3 9 500 BS-PET008 8 516 350 BS-PET010 10 719 350 BS-PET012 12 824 300 BS-PET016 151027 250 BS-PET019 201430 200 BS-PET025 251835 200 BS-PET032 302050 150 BS-PET038 403060 100 BS-PET045 453575 100 BS-PET050 504080 100 BS-PET064 6445105 100 BS-PET076 7664120 100
Product feacture

1. Light weight & Flexible & Insulation & UV Resistant & Decoration  & Flame-retardant & Durable abrasion resistance & Resistant
    to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm PET monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.

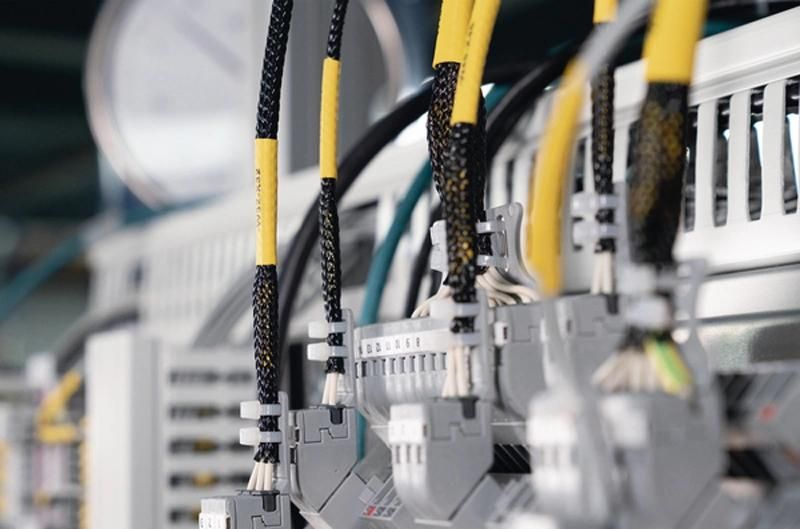

Application

Its mainly used to cover cables,wire harnesses,tubes,industrial hoses where is required an good.

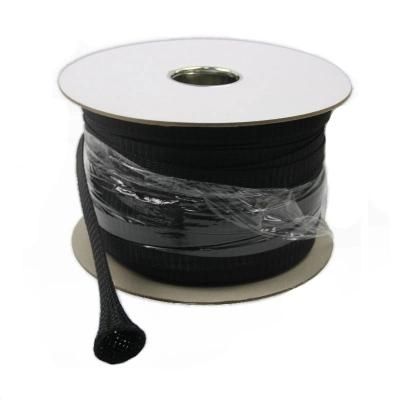

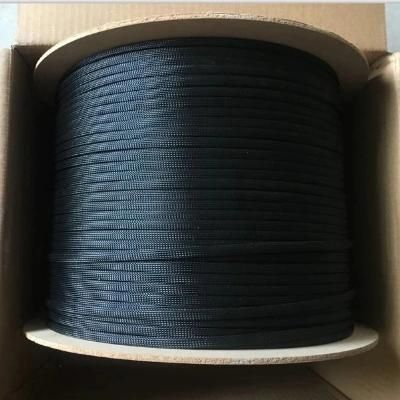

Packing

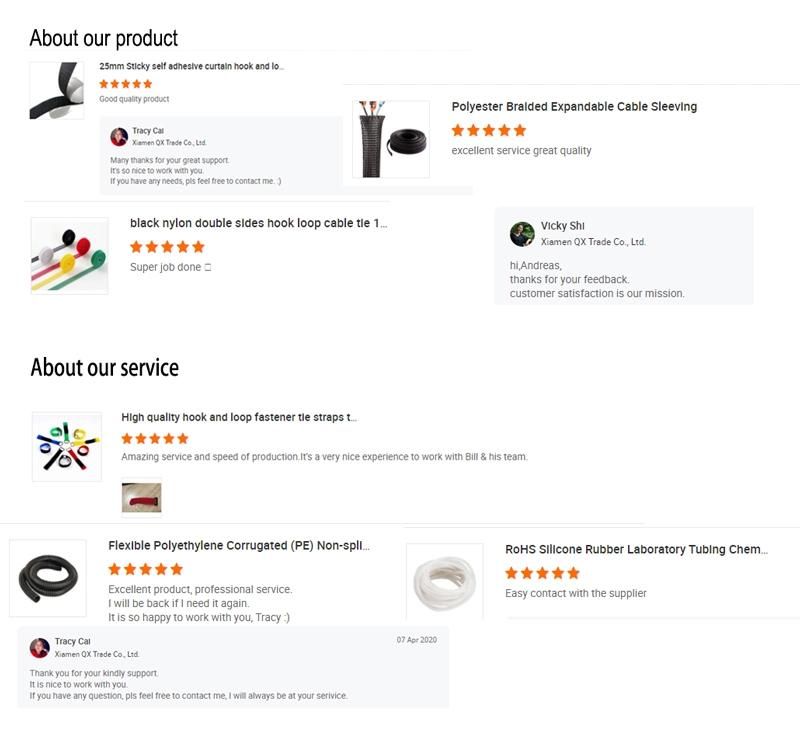

Customers' Review
