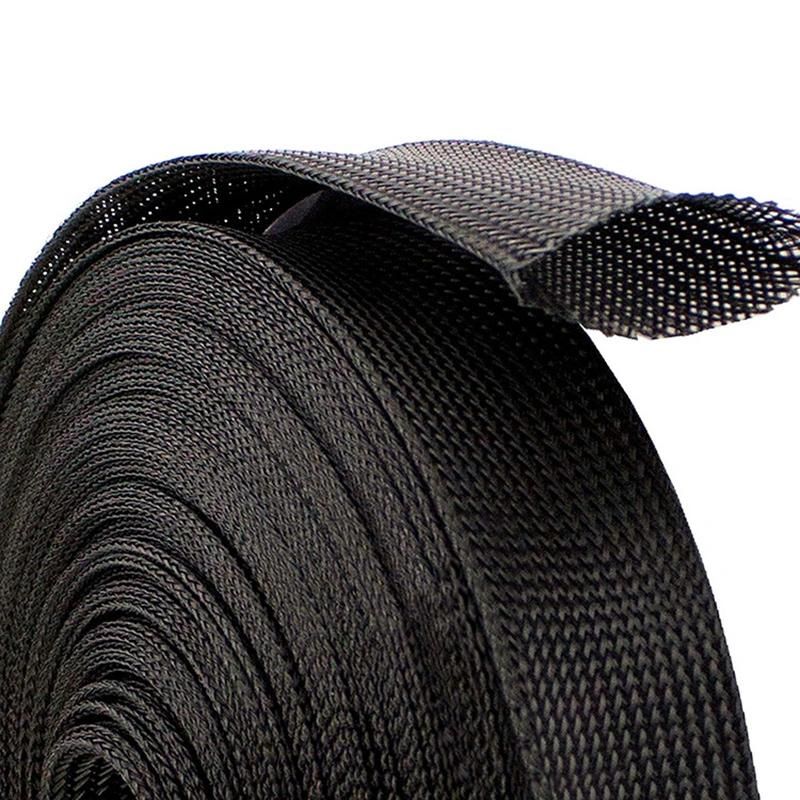

Fire Retardant Pet Briaded Nylon Hi-Temp Wire Wrap Expandable Mesh Sleeving
Xiamen QX Trade Co., Ltd.- Certification:CSA, UL, RoHS, ISO
- Color:Black
- IP Rating:UL,CSA,RoHS,Pfos,Reach,Halogen Free
- Usage:Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable, Cable Management
- Material:Polyester
- Type:Cable Management
Base Info
- Model NO.:BS-PETH003
- Name:Hi-Temp Braided Sleeving
- Operating Range:-50ºC ±150ºC
- Melt Point:240ºC±10ºC
- Flammability:VW-1
- Standard Colour:Black and Grey
- Certificate:UL, CSA, RoHS, Pfos, Reach, Halogen Free
- Cutting Tool:Hot Knife
- Application1:Automobile Wires Protection
- Application2:Structured Cabling System
- Application3:a,V Cables & HDMI Cables
- Application4:Industrial Hoses & Tubes Protection
- Size:3mm
- Transport Package:1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification:3mm-76mm Flat Width
- Trademark:EKO
- Origin:Fujian, China
- HS Code:4602900000
- Production Capacity:3000000 M,Month
Description
Part No Size Expanded Range(mm) Packing (L) Flat width(mm) Min(I) Max.(O) M/spool BS-PET003 3 1 6 1000 BS-PET006 6 3 9 500 BS-PET008 8 5 16 350 BS-PET010 10 7 19 350 BS-PET012 12 8 24 300 BS-PET016 15 10 27 250 BS-PET019 20 14 30 200 BS-PET025 25 18 35 200 BS-PET032 30 20 50 150 BS-PET038 40 30 60 100 BS-PET045 45 35 75 100 BS-PET050 50 40 80 100 BS-PET064 64 45 105 100 BS-PET076 76 64 120 100
Product feacture
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant
to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm PET monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.

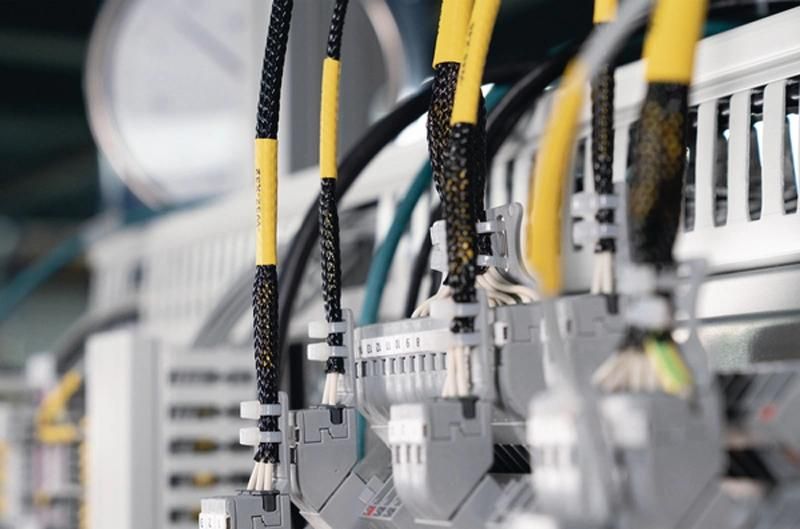

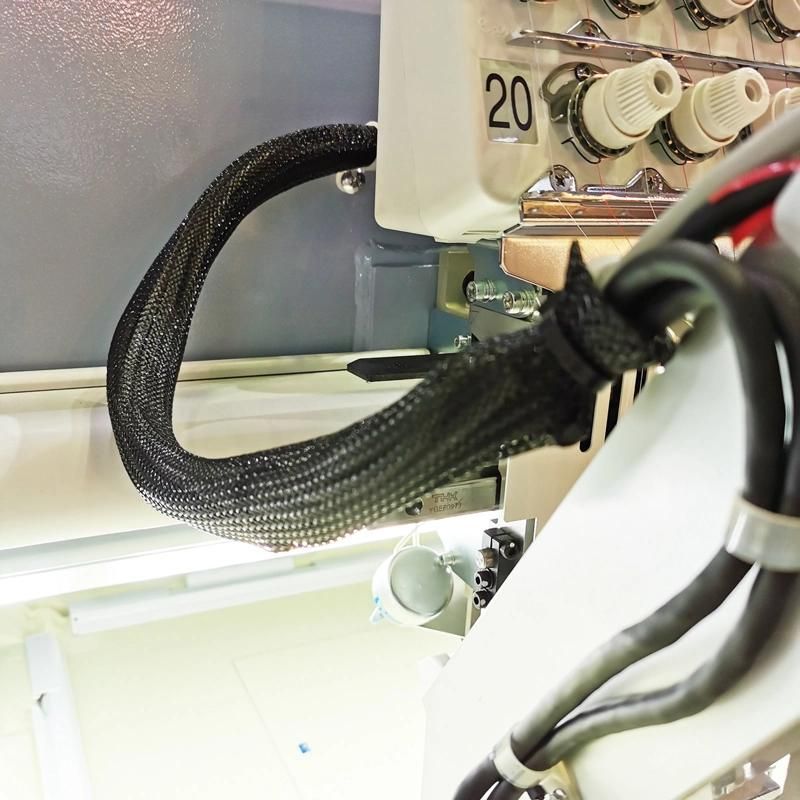

Application
Its mainly used to cover cables,wire harnesses,tubes,industrial hoses where is required an good.

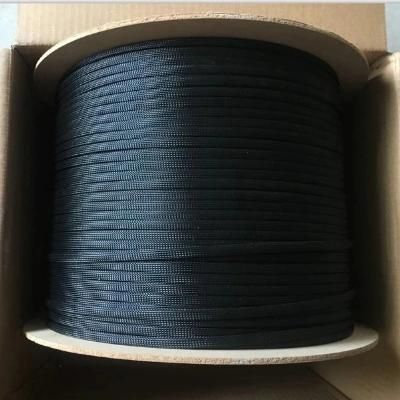

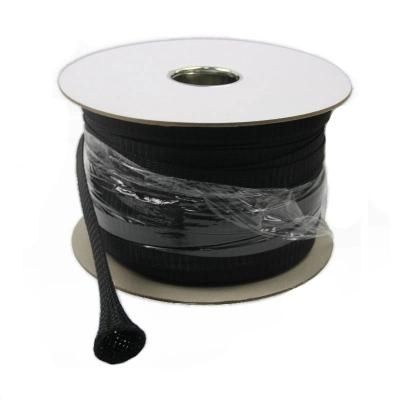

Packing
Customers' Review
Company information
