• Trademark：ELECMAN
• Origin：China
• HS Code：8302410000
• Production Capacity：50000 PCS, Day

Basic Info.

Trademark ELECMAN Origin China HS Code 8302410000 Production Capacity 50000 PCS/ Day

Product Description

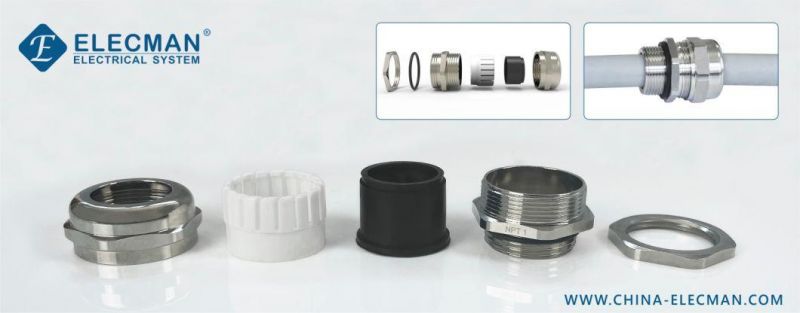

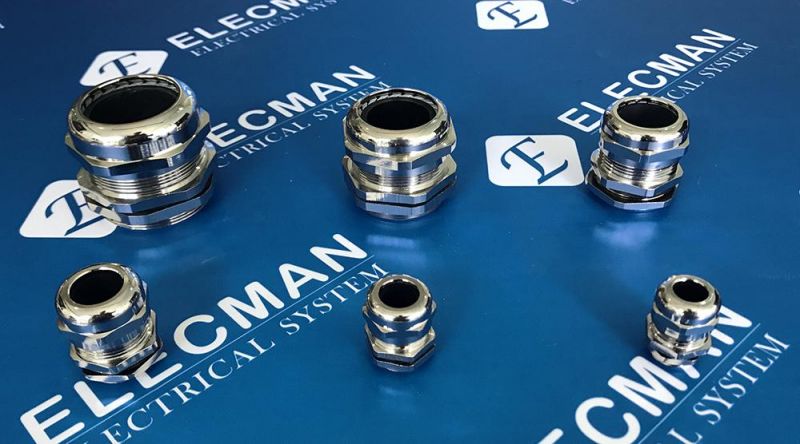

ELECMAN ® Cable Gland

PRODUCT: Cable Gland

MATERIAL: Brass & Nylon/ Stainless Steel & Nylon

SURFACE TREATMENT: Nickel Plated



APPLICATION:

• Waterproof cable connector cable accessory.
• Within the clamping range, and the use of O sealing ring screw tight head, its protection degree can reach IP68.
• Operating temperature: Static condition: -40ºC to 100ºC, short-time120ºC.

ELECMAN provides full-size cable gland under each standard.

Size	Applicable cable	Thread length		Size	Applicable cable	Thread length
M8*1.0	2-4	5		PG7	3-6.5	7
M10*1.5	3-6.5	6.5		PG9	4-8	8
M12*1.5	3-6.5	6.5		PG11	5-10	8
M12*1.5	4-8	7		PG13.5	6-12	8
M14*1.5	4-8	7		PG16	10-14	9
M16*1.5	4-8	8		PG19	10-14	9
M16*1.5	5-10	8		PG21	13-18	9
M18*1.5	5-10	8		PG25	15-22	10
M20*1.5	6-12	8		PG29	18-25	11
M20*1.5	10-14	8		PG36	25-33	12
M22*1.5	10-14	9		PG42	32-38	13
M24*1.5	10-14	9		PG48	37-44	14
M25*1.5	10-14	9		PG63	42-52	15
M25*1.5	12-16	9
M25*1.5	13-18	9
M27*1.5	13-18	9		Size	Applicable cable	Thread length
M28*1.5	13-18	9		G1/4	3-6.5	7
M30*1.5	13-18	9		G3/8	4-8	8
M32*1.5	15-22	10		G1/2	6-12	8
M33*1.5	15-22	10		G3/4	13-18	9
M36*1.5	18-25	10		G1	18-25	11
M37*1.5	18-25	10		G1-1/4	25-33	13
M40*1.5	18-25	11		G1-1/2	32-38	14
M40*1.5	22-30	11		G2	37-44	14
M42*1.5	22-30	11		G2-1/2	42-52	15
M47*1.5	25-33	11		G3	65-70	15
M48*1.5	25-33	11
M50*1.5	32-38	12
M54*1.5	32-38	12		Size	Applicable cable	Thread length
M56*1.5	32-38	12		NPT1/4	3-6.5	7
M60*1.5	37-44	13		NPT3/8	4-8	8
M63*1.5	37-44	13		NPT1/2	6-12	8
M64*2	37-44	13		NPT3/4	13-18	9
M72*2	42-52	15		NPT1	18-25	11
M75*2	42-52	15		NPT1-1/4	25-33	13
M80*2	55-56	15		NPT1-1/2	32-38	14
M88*2	65-70	15		NPT2	37-44	14
M100*2	78-84	18		NPT2-1/2	42-52	15
M110*2	80-90	18		NPT3	65-70	15
M150*2	110-125	18

ELECMAN QC department pays much attention to controlling the quality, the main part of the cable gland is made of brass, the seal parts are made of nylon, every part of the cable gland is produced according to the high standard.

Packing information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for a long time, so ELECMAN pay much attention to that, for fittings of small sizes, ELECMAN provides inner box packing inside the outer box, for big sizes, ELECMAN provides plastic packing inside the outer box.

ELECMAN can also follow any packing requirements of customers.
