High Grade Professional Manufacturing Flexible Metallic Conduit
Comflex Industrial Co., Ltd.- Color：Customized
- IP Rating：IP65
- Surface Treatment：Customized
- Application：Underground
- Material：Stainless Steel
- Certification：CE
Base Info
- Model NO.：Comflex
- Product Name：Flex Metallic Conduit
- Hose Material：SUS 304 316L
- Thickness：0.10-1.0mm
- Outer Diameter：Customized
- Feature：Flexible, Low Leakage
- Hose Type：Round
- Strip Size：28*0.5-0.8mm
- Production Speed：100-120m,8hr
- Temperature Range：-15°c to +70°c
- Coating：Black , Grey. PVC Also Available in Lfhs. UV Resis
- Rating：IP64 & IP65
- Appli：Machine Tools
- Appli2：Outdoor Installations
- Appli3：Floor Applications for Computer,Floor Boxes
- Appli4：Elevators, Metro Stations, CCTV Camera etc
- Transport Package：Standard Seaworthy Package
- Specification：SGS
- Trademark：HLT
- Origin：China Jiangsu
- HS Code：73079900
- Production Capacity：3000 Meters One Day
Description
SizeInternal Diameter External Diameter Min. Bend Radius Coil Packing Standard Sheet Thickness Non Standard Sheet Thickness (mm) min. / max. (mm) min. / max. (mm) (Mtr.) (mm) (mm) GFC - US - LT - 301 3 / 8" 12.3 / 12.8 17.5 / 18.0 60 30, 50 0.25 0.18 - 0.20 GFC - US - LT - 302 1 / 2" 15.8 / 16.3 20.8 / 21.3 75 30, 50 0.3 0.18 - 0.20 GFC - US - LT - 303 3 / 4" 20.7 / 21.2 26.2 / 26.7 85 30, 50 0.35 0.18 - 0.20 GFC - US - LT - 304 1" 26.4 / 26.8 32.7 / 33.4 110 30, 50 0.35 0.18 - 0.20 GFC - US - LT - 305 11 / 4" 35.5 / 35.4 41.4 / 42.2 130 15, 30 0.4 0.18 - 0.20 GFC - US - LT - 306 11/2" 40.1 / 40.6 47.4 / 48.3 150 15 0.4 0.18 - 0.20 GFC - US - LT - 307 2" 51.3 / 51.9 59.4 / 60.3 190 15 0.5 0.18 - 0.20 GFC - US - LT - 308 21/2" 63.0 / 63.6 72.1 / 73.0 250 7.5, 10 0.5 0.18 - 0.20 GFC - US - LT - 309 3" 78.0 / 78.7 87.9 / 88.9 310 7.5, 10 0.6 0.18 - 0.20 GFC - US - LT - 310 4" 101.6 / 102.6 113.2 / 114.3 360 7.5, 10 0.7 0.18 - 0.20
----Application :
Machine tools.
Outdoor installations.
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature.
Under floor applications for computer/floor boxes.
Used for connecting machines to controls
Elevators, Metro Stations, CCTV Camera etc.
----Raw Material : Pre - galvanised S eel Sheet Z60.120Gsm weight of surface area as basic core material.

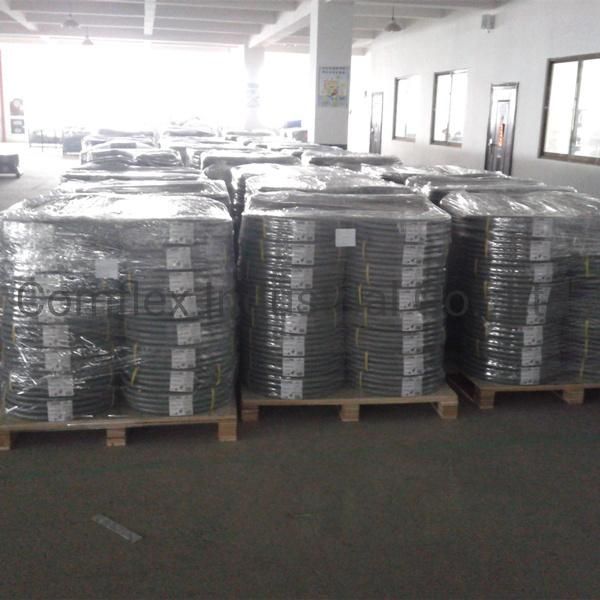

----Marking & Packing : Flexible Conduit & Adaptors are Packed with Our Logo and also As per customer request. Strong HDPE bags / box & Wooden Pallette.
----Cutting : We recommend use of fine tooth 32tpi. Hacksaw, short conduit length can be readily contractor packed.
----Standard & Approvals : All Standard Quality Conduits are manufactured in accordance to 15.3480. UL 1 -1957 Assistance Has been drived from the following while preparing this standard. Certified : NABL INDIA (On Demand)
----IP rating : IP65 with standard fittings
----Zinc : Die Cast Adaptor, Female / Male NPT Thread With Zinc Locknut & PVC Sleeve. All Adaptors or manufactures to a fine tolerance to ensure a very tight fit with ease of removal flexible conduit.
----FAQ:
Q: What material conduit do you have?
A: stainless less steel (garde201, 304, 316L, 321), galvanized steel, aluminum.
Q: What size conduit and what type do you have?
A:We have both square lock and interlock hose
B: square lock hose: ID 3mm-102mm
A: interlock hose: ID3 till ID450
Q: Can you customize for us?
A: yes we accept customize, including conduit size, diameter, and pvc coating material & thickness.
Q: why should I chose you?
A: we produce both hose and hose making machine with many years' experience and professional technology.
Q: what is your conduit features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
----Application :
Machine tools.
Outdoor installations.
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature.
Under floor applications for computer/floor boxes.
Used for connecting machines to controls
Elevators, Metro Stations, CCTV Camera etc.
----Raw Material : Pre - galvanised S eel Sheet Z60.120Gsm weight of surface area as basic core material.
----Marking & Packing : Flexible Conduit & Adaptors are Packed with Our Logo and also As per customer request. Strong HDPE bags / box & Wooden Pallette.
----Cutting : We recommend use of fine tooth 32tpi. Hacksaw, short conduit length can be readily contractor packed.
----Standard & Approvals : All Standard Quality Conduits are manufactured in accordance to 15.3480. UL 1 -1957 Assistance Has been drived from the following while preparing this standard. Certified : NABL INDIA (On Demand)
----IP rating : IP65 with standard fittings
----Zinc : Die Cast Adaptor, Female / Male NPT Thread With Zinc Locknut & PVC Sleeve. All Adaptors or manufactures to a fine tolerance to ensure a very tight fit with ease of removal flexible conduit.
