Pet Expandable Protection Wire Sock Cable Hose for Cable Wire Expandable Mesh Tube
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS
- Color：Black
- IP Rating：IP50
- Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material：Plastic
- Type：Cable Sleeve
Base Info
- Model NO.：BS-PET
- Customized：Customized
- Condition：New
- Flame Retardant：Normal

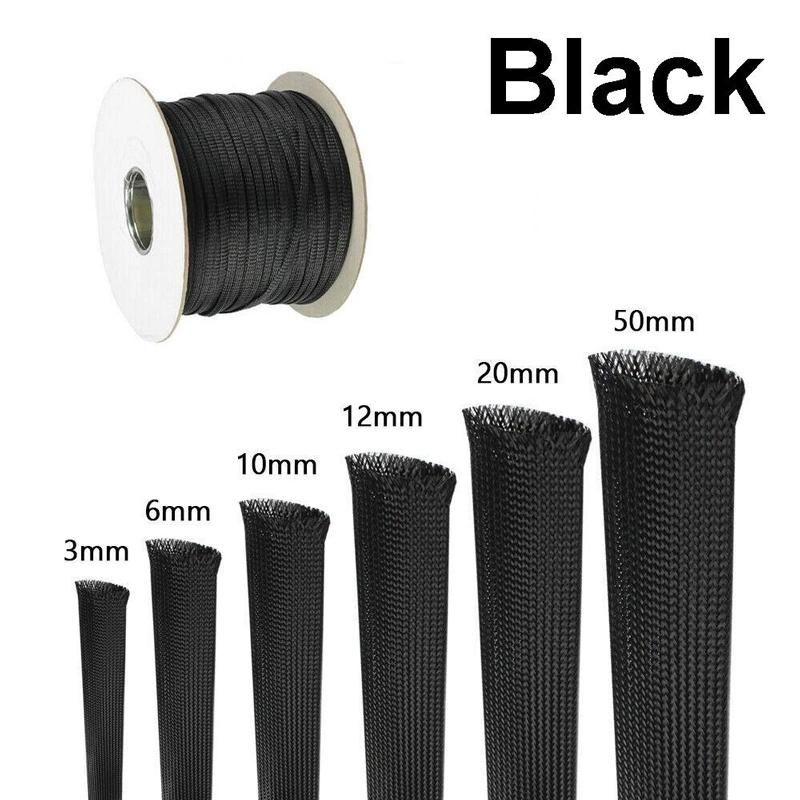

- Available Size：3mm~100mm Flat Width
- Classification：Pet Expandable Protection Hose for Cable Wire
- Standard Color：Black, Grey

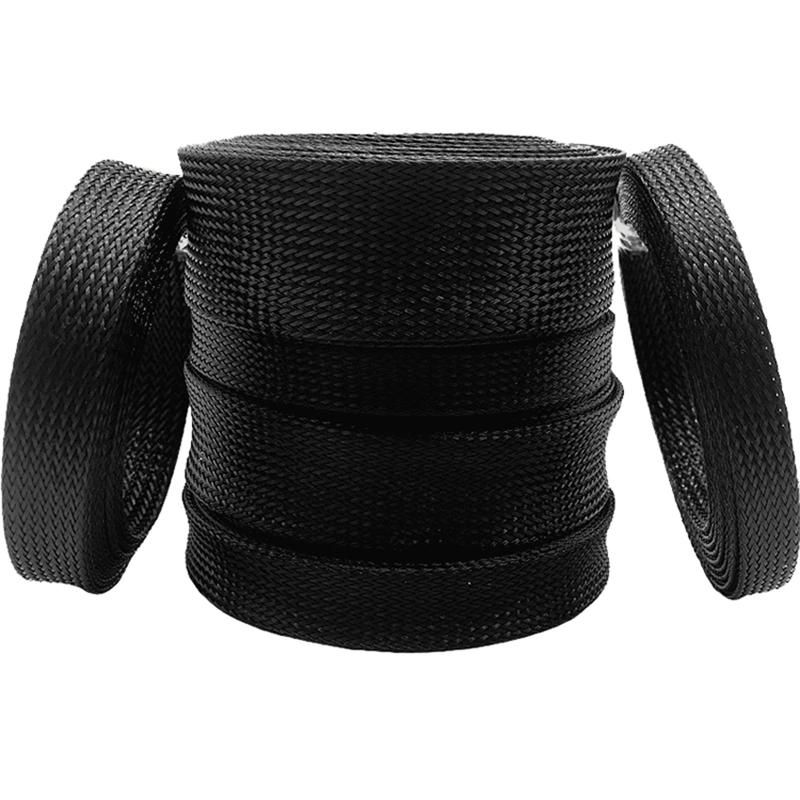

- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month
Description
Basic Info.
Model NO. BS-PET Customized Customized Condition New Flame Retardant Normal Available Size 3mm~100mm Flat Width Classification Pet Expandable Protection Hose for Cable Wire Standard Color Black, Grey Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/MonthProduct Description
PET Expandable Protection Hose for Cable Wire Expandable Mesh TubeProduct feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.

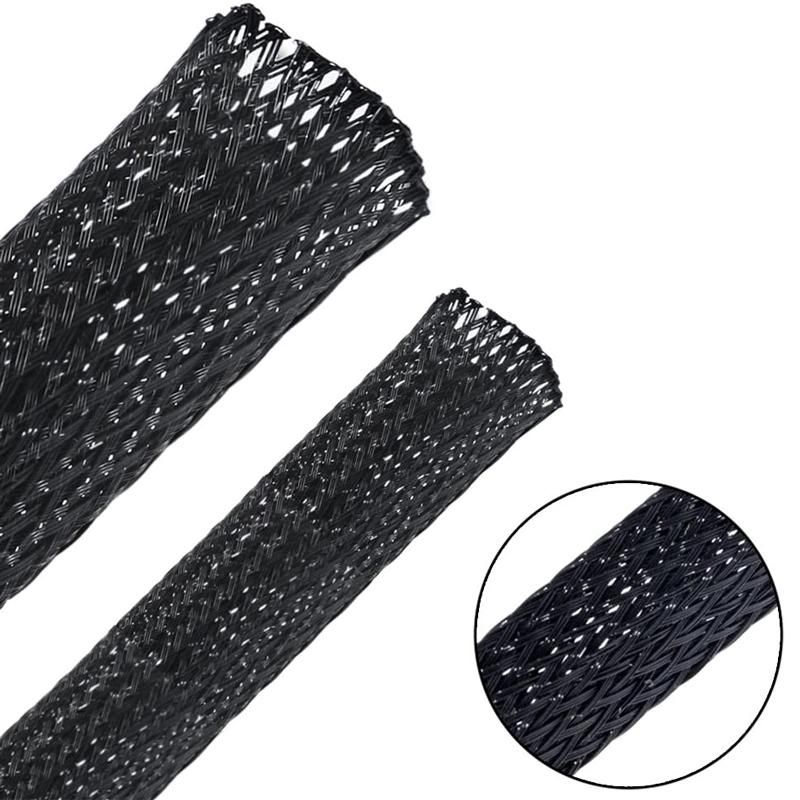

2. Braided of 0.25mm / 0.2mm Pet monofilament.

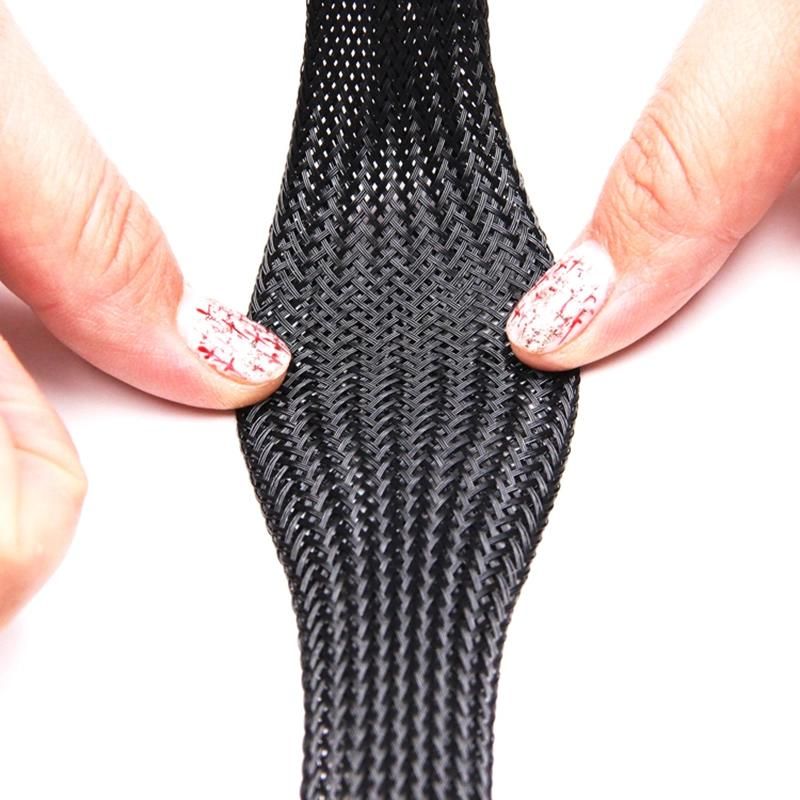

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

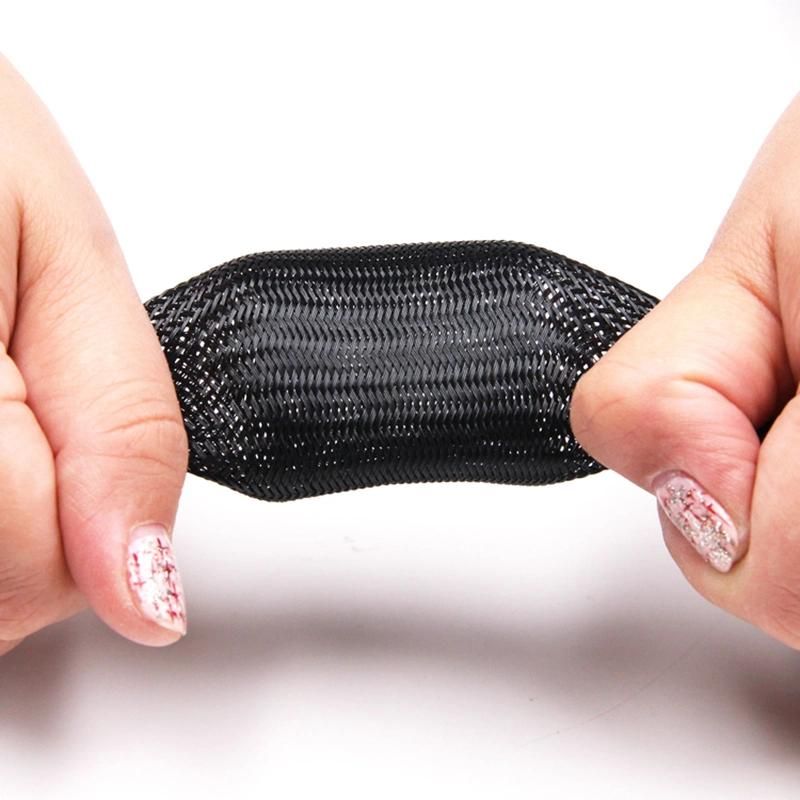

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Pet expandable protection hose for cable wire
Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife

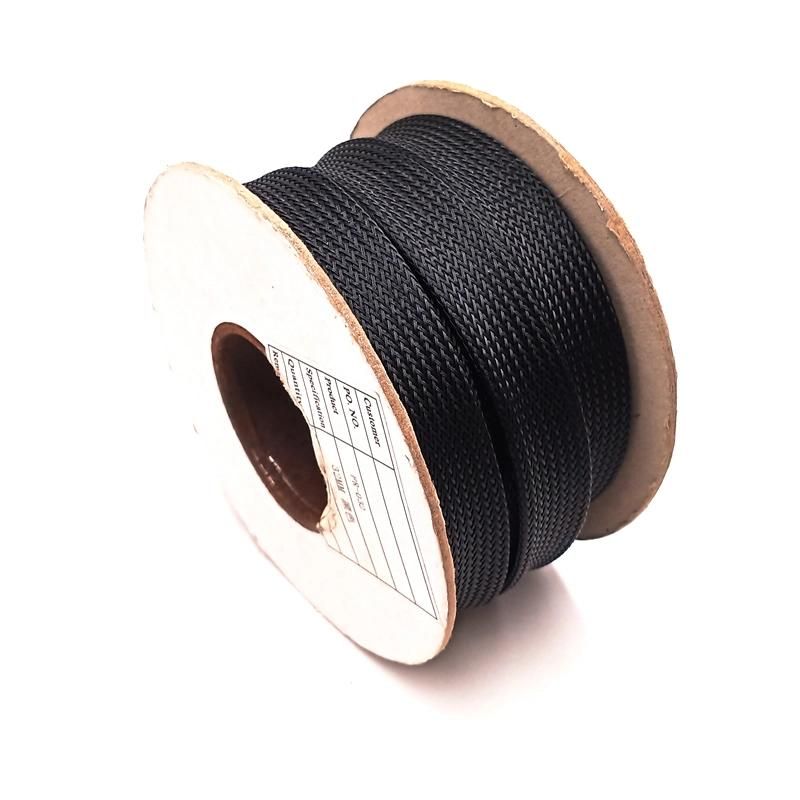

Package:

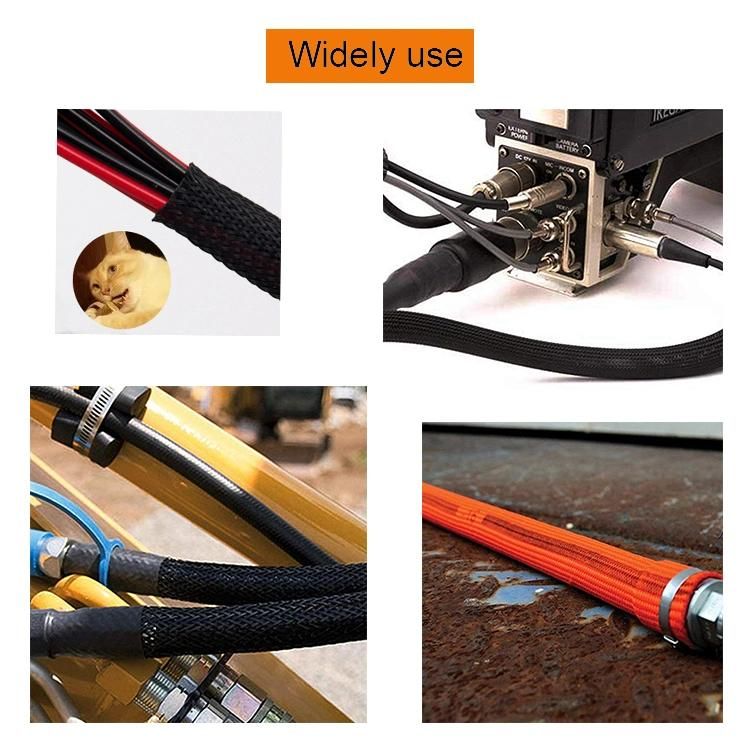

Application:

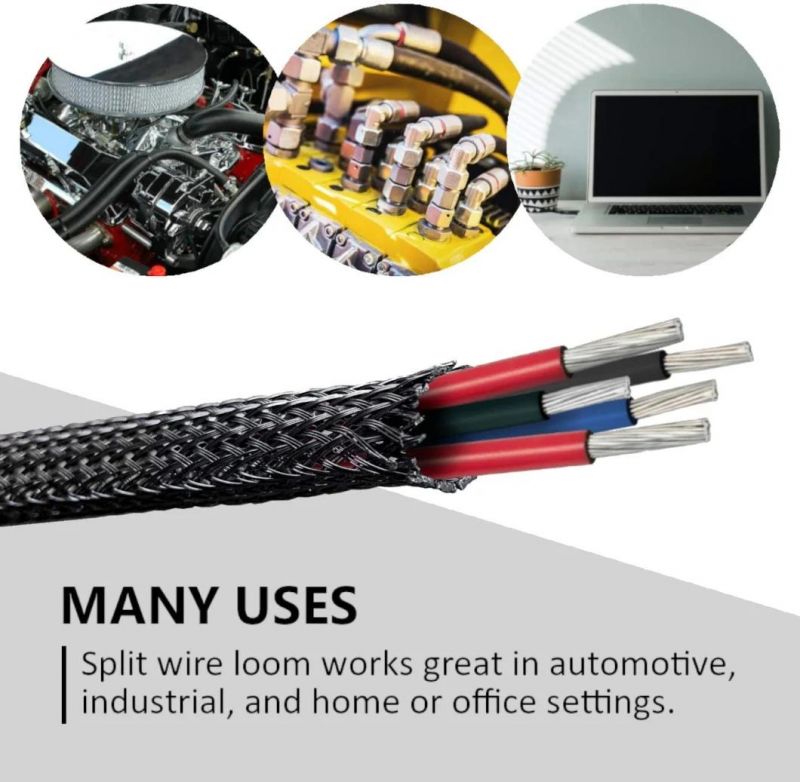

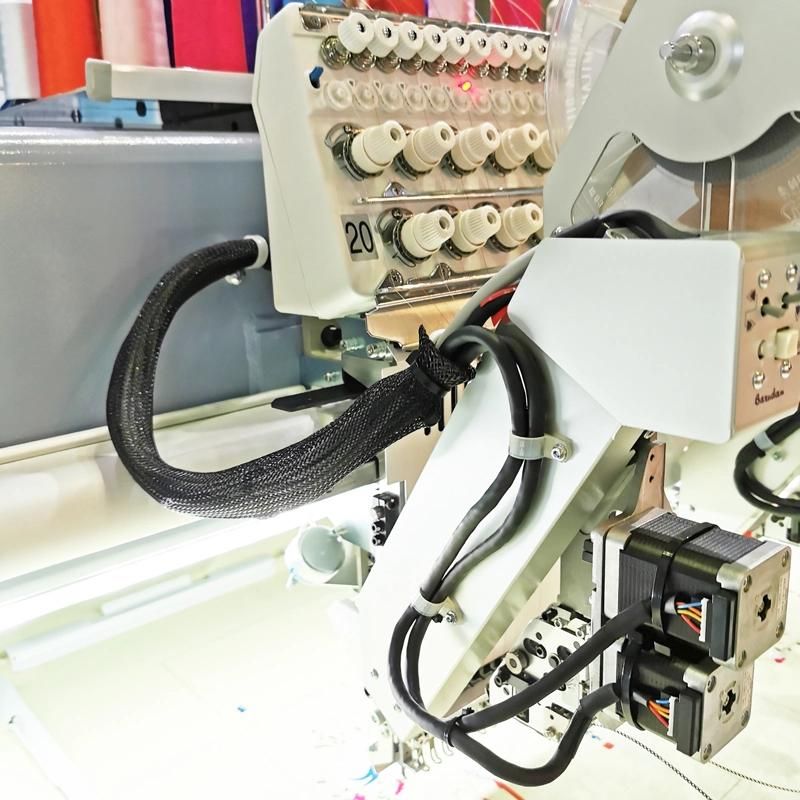

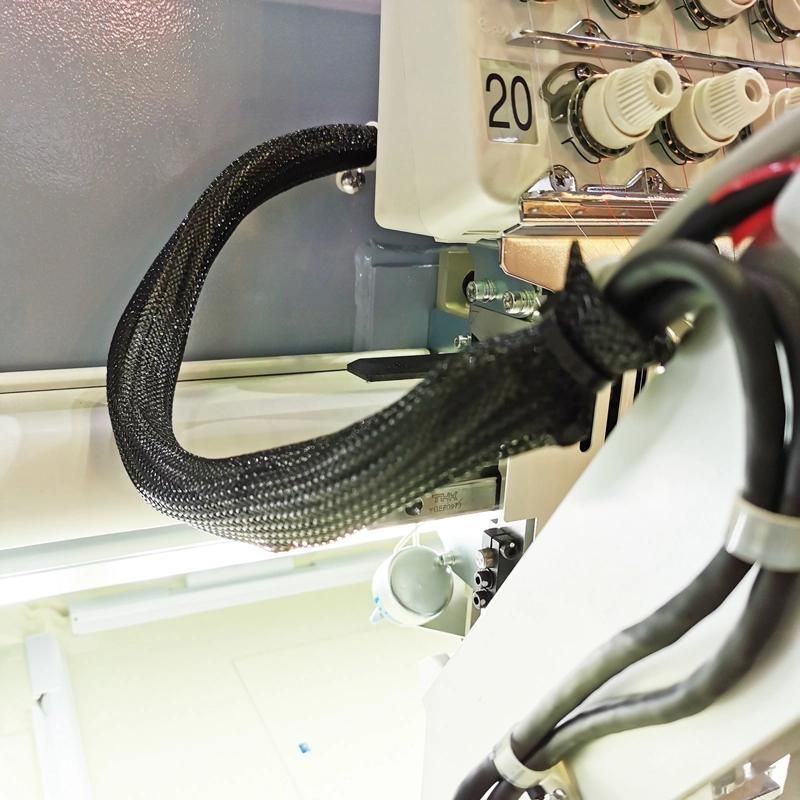

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.

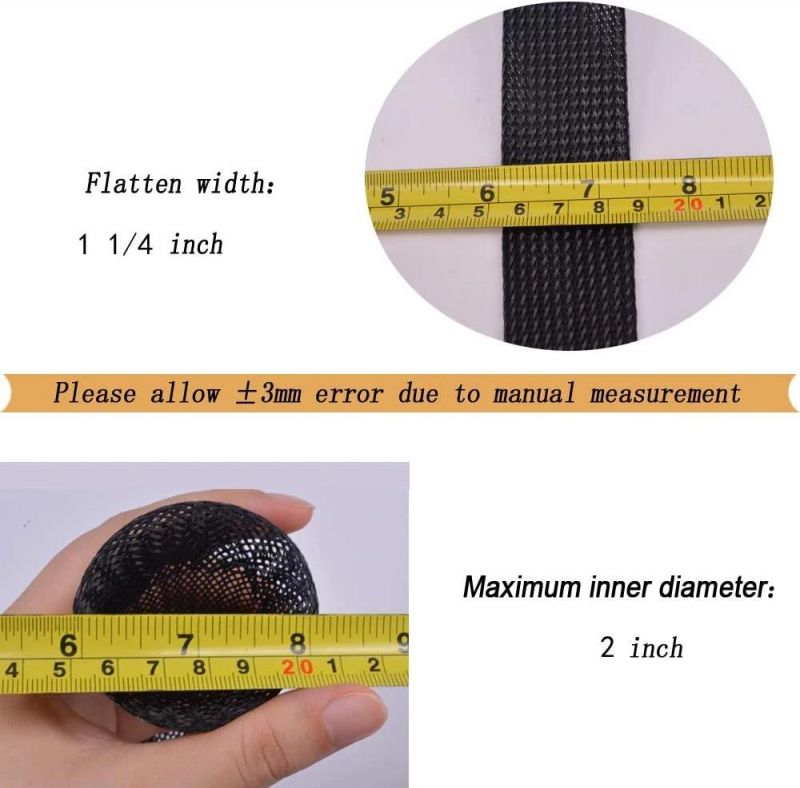

Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PET003 | 3 | 1 | 6 | 1000 |
| BS-PET006 | 6 | 3 | 9 | 500 |
| BS-PET008 | 8 | 5 | 16 | 350 |
| BS-PET010 | 10 | 7 | 19 | 350 |
| BS-PET012 | 12 | 8 | 24 | 300 |
| BS-PET016 | 16 | 10 | 27 | 250 |
| BS-PET019 | 20 | 14 | 30 | 200 |
| BS-PET025 | 25 | 18 | 35 | 200 |
| BS-PET032 | 32 | 20 | 50 | 150 |
| BS-PET038 | 38 | 30 | 60 | 100 |
| BS-PET045 | 45 | 35 | 75 | 100 |
| BS-PET050 | 50 | 40 | 80 | 100 |
| BS-PET064 | 64 | 45 | 105 | 100 |
| BS-PET076 | 76 | 64 | 120 | 100 |
