• Model NO.：BS-FS
• Transport Package：100m,Roll
• Specification：ISO9001: 2008, UL, CSA, ROHS
• Trademark：Eko
• Origin：Made in China
• HS Code：7019909000
• Production Capacity：100, 000 M,Month

Basic Info.

Model NO. BS-FS Transport Package 100m/Roll Specification ISO9001: 2008, UL, CSA, ROHS Trademark Eko Origin Made in China HS Code 7019909000 Production Capacity 100, 000 M/Month

Product Description

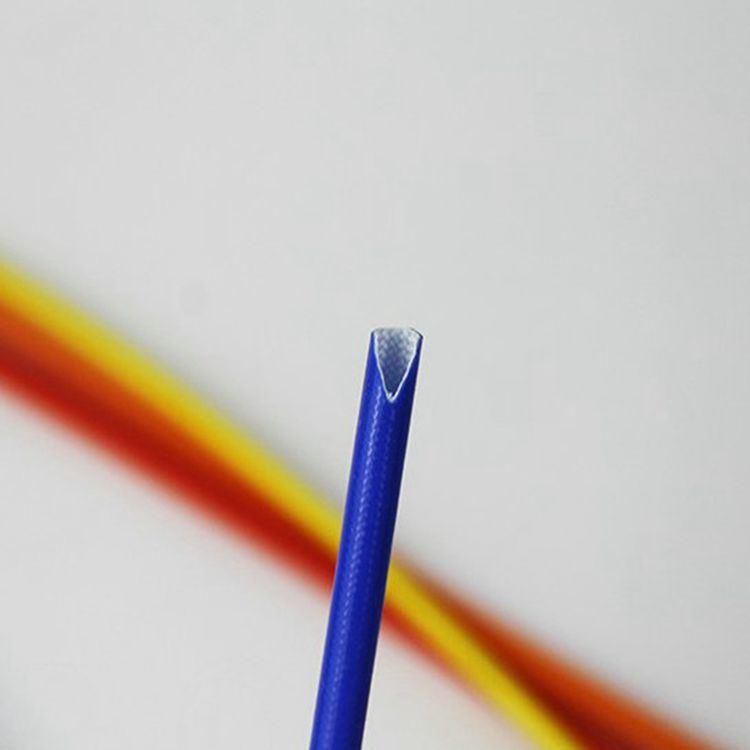

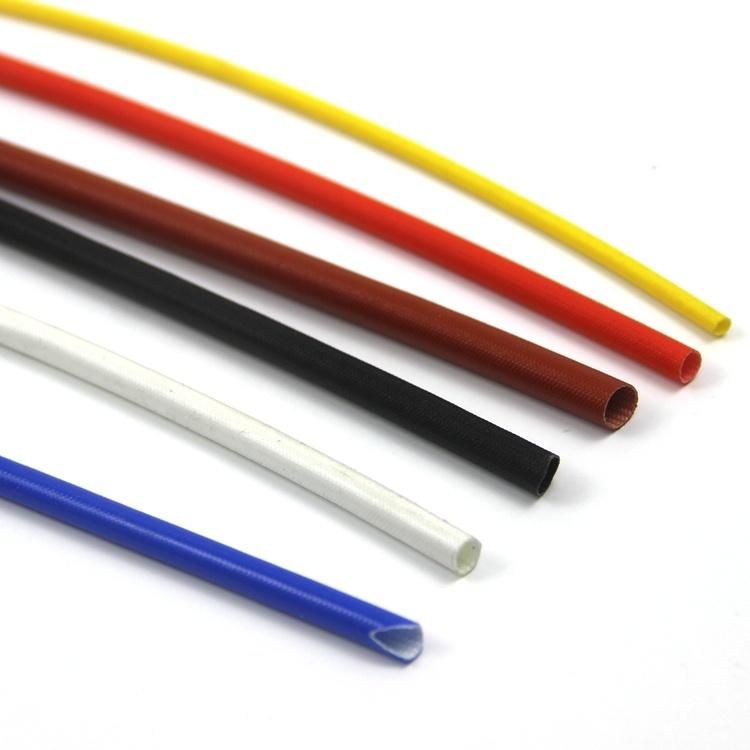

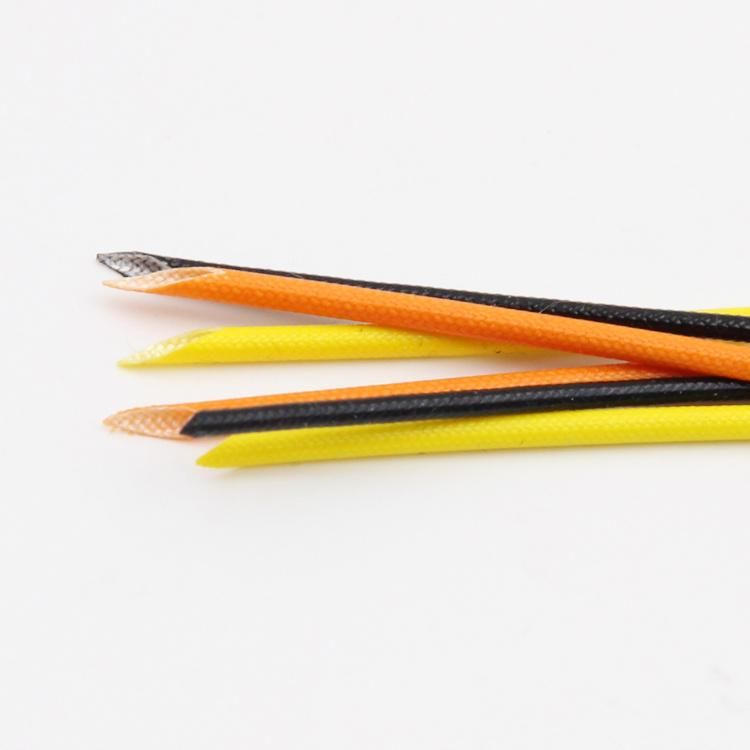

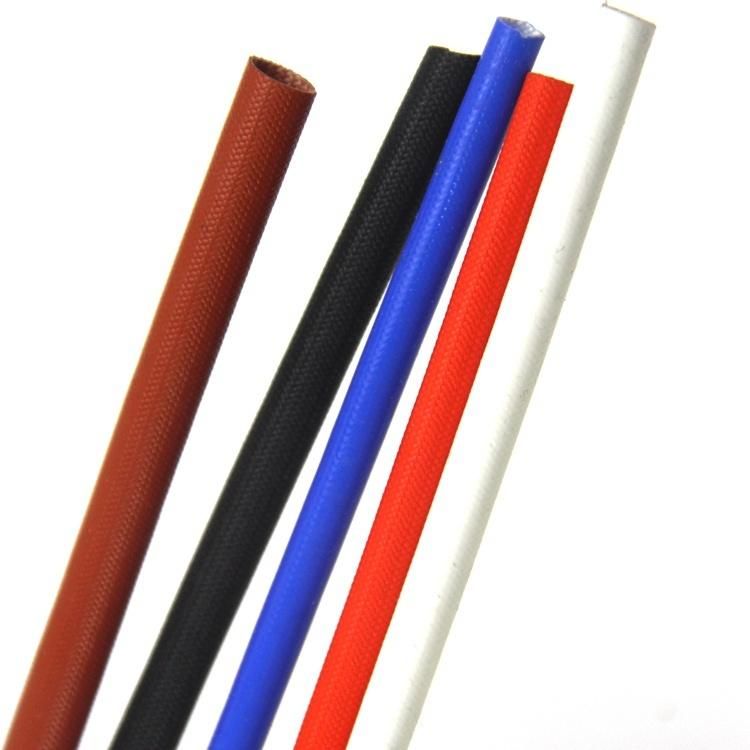

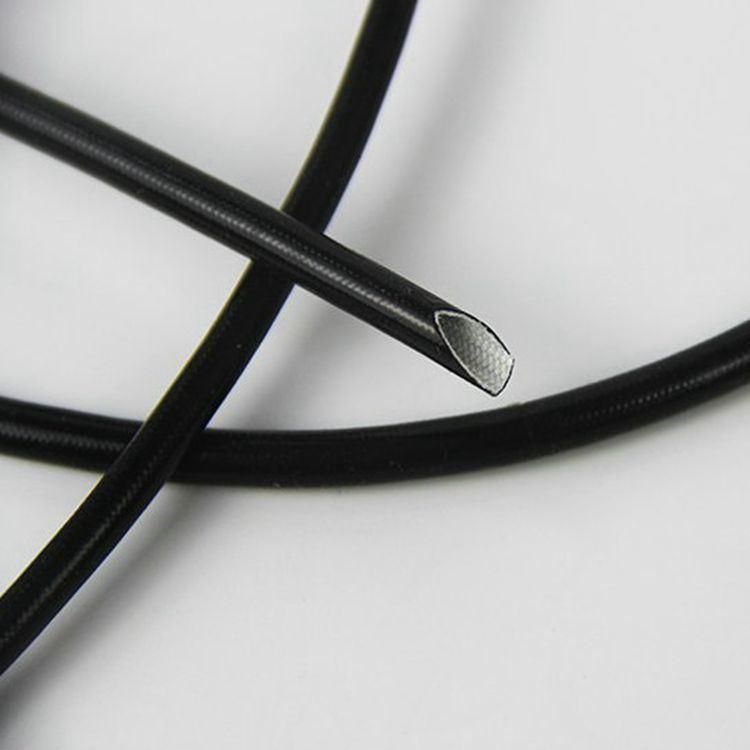

Silicone Fiberglass Flexible Insulating Braided Hollow Tube

BS-FS Fiberglass Sleeving is treated at high temperature with a special kind of silicone
resin and possess outstanding a temperature classification of 200C. It also has excellent
properties of self-extinguishing and flexibility.


Product Features
1.Tight weaving and full coverage
2.Economical and Easy to install
3.Non corrosive, fungas resistant
4.High temperature , aging resistant
5.Flexible and Soft
6.Self - extinguishing
7.High insulation
8.ROHS, UL, CSA Certification



Application
These sleeves are widely used for supplementary insulation on transformer, motor, generator and resistor leads
etc.


Technical data

Sleeving material	Fiberglass fiber
Coating material	Silicone resin
Operating range	-60C-+200C
Breakdown voltage	1.2kV-4.0kV
Flammability	VW-1
Standard color	White
Certificate	UL, CSA, RoHS
Cutting tool	Cutting machine, Scissors

Datasheet

Part No.	I.D (I)	Wall thickness (T)	Packaging (L)
BS-FS0.8	0.80	0.30	100m/roll
BS-FS1.0	1.00	0.30	100m/roll
BS-FS1.5	1.50	0.30	100m/roll
BS-FS2.0	2.00	0.35	100m/roll
BS-FS2.5	2.50	0.35	100m/roll
BS-FS3.0	3.00	0.35	100m/roll
BS-FS4.0	4.00	0.40	100m/roll
BS-FS10.0	10.00	0.50	50m/roll
BD-FS12.0	12.00	0.50	50m/roll
