Cable Tray Us Cable Tray CE Certificate Customized Galvanized Steel Perforated Cable Tray Aluminum Cable
HEBEI INNOVAT BUILDING MATERIALS GROUP CO., LTD- Certification：SGS
- Hole：with Hole
- Feature：Easy Installation, Light Weight, Dustproof, Corrosion Resistance
- Surface Treatment：Hot Galvanizing
- Material：Carbon Steel
- Type：Channel
Base Info
- Model NO.：Cable Tray
- Length：2-6m
- Transport Package：Pallet,Wooden
- Specification：width 50 mm - 1200 mm
- Origin：China
- HS Code：730120
Description

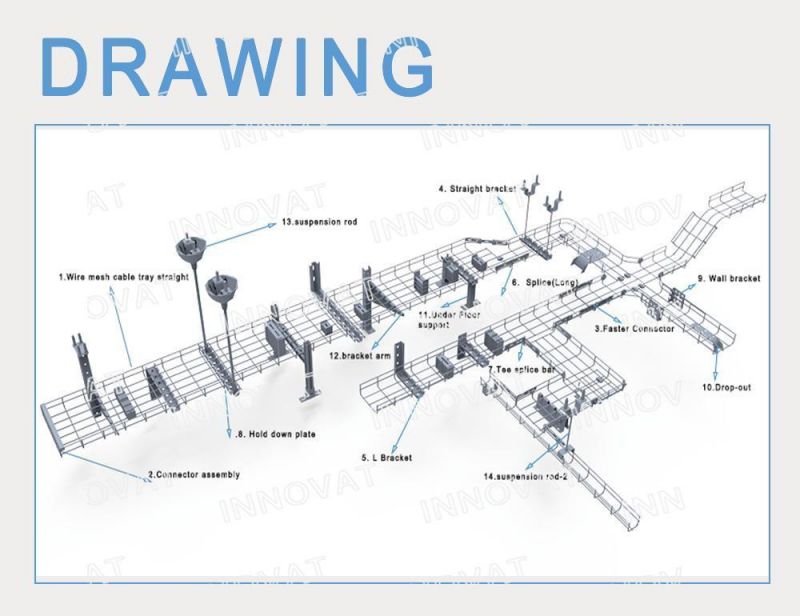

Main Parameter of Hot Dipped Galvanized Wire Mesh Cable Tray:Material Surface Finishing Thicknss of coating Application of environment Q235 steel Electro Zinc Plating ≥12µm Indoor Q235 steel Hot dip Galvanized >60µm Indoor,Outdoor Q235 steel Powder Coating >60µm Indoor SS304 Acid washing N/A Indoor,Outdoor SS316 Acid washing N/A Indoor,Outdoor,High Corrosion occasions SS316L Acid washing N/A Indoor,Outdoor,High Corrosion occasions Dimension Range Width 50-1000mm Height 25-200mm Length 300-6000mm Diameter of steel wire 4mm,5mm,6mm 1.Wire mesh cable tray straight 2. Connector assembly 3.Faster Connector 4. Straight bracket 5. L Bracket 6.Splice(Long) 7.Tee splice bar 8. Hold down plate 9. Wall bracket 10.Drop-out 11.Under floor stand 12.bracket arm 13.suspension rod 14.suspension rod-2
Increased safety-Unique construction ensures the tops of trays are rounded and smooth to protect installers and cables from cuts.
Flexible pathway-Tray can be cut and formed into turns and transitions using standard splices, simplifying design and components selection.
Fast installation-A range of fast-connecting splices and supports speedy assembly and installation.
Electrical continuity-Zinc plating allows bonding through splice connections for electrical continuity.
High corrosion resistance-Electro/Hot galvanised finish is also available

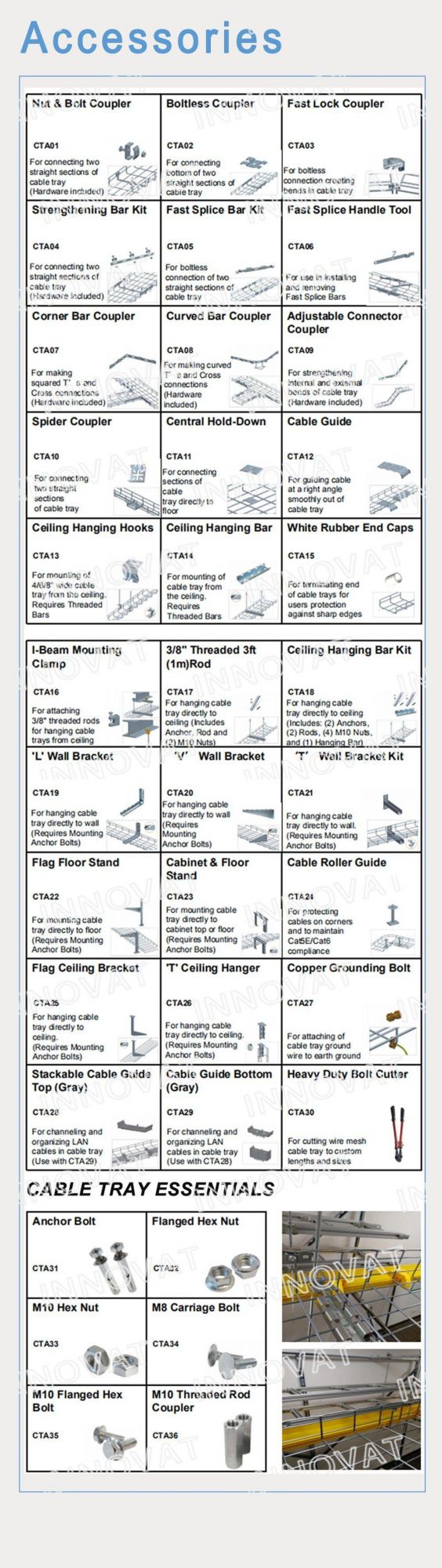

Wide range of accessories-Allows quick interface with electrical fittings and superior support when transitioning network cables.
Increased safety-Unique construction ensures the tops of trays are rounded and smooth to protect installers and cables from cuts.Flexible pathway-Tray can be cut and formed into turns and transitions using standard splices, simplifying design and components selection.
Fast installation-A range of fast-connecting splices and supports speedy assembly and installation.
Electrical continuity-Zinc plating allows bonding through splice connections for electrical continuity.
High corrosion resistance-Electro/Hot galvanised finish is also available
Wide range of accessories-Allows quick interface with electrical fittings and superior support when transitioning network cables.
