2 Holes Cable Gland M32 Black Grey Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Black , Light Grey
  • IP Rating：IP68
  • Material：Nylon
  • Type：Straight Head

Base Info

  • Model NO.：M , PG , NPT , G
  • Cable Gland：Multi-Holes Gland
  • Main Material：Nickel-Plated Brass
  • Claw：Nylon (PA66)
  • Seal & O Ring：Rubber
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

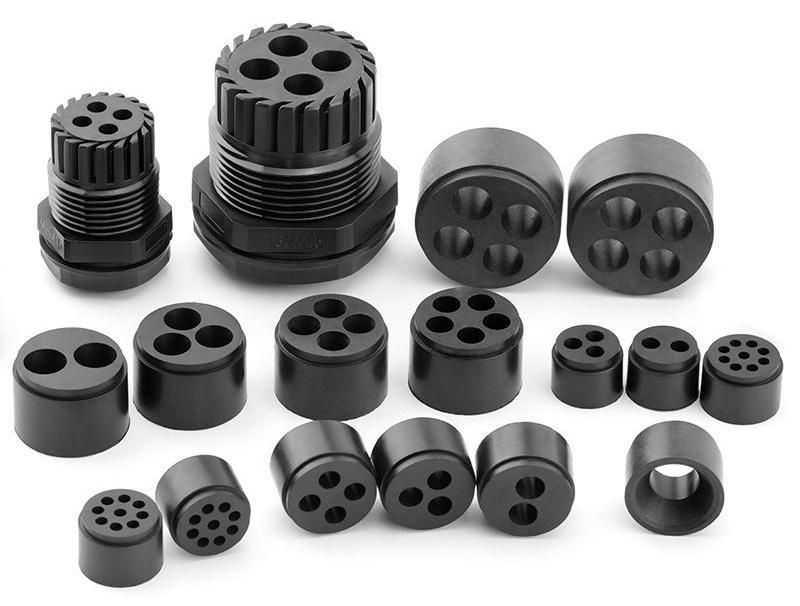

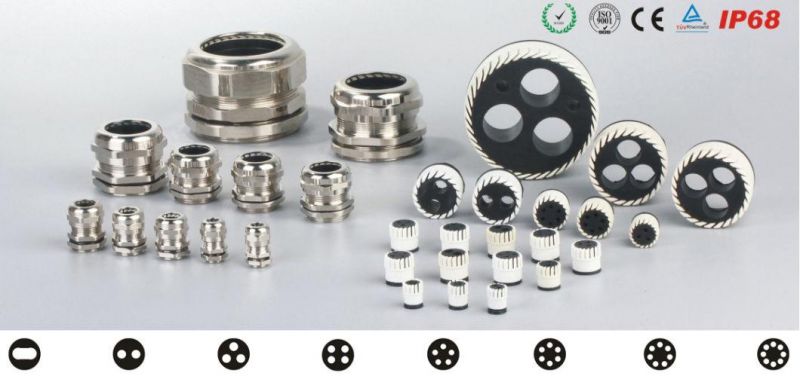

Product Name:Multi-holes cable glandMain material:Nickel-plated brassStandard size:M12-M32; PG7-PG29Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is available2 Holes Cable Gland M32 Black Grey Gland2 Holes Cable Gland M32 Black Grey GlandAG item

Flat

(mm)

2 holes

(mm)

3 holes

(mm)

4 holes

(mm)

5 hols

(mm)

6 holes

(mm)

7 holes

(mm)

8 holes

(mm)

M12x1.5/3-1.22.6-1.22.3-1////M16x1.5/4-1.62.6-1.22.3-12.5-12-1//M18x1.56x103.5-24-1.63-1.22.6-1.52.2-1 / /M20x1.55x11.55.3-1.55-2 4.2-1.7 3-1.23-1.2 3-1.23-1.2M22x1.56x146-2.53.5-1.5 4.5-2 // / /M25x1.56x148.7-48-45-2  3.5-1.53.5-1.53.5-1.5 3.5-1.5M27x1.57x188.7-4.55-2 7-3.53.5-1.53.5-1.53.5-1.5 3.5-1.5M32x1.58x225-1010-59-4.5 8-4 7-3.5 6-3/PG7/3-1.22.6-1.22.3-1 ////PG9/4-1.62.6-1.2 2.3-12.5-1  2-1 //PG116x103.5-24-1.6 3-1.2 2.6-1.5 2.2-1 //PG13.55x11.55.3-1.53.5-1.5 4.2-1.74.2-1.7  ///PG166x146-2.53.5-1.5 4.5-2 ////PG217x188.7-4.55-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5/

More size information, kindly contact us directly..
We provide customization service !

2 Holes Cable Gland M32 Black Grey GlandLocknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
2 Holes Cable Gland M32 Black Grey Gland2 Holes Cable Gland M32 Black Grey Gland                                                                                    Company Show2 Holes Cable Gland M32 Black Grey Gland2 Holes Cable Gland M32 Black Grey Gland

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.2 Holes Cable Gland M32 Black Grey Gland2 Holes Cable Gland M32 Black Grey Gland
