• Model NO.：BS-PA003
• Function：Cable Protecting Sleeve
• Operating Range：-60°c±160°c
• Melt Point：256±10°c
• Flammability：VW-1
• Standard Colour：Black and Grey
• Certificate：RoHS
• Cutting Tool：Hot Knife
• Advantage：Quick and Easy Installation
• Available Color：64 Colors Available, Accorcing to Our Color Guide
• Sample Lead Time：as Usual 3-7 Working Days
• Production Lead Time：7~12days
• Transport Package：1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm-76mm Flat Width
• Trademark：EKO
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Part No Size Expanded Range(mm) Packing (L)  Flat width(mm) Min(I) Max.(O) M/spool BS-PA003 3 1 6 1000 BS-PA006 6 3 9 500 BS-PA008 8 516 350 BS-PA010 10 719 350 BS-PA012 12 824 300 BS-PA016 161027 250 BS-PA019 201430 200 BS-PA025 251835 200 BS-PA032 322050 150 BS-PA038 383060 100 BS-PA045 453575 100 BS-PA050 504080 100 BS-PA064 6445105 100 BS-PA076 7664120 100
Product feacture
1. Economical & Quick and Easy To Install
2. Resists Gasoline, Chemicals & Cleaning Solvents
3. Expands Up to 150% of Initial Diameter
4. Cut Cleanly & Abrasion Resistant
5. Systematic Color Coding in Complex Cable and Wire Schemes
5. Continuous Operating Temperature of -60°C to 160°C
6. Melt Temperature of 256±10°C
7. Halogen Free, UL, ROHS, REACH, CSA Approval.

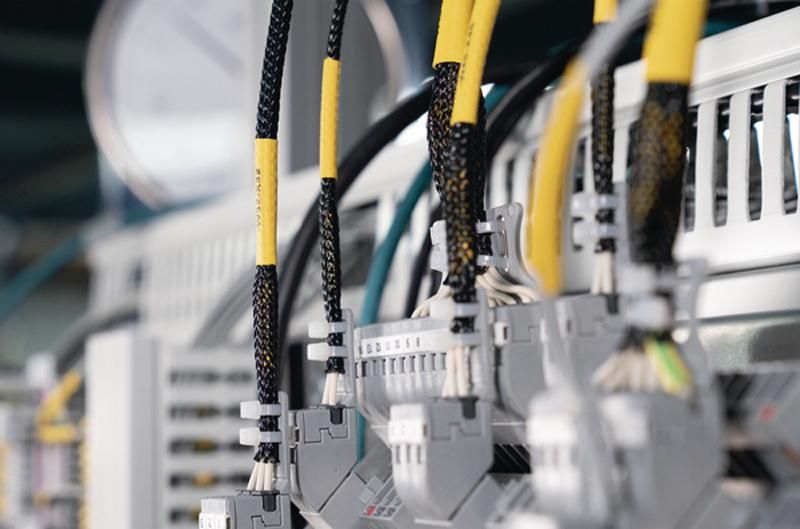

Application
Most commonly used to protect wire harnesses, cable assemblies, air conditioned pipes, fluid pipes in automotive, aerospace and military applications.

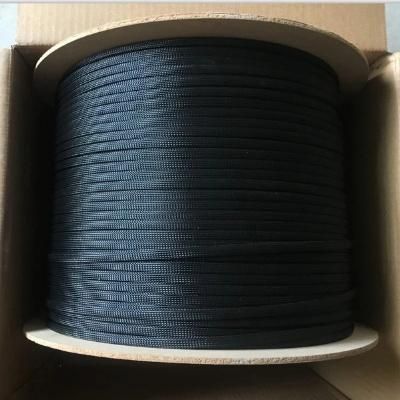

Packing



Customers' Review

Company information
