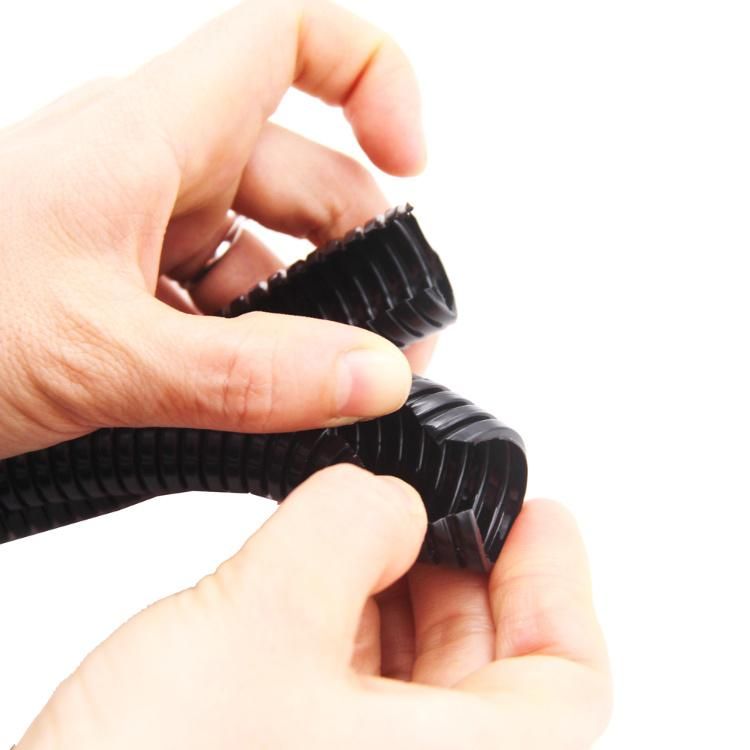

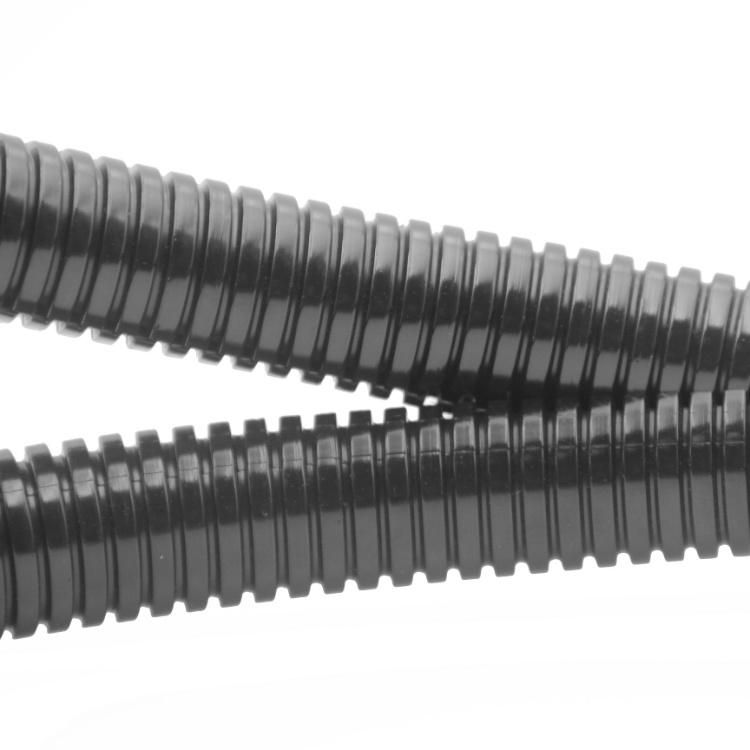

Double Slit Corrugated Conduits Divisible Cable Conduit Protection Tube
Xiamen QX Trade Co., Ltd.- Certification：UL, RoHS
- Color：Black
- IP Rating：IP50
- Material：PA,Fppds
- Type：Corrugated Pipe
- Temperature Range：-40° C to +120°
Base Info
- Protection Class：IP 54
- Tensile Strength：500 N
- Transport Package：200 M,Roll, 100m,Roll, 50m,Roll, 25m,Roll
- Specification：16-54mm
- Trademark：EKO
- Origin：Fujian, China
- HS Code：391729000
- Production Capacity：3000000 M,Month
Description
Data of Half surroundedPart No. Inner diameter Bending radius
(R±10%) Packing BS-CFCH-13.0 10.0mm 55 100m/roll BS-CFCH-15.8 12.0mm 65 100m/roll BS-CFCH-18.5 14.3mm 75 100m/roll BS-CFCH-21.2 17.0mm 95 100m/roll BS-CFCH-25.0 20.0mm 105 100m/roll BS-CFCH-28.5 23.0mm 115 50m/roll BS-CFCH-34.5 29.0mm 125 50m/roll BS-CFCH-42.5 36.0mm 150 50m/roll BS-CFCH-54.5 48.0mm 170 25m/roll BS-CFCH-67.2 56.0mm 190 25m/roll BS-CFCH-80.0 68.0mm / 25m/roll BS-CFCH-106 91.0mm / 25m/roll Part No. Inner diameter Bending radius
(R±10%) Packing BS-CFCW-14.0 8.8*13.5mm 55 200m/roll BS-CFCW-16.0 11.0*16.1mm 65 200m/roll BS-CFCW-20.0 12.8*18.7mm 75 100m/roll BS-CFCW-22.0 16.0*21.5mm 95 100m/roll BS-CFCW-25.0 20.2*25.7mm 105 100m/roll BS-CFCW-28.5 22.0*28.5mm 115 100m/roll BS-CFCW-32.0 23.9*31.3mm 125 100m/roll BS-CFCW-35.0 27.3*35.5mm 150 50m/roll BS-CFCW-42.0 32.5*43.2mm 170 50m/roll BS-CFCW-54.0 43.1*54.2mm 190 50m/roll BS-CFCW-80.0 67.0*79.8mm / 25m/roll BS-CFCW-100 87.5*102.5mm / 25m/roll
Appilation
Widely applied in the industries like Robots & automation,new energy automobile ,aviation,train & metro,railway
traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,
illuminating equipment and electrical insulating protection,etc.
Our Advantages
(R±10%)
(R±10%)
Appilation
Widely applied in the industries like Robots & automation,new energy automobile ,aviation,train & metro,railway
traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,
illuminating equipment and electrical insulating protection,etc.
