• Model NO.：QA-PPS-020
• Application：Insulators, Electrical Winding Insulation,
• Operating Range：-70°c±200°c
• Melt Point：285±10°c
• Flammability：UL 94V-0
• Standard Colour：Black and Grey
• Certificate：RoHS
• Cutting Tool：Hot Knife
• Size：3mm(1,8")~76mm(3′′)
• Available Color：64 Colors Available, Accorcing to Our Color Guide
• Sample Lead Time：as Usual 3-7 Working Days
• Production Lead Time：7~12days

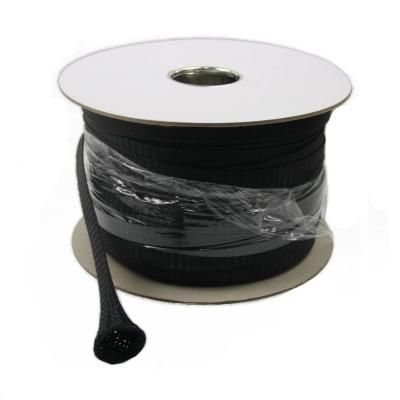

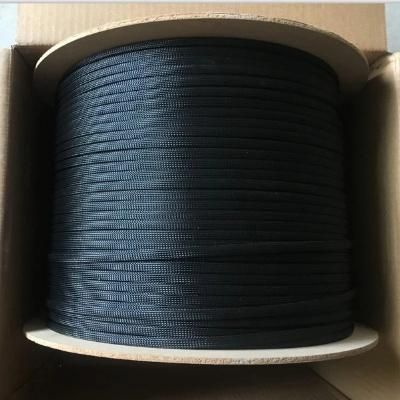

• Transport Package：1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm-76mm Flat Width
• Trademark：EKO
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Part No Size Expanded Range(mm) Packing (L)  Flat width(mm) Min(I) Max.(O) M/spool BS-PPS003 3 1 6 1000 BS-PPS006 6 3 9 500 BS-PPS008 8 516 350 BS-PPS010 10 719 350 BS-PPS012 12 824 300 BS-PPS016 151027 250 BS-PPS019 201430 200 BS-PPS025 251835 200 BS-PPS032 302050 150 BS-PPS038 403060 100 BS-PPS045 453575 100 BS-PPS050 504080 100 BS-PPS064 6445105 100 BS-PPS076 7664120 100
Product feacture
1. Economical & Quick and Easy To Install
2. Resists Gasoline, Chemicals & Cleaning Solvents
3. Expands Up to 150% of Initial Diameter
4. Cut Cleanly & Abrasion Resistant
5. Systematic Color Coding in Complex Cable and Wire Schemes
5. Continuous Operating Temperature of -70°C to 200°C
6. Melt Temperature of 285+(-)10°C
7. Halogen Free, UL, ROHS, REACH, CSA Approval.

Application

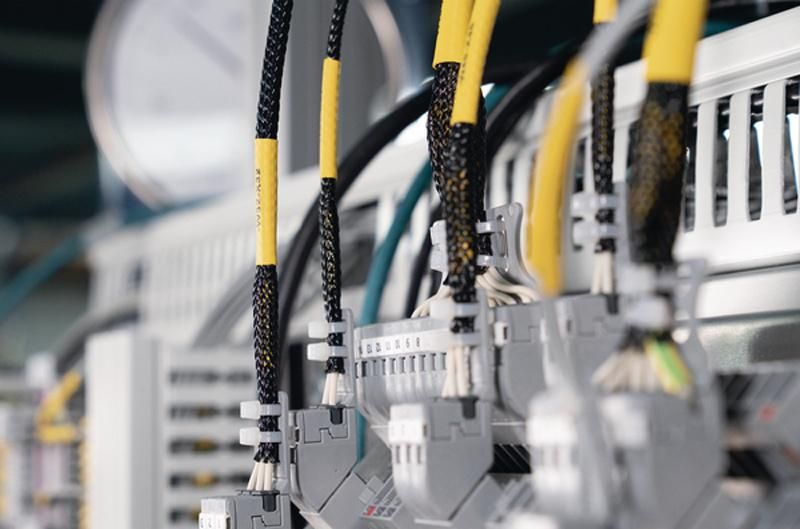

It is used mainly in the following fields:automotive,railways,aerospace,telecom and lilitary where are required high characteristics for flame-retardancy and high temperature resistance
