All Types Pg7 Pg9 Pg11 Pg13.5 Pg16 Pg19 Pg21 Pg25 Pg29 Pg36 Waterproof Metal Brass Cable Glands
Wenzhou Ruifeng Electric Co., Ltd.- Certification:ISO, CE
- Surface Treatment:Galvanised
- Color:White
- IP Rating:IP68
- Material:Brass
- Type:Torsion Resistance
Base Info
- Model NO.:PG
- Transport Package:Standard Export Packing
- Specification:Dia. 16mm, 18mm, 20mm, 24mm, 28mm
- Trademark:KW
- Origin:Zhejiang, China (Mainland)
Description

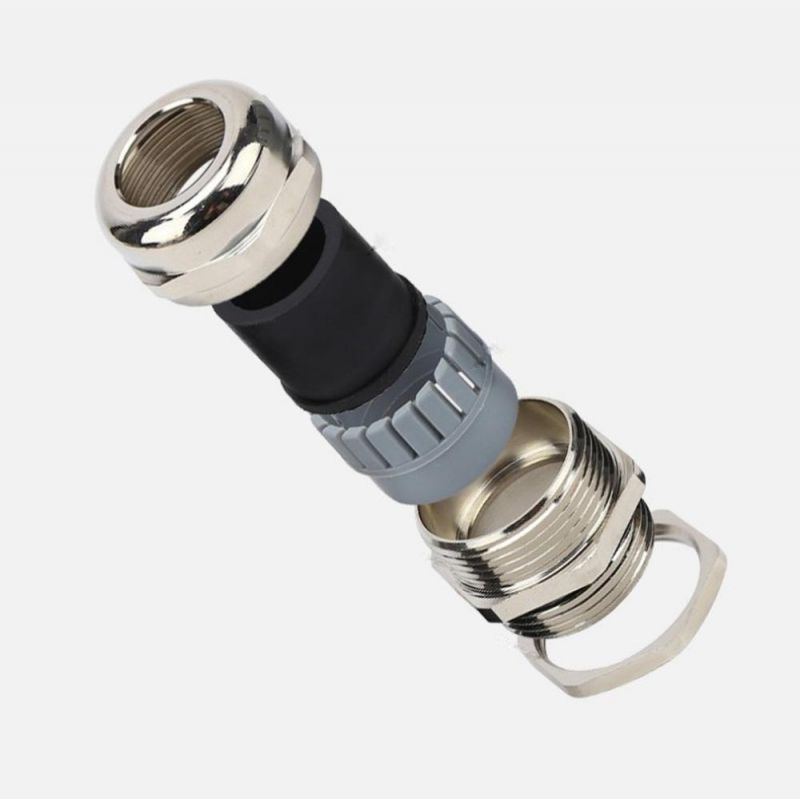

Metal cable gland - PG thread seriesProduct
Code Thread
specification Available cable range(mm) Thread O.D (mm) Mounting Hole Diamter (mm) Thread Length GL(mm) Spanner size (mm) KW-PG7 PG7 6.5-3 12.5 12.5-12.7 7 14 KW-PG7 PG7 5-2 12.5 12.5-12.7 7 14 KW-PG9 PG9 8-4 15.2 15.2-15.4 8 17 KW-PG9 PG9 6-2 15.2 15.2-15.4 8 17 KW-PG11 PG11 10-5 18.6 18.6-18.8 8 20/21 KW-PG11 PG11 7-3 18.6 18.6-18.8 8 20/21 KW-PG13.5 PG13.5 12-6 20.4 20.4-20.6 8 22 KW-PG13.5 PG13.5 9-5 20.4 20.4-20.6 8 22 KW-PG16 PG16 14-10 22.5 22.5-22.7 9 24 KW-PG16 PG16 12-6 22.5 22.5-22.7 9 24 KW-PG21 PG21 18-13 28.3 28.3-28.5 9 30 KW-PG21 PG21 16-9 28.3 28.3-28.5 9 30 KW-PG25 PG25 22-15 32 32-32.2 10 35 KW-PG29 PG29 25-18 37 37-37.2 11 40 KW-PG29 PG29 20-13 37 37-37.2 11 40 KW-PG36 PG36 33-25 47 47-47.2 12 50 KW-PG36 PG36 26-20 47 47-47.2 12 50 KW-PG42 PG42 38-32 54 54-54.2 13 57 KW-PG42 PG42 31-25 54 54-54.2 13 57 KW-PG48 PG48 44-37 59.3 59.3-59.5 14 64 KW-PG48 PG48 35-29 59.3 59.3-59.5 14 64
FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.
2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
A: It depends on order quantity. Generally, the delivery time will be within 15 to 30 days.
4. Package information
A:For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box, about 1000kg per pallet
5.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free
6.How to cantact us?
A:Send your inquiry details in the below, Click "send" now!
Our Services
Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's needs first, always
5.On call,24 hours a day,7 days a week
