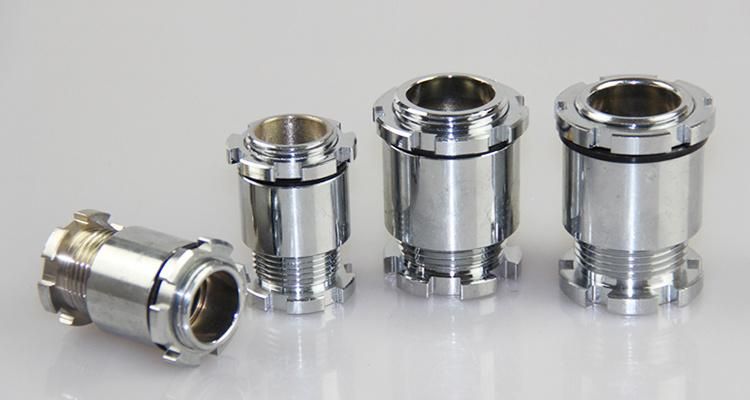

Types of Brass Material Cable Gland for Marine Ship

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M , PG , NPT , G
  • Cable Gland：Waterproof
  • Main Material：Nickel-Plated Brass
  • Claw：Nylon (PA66)
  • Seal & O Ring：Rubber
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

Product Name:Marine cable glandMain material:Nickel-plated brassStandard type:TJ8-TJ58 / JIS10-JIS75 / TH8-TH58Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableTJ Clamping type:Types of Brass Material Cable Gland for Marine ShipSizeCable range(mm)Thread O.D.(mm)Thread length(mm)TJ8-M16x1.55-7169TJ13-M20x1.56-122010TJ16-M27x1.511-152712TJ19-M30x1.514-183012....................TJ58-M71x248-577120

TH Soldiered type:Types of Brass Material Cable Gland for Marine Ship

SizeCable range(mm)Thread AGTH-85-7M16x1TH-136-12M20x1TH-1611-15M27x1.5TH-1914-18M30x1.5TH-2417-23M35x1.5...............TH5848-57M71x2

JIS standard type:Types of Brass Material Cable Gland for Marine Ship

AG itemCable Range(mm)Thread O.D.(mm)Thread Length(mm)JIS10-3/8''6-716.611JIS15-1/2''8-920.911JIS20-3/4''11-1226.411JIS25-1''15-1633.211...................JIS65-3''56-5887.8

14

More size information, kindly contact us directly..
We provide customization service !

Types of Brass Material Cable Gland for Marine ShipLocknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Types of Brass Material Cable Gland for Marine ShipTypes of Brass Material Cable Gland for Marine Ship                                                                                    Company ShowTypes of Brass Material Cable Gland for Marine ShipTypes of Brass Material Cable Gland for Marine Ship

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.Types of Brass Material Cable Gland for Marine ShipTypes of Brass Material Cable Gland for Marine Ship
