• Model NO.：BS-PET
• Flame Retardant：Normal
• Customized：Customized
• Condition：New
• Available Size：3mm~100mm Flat Width
• Classification：Pet Braided Expandable Sleeve Wiring Harness Cover
• Standard Color：Black, Grey
• Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm to 100mm Flat Width
• Trademark：QX
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

1. Material
Polyester2. Operating range
 - 50C - +150C3. Melt Point 250C+-5C
 4. Flammability
VW-15. Standard colour
 Black and grey6. Certificate

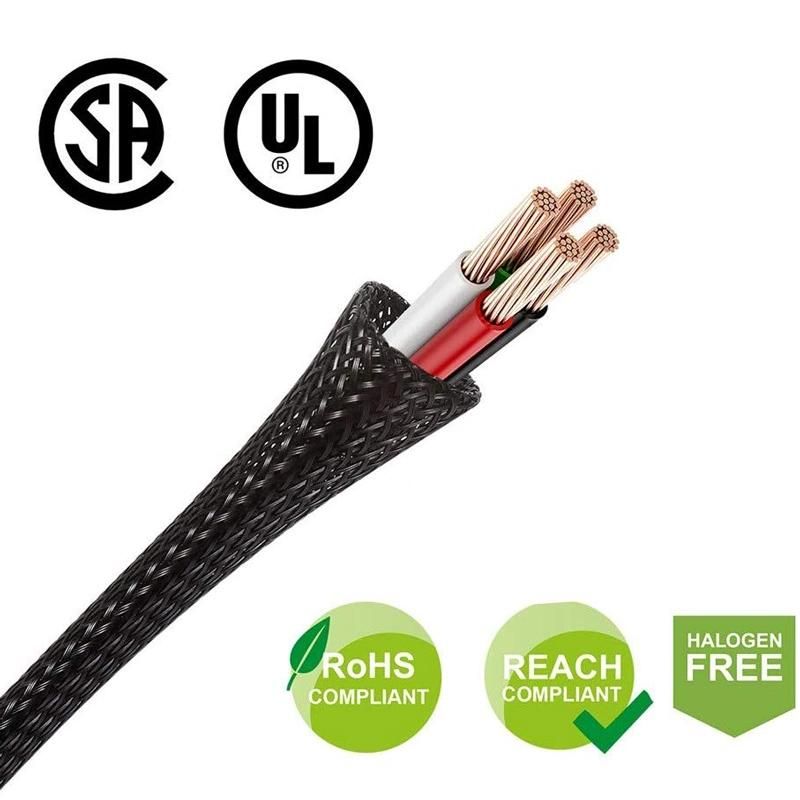

 UL, CSA, RoHS, PFOS, REACH, Halogen Free7. Cutting tool
Hot knife


Details of the image










Datasheet


Part No	Size	Expanded Range(mm)		Packing (L)
	Flat width(mm)	Min(I)	Max.(O)	M/spool
BS-PET003	3	1	6	1000
BS-PET006	6	3	9	500
BS-PET008	8	5	16	350
BS-PET010	10	7	19	350
BS-PET012	12	8	24	300
BS-PET016	16	10	27	250
BS-PET019	20	14	30	200
BS-PET025	25	18	35	200
BS-PET032	32	20	50	150
BS-PET038	38	30	60	100
BS-PET045	45	35	75	100
BS-PET050	50	40	80	100
BS-PET064	64	45	105	100
BS-PET076	76	64	120	100

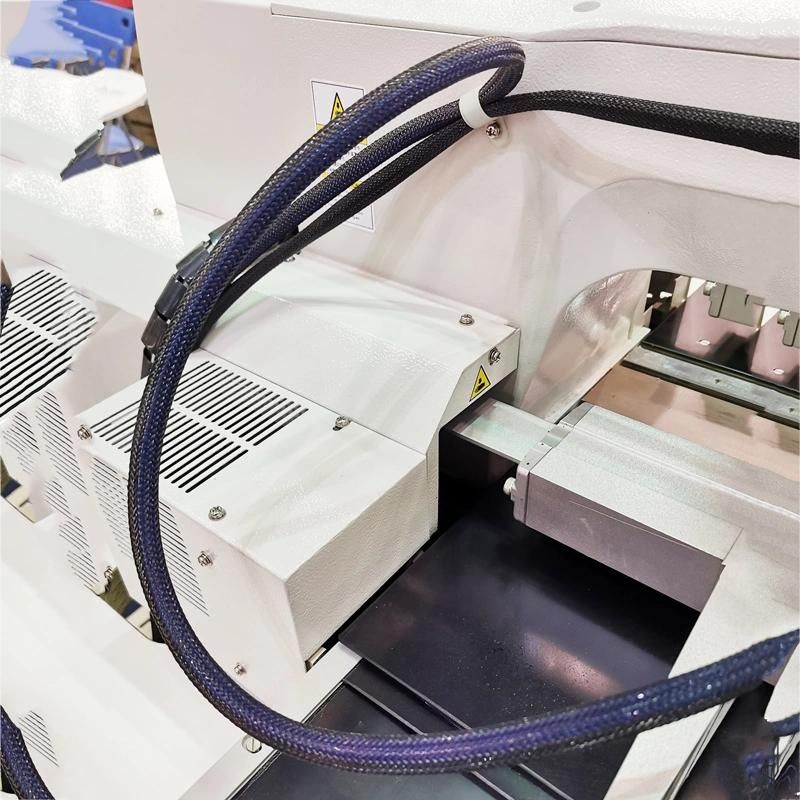

Application:

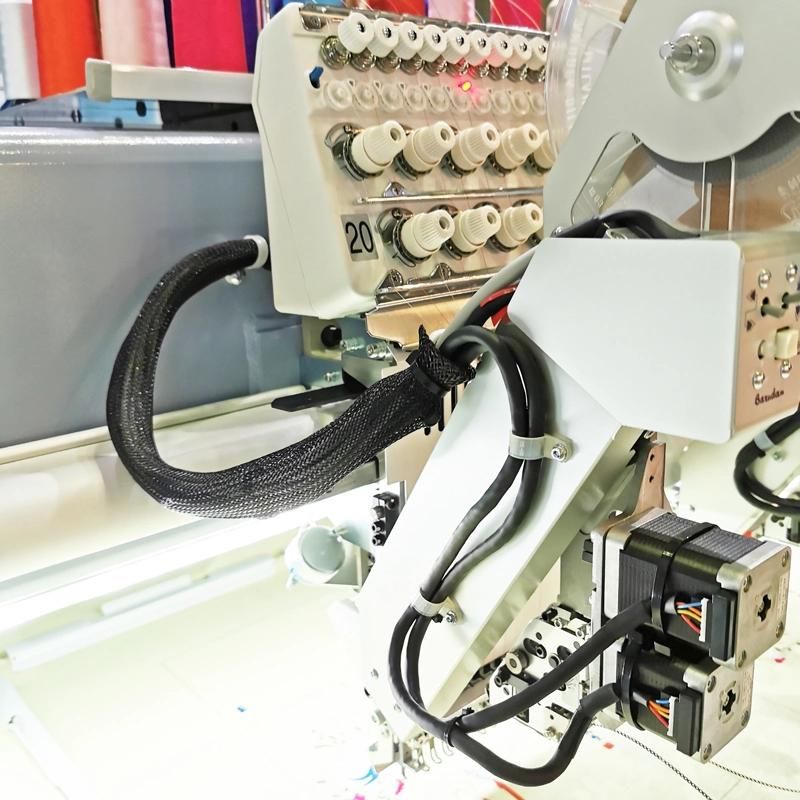

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment,
where is required an additional protection.
