RoHS Expandable Braided Nylon Cable Protector Wire Management Sleeve Flexible Conduit
Xiamen QX Trade Co., Ltd.- Certification：UL, RoHS, ISO
- Color：Black
- IP Rating：Normal
- Usage：Optical Cable, HDMI Cable
- Material：PA
- Type：Spiral Wrapping
Base Info
- Model NO.：BS-PA
- Item：RoHS Expandable Braided Nylon Cable Protector Slee
- Flame Retardant：Normal
- Customized：Customized
- Condition：New
- Style：Cable Sleeve
- Classification：Nylon Expandable Braided Sleeving

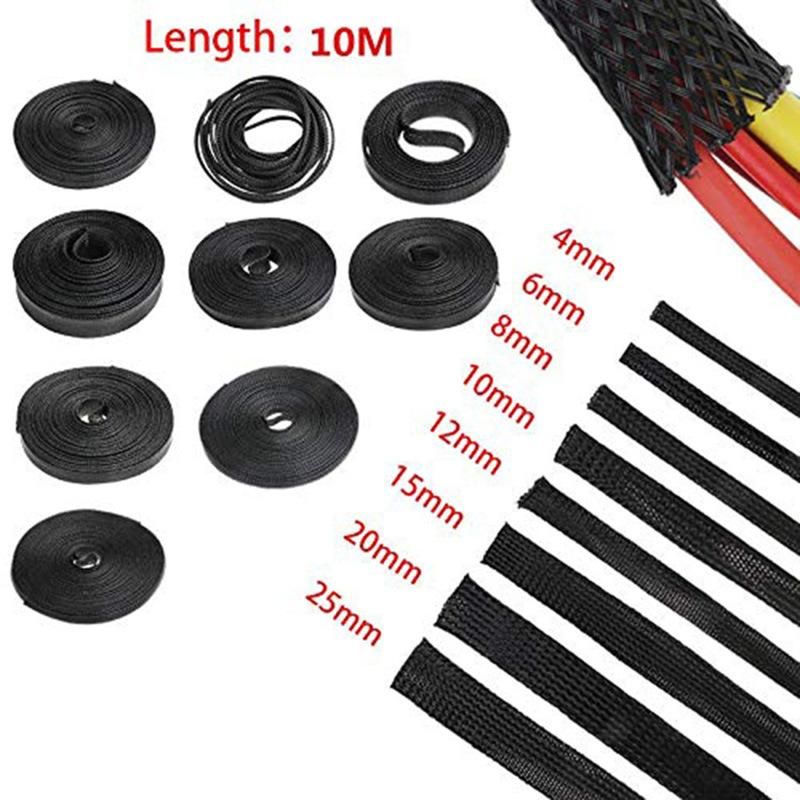

- Available Size：3mm~76mm Flat Width
- Standard Color：Black, Grey
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month Cable Sleeve Mesh Tube
Description
Technical data:
1. Material: Polyamide 6.6
2. Operating range: - 60ºC - +160ºC
3. Melt Point: 256ºC
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: RoHS
7. Cutting tool: Hot knife
Application:

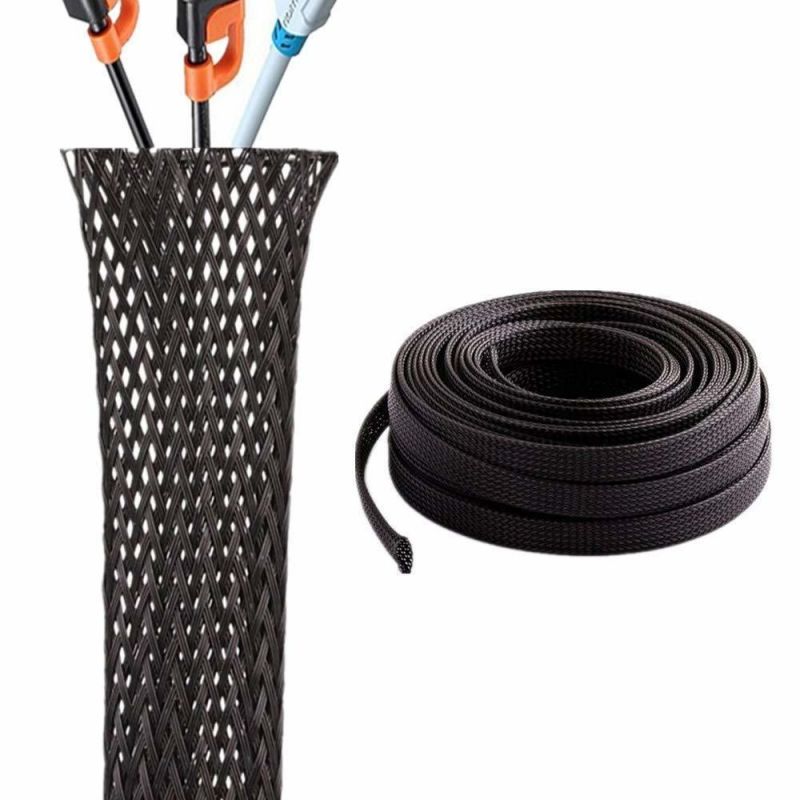

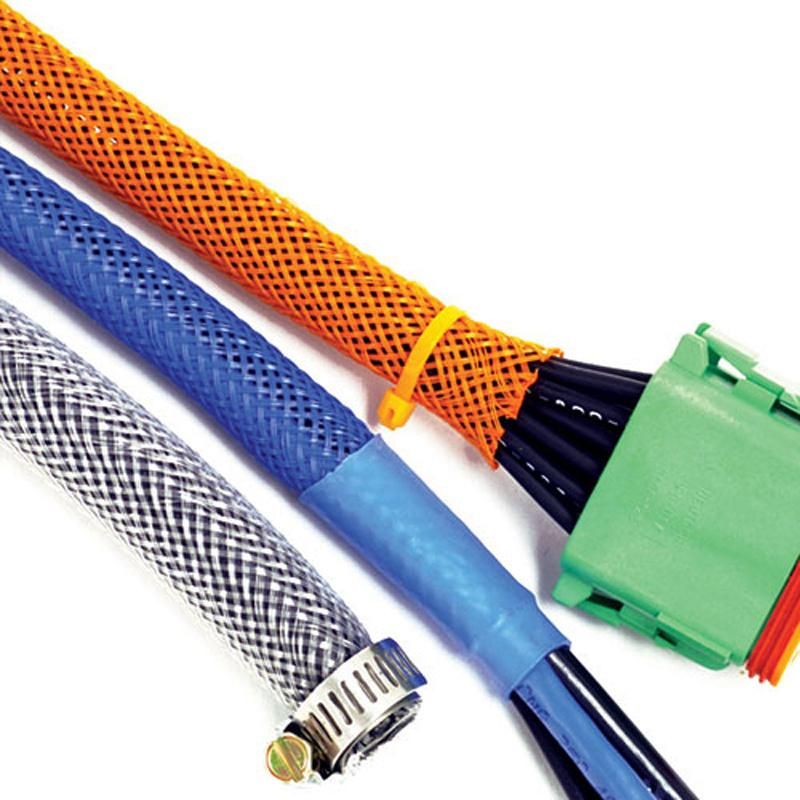

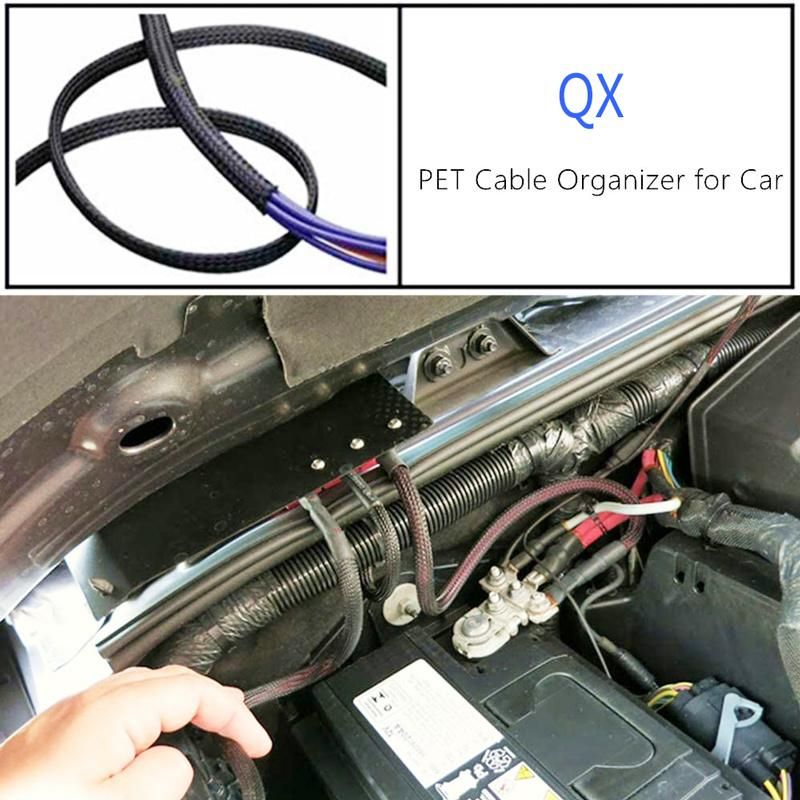

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
| Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PA003 | 3 | 1 | 6 | 1000 |
| BS-PA006 | 6 | 3 | 9 | 500 |
| BS-PA008 | 8 | 5 | 16 | 350 |
| BS-PA010 | 10 | 7 | 19 | 350 |
| BS-PA012 | 12 | 8 | 24 | 300 |
| BS-PA016 | 16 | 10 | 27 | 250 |
| BS-PA019 | 20 | 14 | 30 | 200 |
| BS-PA025 | 25 | 18 | 35 | 200 |
| BS-PA032 | 32 | 20 | 50 | 150 |
| BS-PA038 | 38 | 30 | 60 | 100 |
| BS-PA045 | 45 | 35 | 75 | 100 |
| BS-PA050 | 50 | 40 | 80 | 100 |
| BS-PA064 | 64 | 45 | 105 | 100 |
| BS-PA076 | 76 | 64 | 120 | 100 |
About us

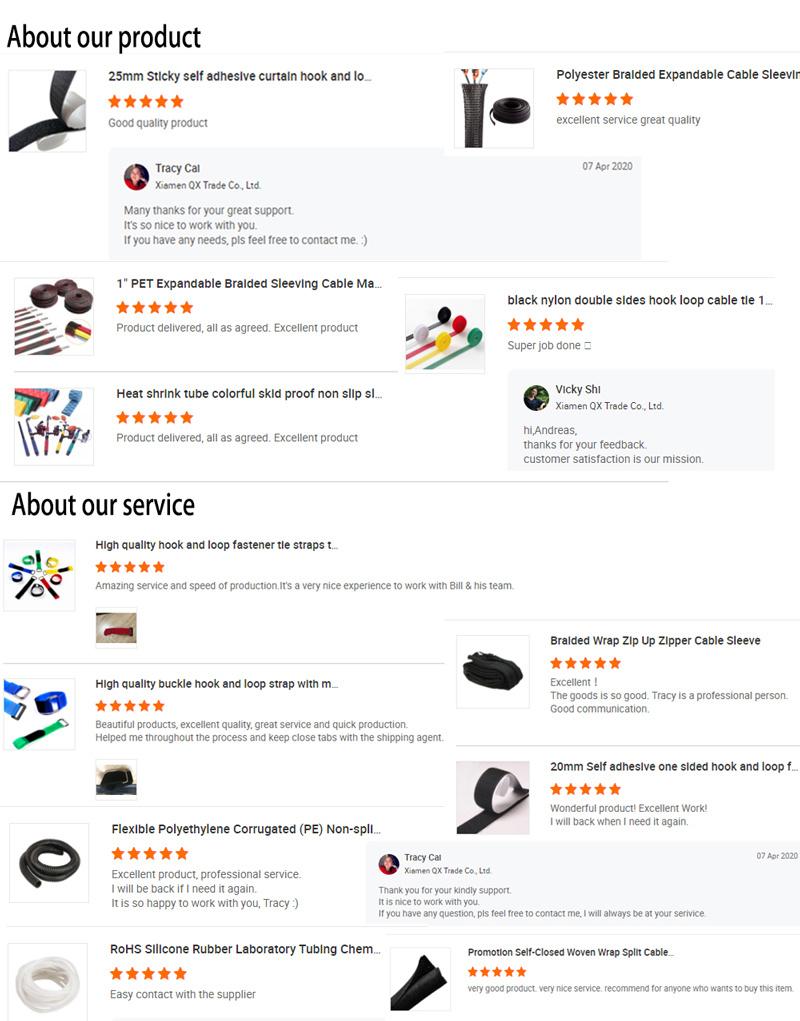

Good feedback from customer

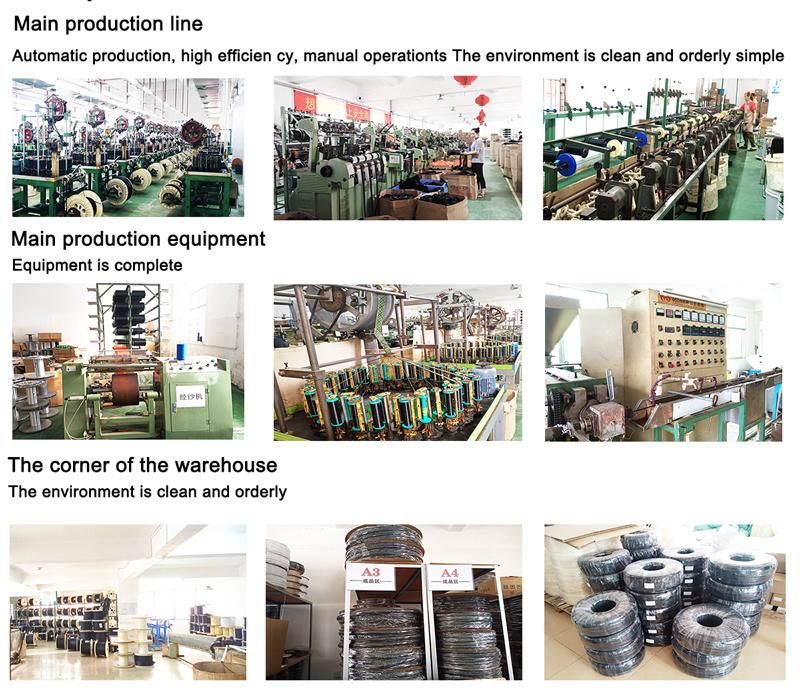

Our factory

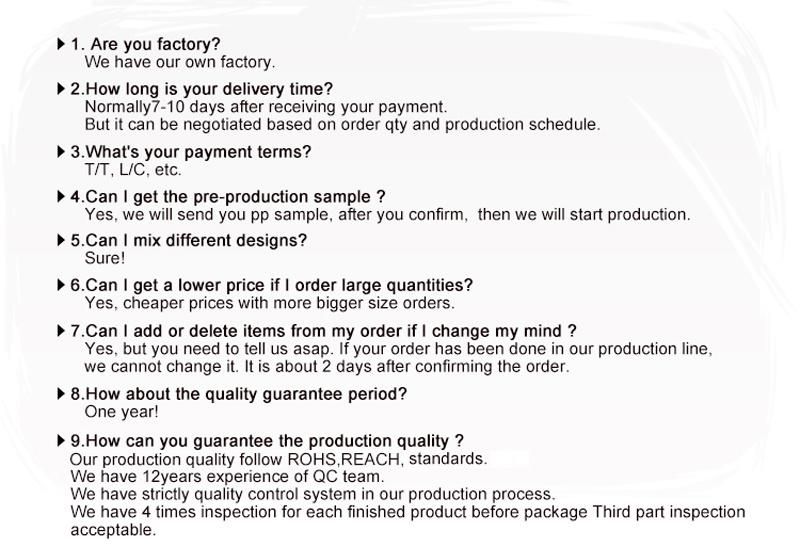

FAQ
