• Model NO.：BS-VCW
• Application：Insulators, Electrical Winding Insulation,
• Chemistry：Organic Insulation
• Thermal Rating：220 220
• Transport Package：200 M,Roll, 100m,Roll, 50m,Roll, 25m,Roll
• Specification：RoHS, Halogen Free
• Trademark：QX
• Origin：Made in China
• HS Code：4602900000
• Production Capacity：150, 000 Meter,Week Braided Cable Sleeving

Basic Info.

Model NO. BS-VCW Application Insulators, Electrical Winding Insulation, Chemistry Organic Insulation Thermal Rating 220 220 Transport Package 200 M/Roll, 100m/Roll, 50m/Roll, 25m/Roll Specification RoHS, Halogen Free Trademark QX Origin Made in China HS Code 4602900000 Production Capacity 150, 000 Meter/Week Braided Cable Sleeving

Product Description

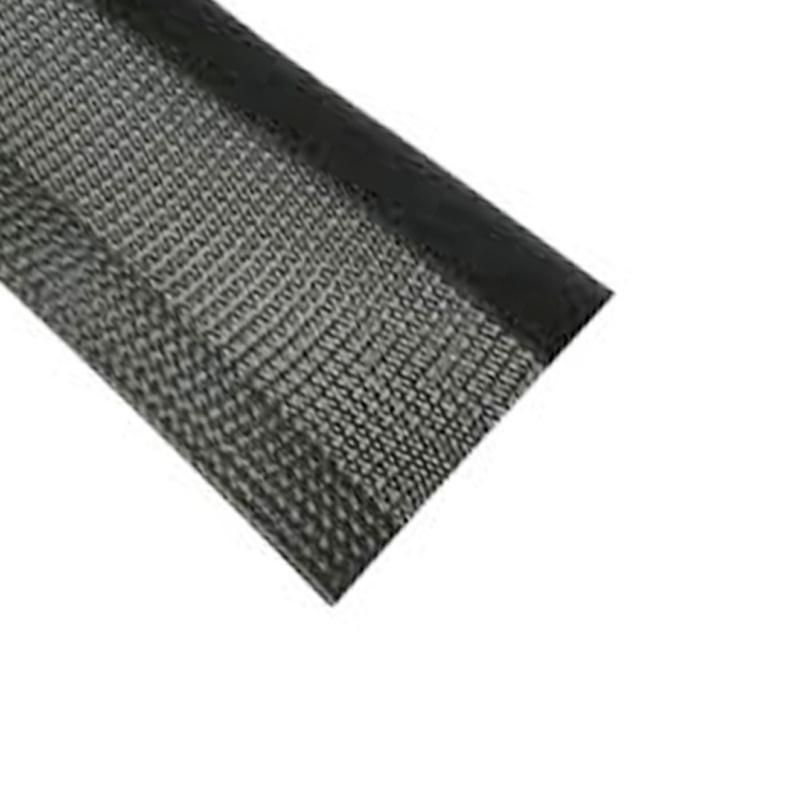

Reusable Side Entry Pet Expandable Braided Magic Tape Cable Sleeve

Product Feature:

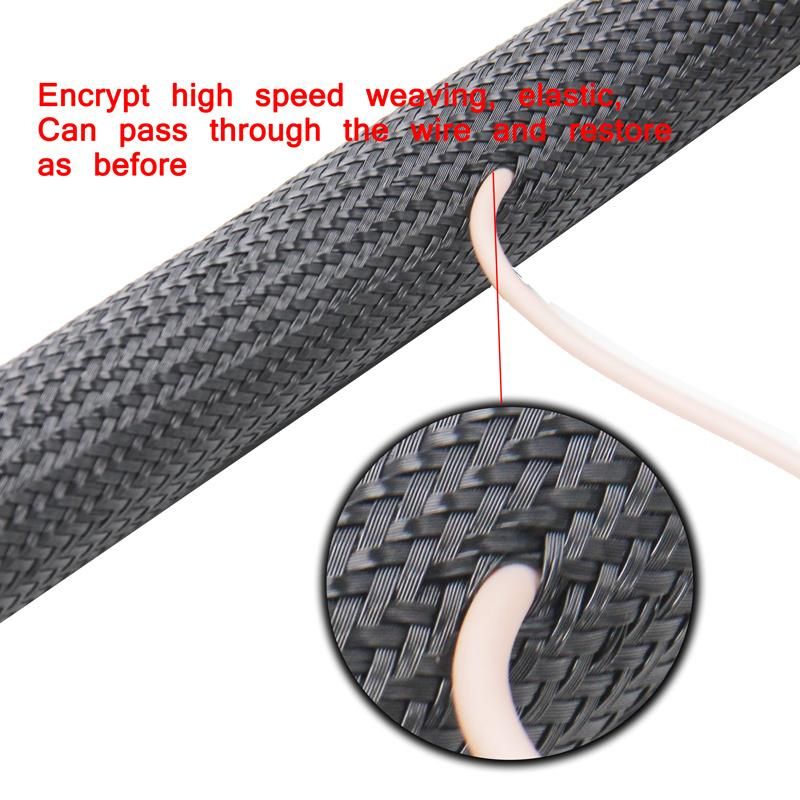

1.Flexible, Reused, Re-open.

2. Cable wire tidy/management. Insulative, Protective and Decorative.

3.Offer an additional protection against flame and abrasion.

4.install or uninstall very quickly and easily.

5. Flame Retardant PET Wrap, which offers added protection against fire with an organic flame inhibitor.

6. Size: Diameters from 1/2" to 2"

7. Standard color: Black, white.

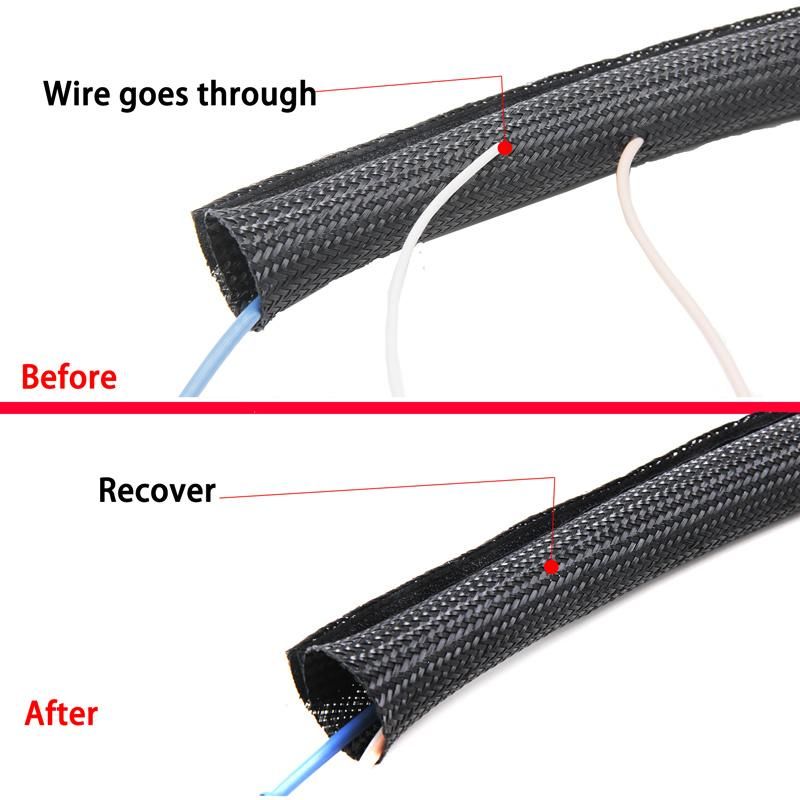

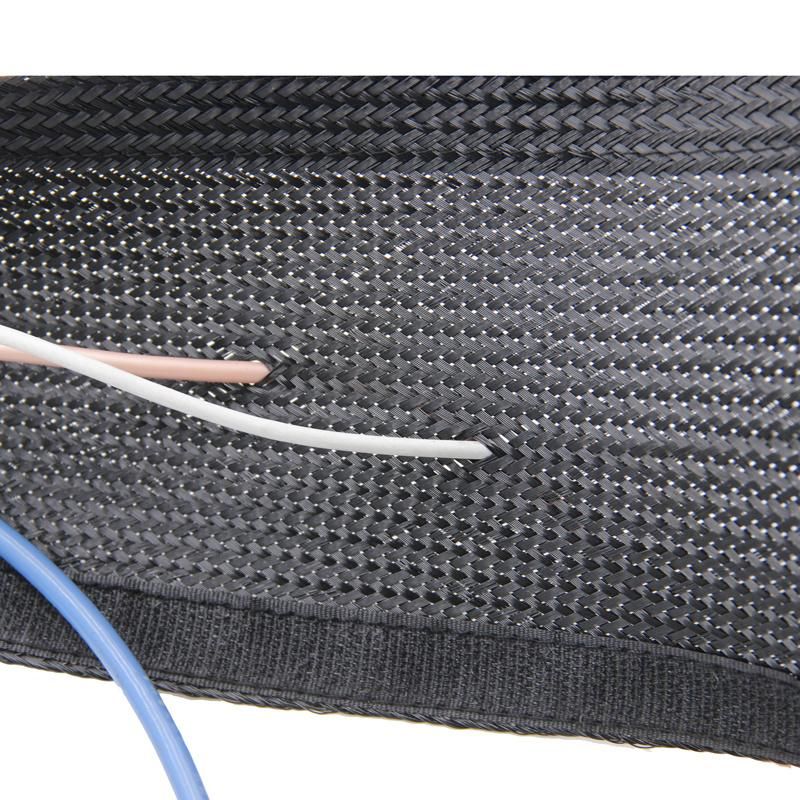

8. Provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving, but with the added feature of a hook and loop closure running the length of the material.

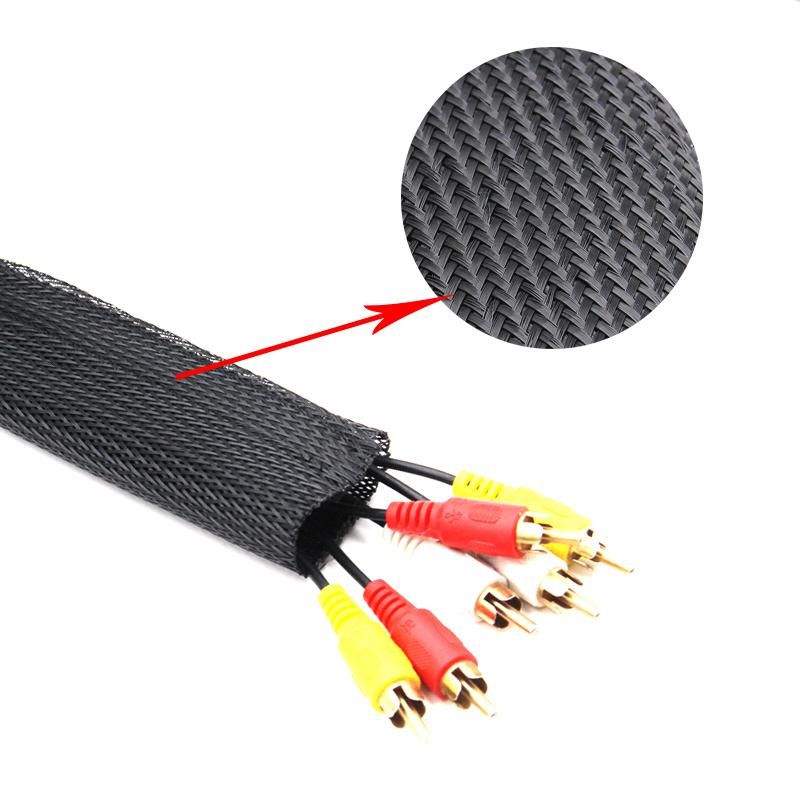

Pet expandable braided magic tape cable sleeves

Technical Data:
1.Wrap material: Polyester
2.Magic tape material: Polyamide
3.Operating range: -50C - +150C
4.Melt Point: 230C+-5
5.Flammability: VW-1
6.Standard colour: Black and Grey, White
7.Certificate: RoHS, Halogen free

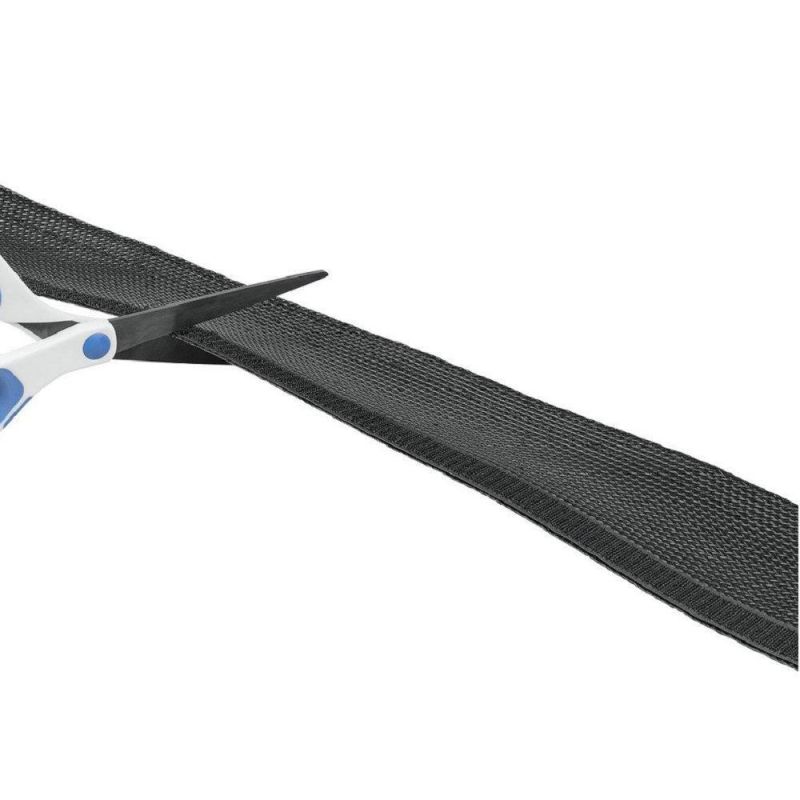

8.Cutting tool: Hot knife


Application:

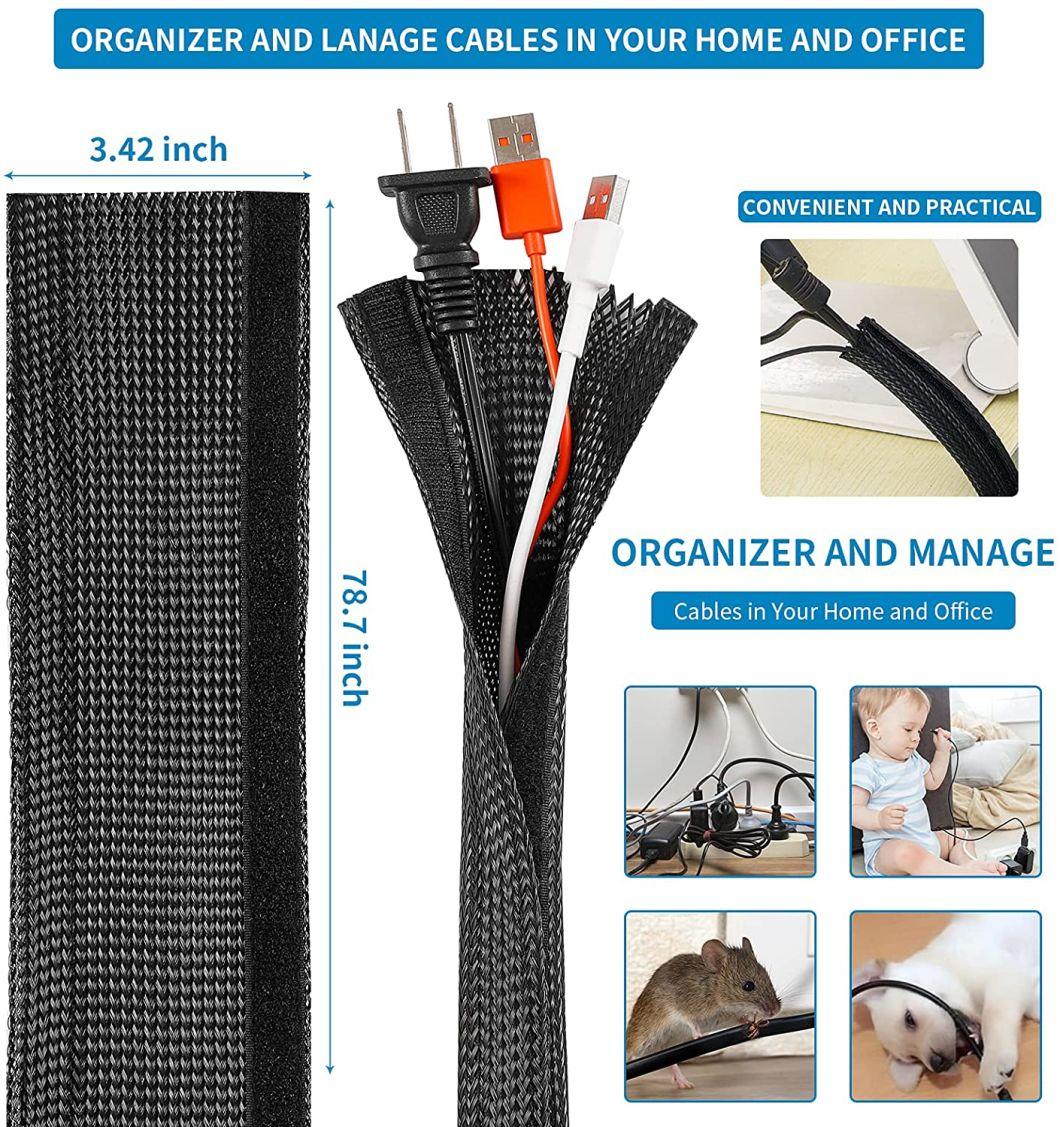

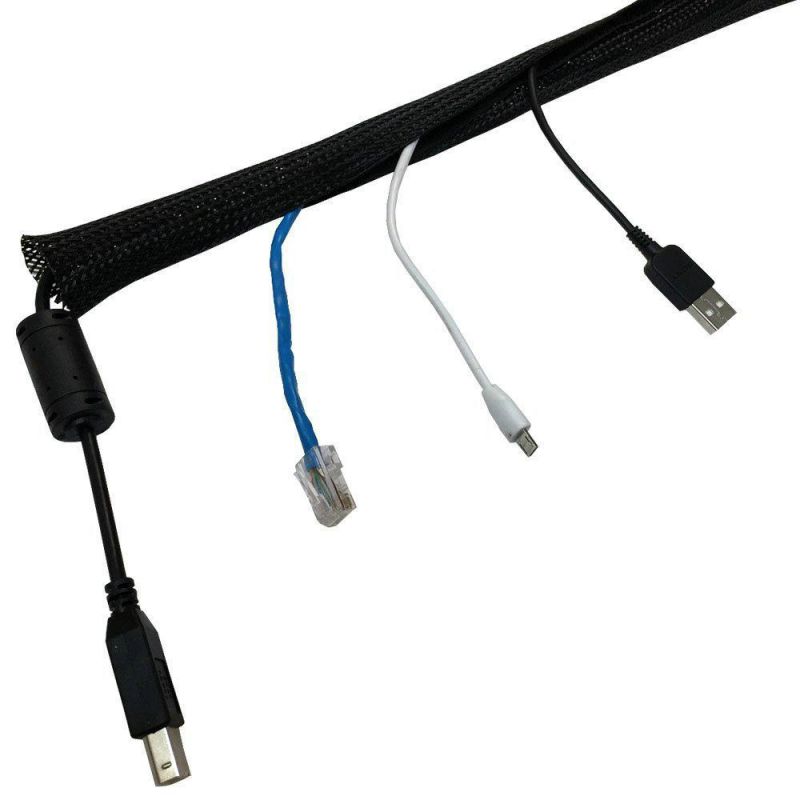

Magic tape braided wrap is widely used for management of A/V cables and power cord in home theater, computer, TV support and so on.

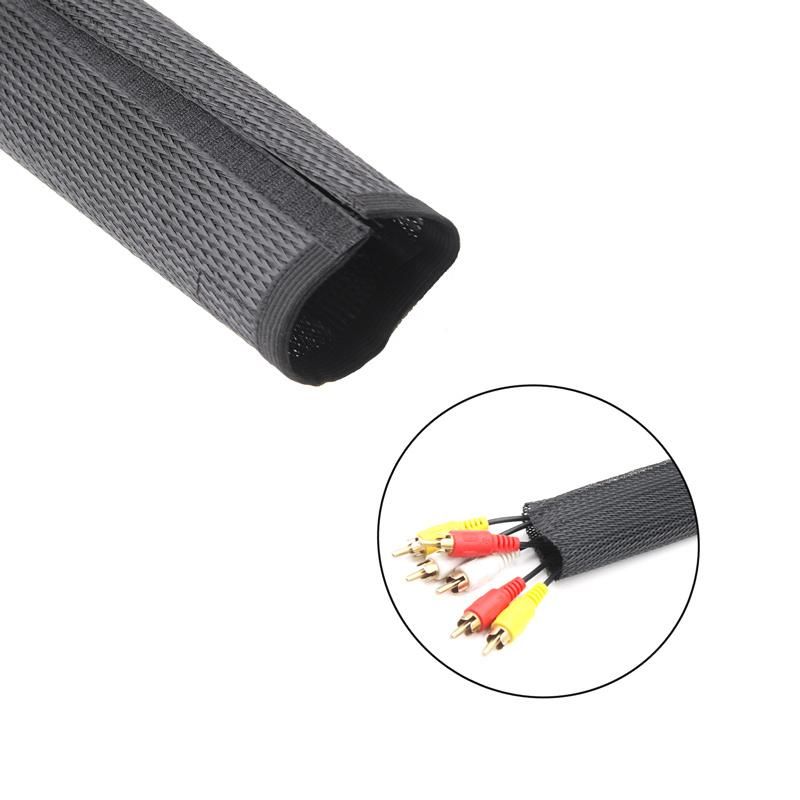

Pet Braided Magic Tape Cable Sleeve


Part No	Nominal Size(Flat width)	Magic Tape Width	Max Budle Dia	Packing(L)
BS-VCW013	13mm	10mm	8mm	25m/spool
BS-VCW019	19mm	10mm	12mm	25m/spool
BS-VCW032	32mm	20mm	20mm	25m/spool
BS-VCW051	51mm	20mm	32mm	25m/spool
BS-VCW064	64mm	20mm	40mm	25m/spool
