• Model NO.：ODF-24 cores

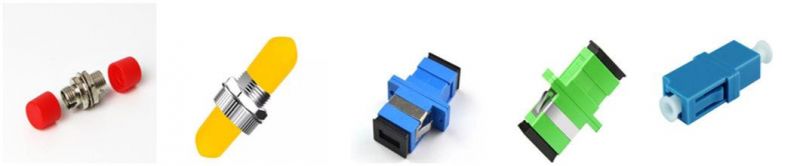

• Adapter Type：FC, Sc, St, LC
• Height：2u
• Transport Packag：Carton
• Application：Matching for FHD Series Enclosures
• Transport Package：Carton
• Specification：24cores
• Trademark：OEM
• Origin：China
• HS Code：85367000
• Production Capacity：500000PCS,Year

We support fiber capacity12/24/48/72/96/144 coresFiber PortFC, SC, ST and LCWorking temperature-10 °C ~ +40 °CStorage temperature-25 ° C ~ +55 ° CRelative humidity≤ 85% (+30 ° C)Atmospheric pressure70Kpa~106KpaNominal operating wavelength850nm, 1310nm, 1550nm Insertion loss ≤ 0.5dBReturn loss PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dBElectrical strength≥3KV(DC)/1min without breakdownInsulation resistance ≥1000MΩ/500V (DC)Life ≥1000 timesApplication rangeSmall and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station





Features

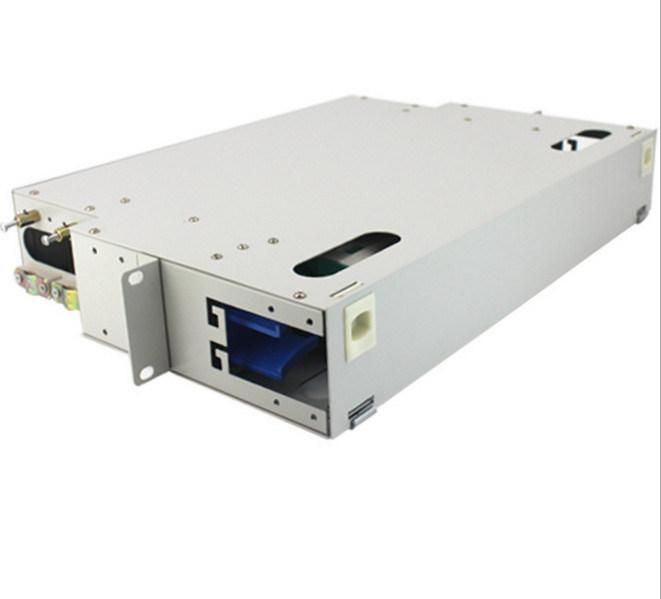

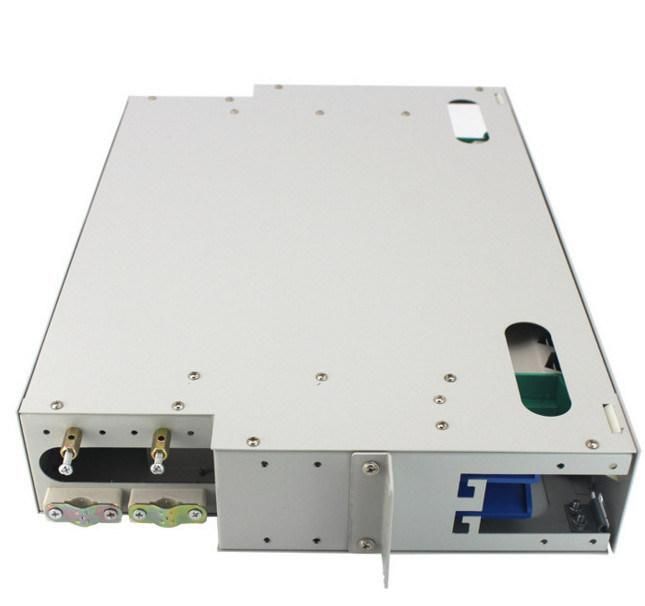

1.19' standard mounting, available for all kinds of rack and cabinet.
2. Metal, static electric plastic sprayed. Neat appearance, reasonable structure.
3. All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.

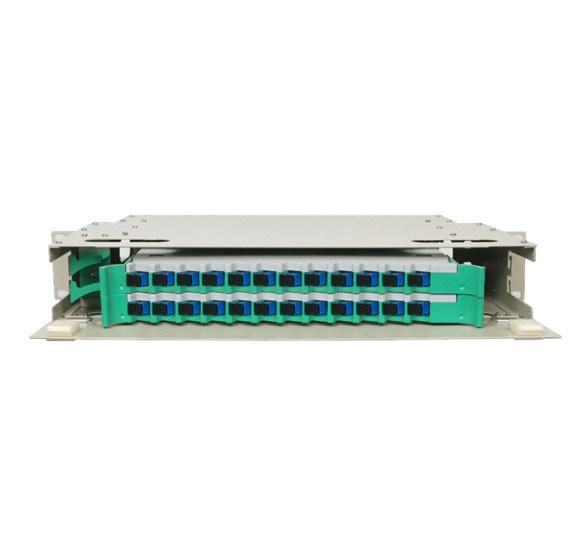

4. Designed as a drawer. This could be pulled out and pushed easily. A unit with splice and distribution integrated.
5. Suitable for both ribbon and bunch fiber cables.
6. Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30°oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.

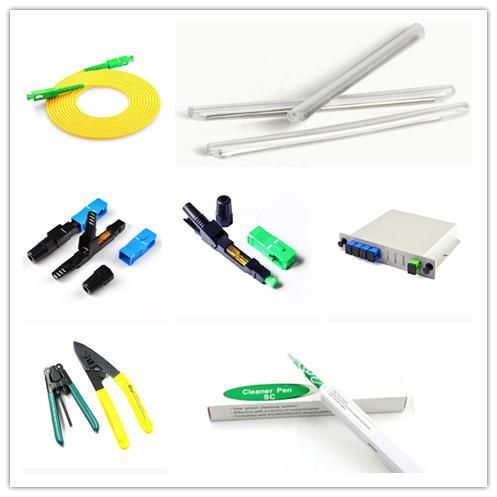

Related Products
